Sylvania 72530 LED/RT5/6/1500/HO/840

Sylvania 72530 LED/RT5/6/1500/HO/840 — UltraLED RT5/6 HO Recessed Downlight Kit, 17W, 1500 Lumens, 4000K, 0-10V Dimmable

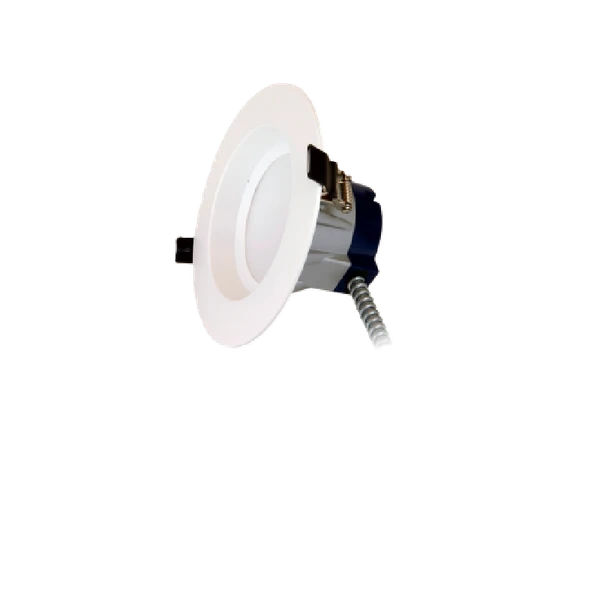

The Sylvania 72530 (LED/RT5/6/1500/HO/840) is an UltraLED RT5/6 HO LED recessed downlight kit for standard 5 in and 6 in frames, replacing 26W & 32W pin-based CFL luminaires. It delivers 1500 lumens at 17W (88 LPW) in 4000K on 120-277V input, with an integrated white trim and metal conduit adaptor included. It dims on 0-10V dimmers. Suitable for dry, damp and wet indoor or outdoor locations.

Technical Specifications

Product Overview

The SYLVANIA UltraLED RT5/6 HO is a universal-input 5 in and 6 in compatible LED recessed downlight kit for new construction and retrofit where pin-based compact fluorescent lamps were used. Installation is quick in most standard six-inch frames, with no warm-up time and instant-on light.

This item delivers 1500 lumens at 17W in 4000K. Rated life is 50,000 hours (L70).

The kit can be used in 8 in applications with the optional trim ring extender accessory, and meets California Title 24 (2008) High Efficacy requirements.

Compatible Applications

• Retrofit of pin-based CFL recessed downlights in 5 in and 6 in frames
• New construction
• Dry, damp and wet locations, indoor or outdoor
• Commercial, hospitality and retail interiors
• Suitable for 8 in applications using the optional trim extender

Before Ordering – Verify

• Confirm voltage — this item is 120-277V.
• Confirm the housing — designed for standard 5 in and 6 in CFL mounting frames (compatible housing list at sylvania.com/RT6).
• Dimming: compatible with the Leviton 0-10V dimmer IP710-DL.
• CRI: the datasheet lists the family at CRI >80 and >90 and does not tabulate CRI per item; confirm the CRI you need before ordering.
• Stand-alone kit installation (without frame) is recommended for hard ceilings; use a recessed incandescent frame for tiled ceilings.
• Compatible with the Philips Bodine ELI-S-20 emergency lighting micro inverter.
• Confirm case quantity — supplied 4 per case.

Safety and Handling Guidelines

• Turn off power at the breaker before installing, inspecting, or maintaining the fixture.
• Install and operate in compliance with the National Electrical Code and all applicable local codes.
• Follow the manufacturer installation instructions.
• Do not exceed the rated input voltage.
• Operate within the rated ambient range of -4°F to +104°F (-20°C to +40°C).

Compliance

• ETL Classified (cETLus); UL1598 Listed and Classified for stand-alone and retrofit applications.
• California Title 24 (2008) High Efficacy compliant.
• FCC Title 47 CFR Part 15 (Class B on 1500 lm, Class A on 900 lm).

Ordering Information

• Item Number: 72530
• Ordering Abbreviation: LED/RT5/6/1500/HO/840
• UPC: 046135725302
• Brand: Sylvania (LEDVANCE)
• Description: UltraLED RT5/6 HO downlight kit, 17W, 1500 lm, 4000K, 120-277V
• Case Quantity: 4
• Accessories (sold separately): retrofit trims 75095 (Dark Bronze), 75097 (Black), 75098 (Oil-Rubbed Bronze), 75099 (Satin Nickel); trim ring extender 75082; rough-in frame 71708

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
