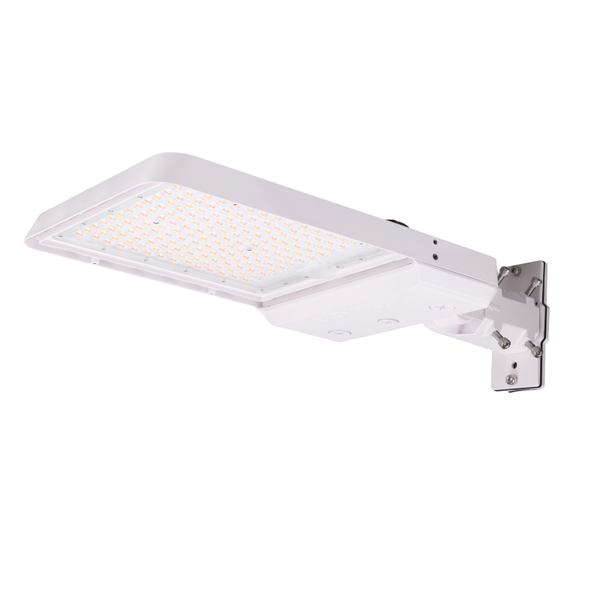

Sylvania AREAFLD6AS300HUVDSC2ADJWH LED Area Light OPTI-SELECT – 180/240/300W | 3000K/4000K/5000K | Up to 45,000 lm | 277-480V | White

Sylvania AREAFLD6AS300HUVDSC2ADJWH — OPTI-SELECT LED Area Light, 180/240/300W, 3000K/4000K/5000K, 277-480V, White

The Sylvania AREAFLD6AS300HUVDSC2ADJWH is a 180/240/300W field-selectable LED area light from the OPTI-SELECT series, offering 27,000/36,000/45,000 lm of selectable output, 3000K/4000K/5000K selectable color temperature, CRI >80, and adjustable Type 3/4/5 optical distribution in a single fixture. It operates on 277-480V input with 0-10V dimming and carries a 100,000-hour (L70 @ 25°C) rated life. Verify wattage, CCT, voltage, and distribution settings before ordering.

Technical Specifications

Product Overview

The Sylvania AREAFLD6AS300HUVDSC2ADJWH is part of the OPTI-SELECT Area Light platform, built around a single fixture body that covers a full range of wattages, color temperatures, and beam distributions without requiring separate SKUs for each configuration. An integrated switch lets the installer select between Type 3, Type 4, and Type 5 distribution patterns on site, and the same switch logic governs wattage and CCT selection – eliminating the lens swaps and screw removal that older area-light platforms required.

This white-finish, 277-480V unit is rated for 180/240/300W of selectable output and 3000K/4000K/5000K selectable color temperature, making it suitable for projects where the exact lighting requirements (footcandle targets, color rendering preferences, or local lighting ordinances) may not be finalized until installation. The FLEXMOUNT bracket accommodates slip fitter, wall, and round/square pole mounting from the same hardware set.

This configuration uses the standard 3000K/4000K/5000K (SC2) selectable CCT range and is DLC Premium listed, qualifying it for most utility rebate programs. Confirm rebate eligibility with the relevant utility program before quoting, as listings can change.

Compatible Applications

• Parking lots and surface parking areas
• Parking garage rooftops and open-deck structures
• Walkways, pathways, and pedestrian corridors
• Loading docks, storage yards, and industrial site perimeters
• General outdoor area and security lighting

Before Ordering — Verify

• Confirm the required input voltage matches your site's electrical service (277-480V for this SKU – do not assume compatibility with other voltage ranges in this series).
• Confirm the desired wattage tap and CCT setting (180/240/300W, 3000K/4000K/5000K) match your photometric plan before field-selecting.
• Confirm distribution type (T3, T4, or T5) needed for your layout; the switch is field-adjustable but should be set correctly at installation.
• Confirm finish (White) matches the rest of the site's fixtures and poles.
• If utility rebates are part of the project budget, confirm current DLC Premium listing status for this exact SKU, as SC15 (DarkSky) and SC2 configurations are listed differently.
• Confirm whether a photocell, sensor, or LEDVANCE LINK™ accessory is required and order separately if so – these are not included.

Safety and Handling Guidelines

• Disconnect power before installation or service.
• Install only in suitable outdoor wet-location applications; this fixture is rated IP65 but is not designed for submersion.
• Do not disassemble internal LED or driver components. There are no field-serviceable parts inside the optical or driver compartment.
• Allow the fixture to cool before handling after operation. Use qualified, licensed electrical personnel for mounting and wiring connections.
• Verify pole and bracket load ratings before mounting, particularly for multi-head configurations using bullhorn or tenon brackets in high-wind regions.

Compliance

• cULus Listed to UL1598 and CSA C22.2 No. 250 standards
• RoHS Compliant
• FCC Compliant
• IP65 Wet Location Rated; 3G vibration rated per ANSI C136.31
• DLC Premium – verify current DLC Qualified Products List (QPL) status before relying on this for utility rebate qualification
• DarkSky approval does not apply to this 3000K/4000K/5000K (SC2) configuration – the DarkSky-approved version uses the 1800K/2200K/2700K (SC15) CCT range

Ordering Information

• Brand: Sylvania
• Item Number: 66362
• Order Code: AREAFLD6AS300HUVDSC2ADJWH
• Wattage / CCT: 180/240/300W / 3000K/4000K/5000K
• Voltage: 277-480V
• Distribution: Adjustable T3/T4/T5
• Finish: White
• Lead time: Made to order – confirm current lead time with ADL Supply.
• Packaging: Sold individually unless otherwise noted.
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

For wholesale pricing, bulk availability, or help confirming the correct configuration for your project, contact ADL Supply at 1-800-235-3489.
