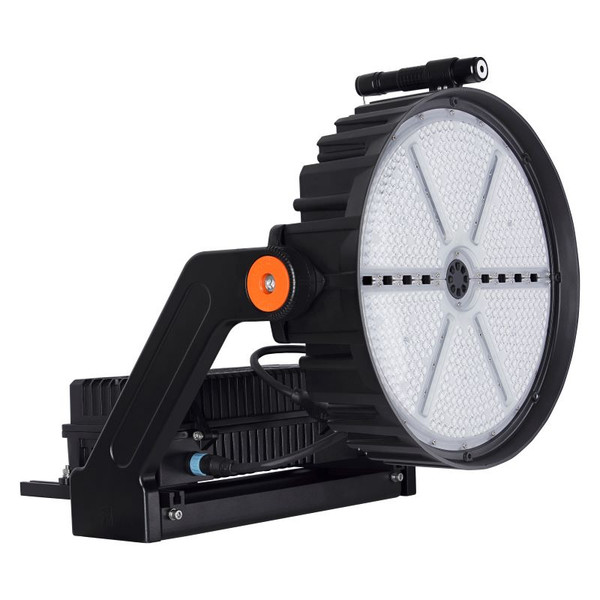

Sylvania SPORTLT1ARDS1200HUVD7505X5BL LED Wattage Selectable Sports Light – 800/1000/1200W | 5000K | Up to 174,000 lm | NEMA 5×5 | 200-480V | Black

The Sylvania SPORTLT1ARDS1200HUVD7505X5BL is a 800/1000/1200W selectable LED sports light with remote driver delivering up to 174,000 lm at 5000K, CRI >70, 200-480V input, and 100,000 hours (L70) rated life. Ideal for baseball, football and soccer fields, tennis courts, sports arenas, municipal parks, and high-mast industrial applications. Remote driver allows easier maintenance and application flexibility up to 160'.

Quick Specs

• Brand: Sylvania
• Series / Family Name: LED Wattage Selectable Sports Light with Remote Driver
• Item Number / P/N: 65979
• Order Code: SPORTLT1ARDS1200HUVD7505X5BL
• Wattage: 800/1000/1200W (Field Selectable)
• Voltage: 200-480V
• Color Temperature: 5000K (4000K and 5700K available as MTO)
• CRI: >70
• Initial Lumens: 116,000/145,000/174,000 lm (Selectable)
• Rated Average Life: 100,000 hours (L70)
• Distribution: NEMA 5×5
• Dimmable: Yes – 0-10V
• Remote Driver: Yes – mountable up to 160' from luminaire head
• Power Factor: >0.90
• Efficacy: Up to 145 LPW
• THD: <20%
• Surge Protection: 10kV
• Vibration Rating: 3G – ANSI C136.31
• Lens: Polycarbonate
• Finish: Powder Coated Black (RAL #9017)
• IP Rating: IP65 (Wet Location Rated)
• Operating Temperature: -40°F to +122°F (-40°C to +50°C)
• Dimensions (L x W x H): 24.7" x 30.1" x 21.7"
• Weight (with driver): 63.5 lbs
• Included in Box: Visor, yoke mount, laser pointer, remote driver
• Certifications: cULus (Wet Rated), DLC 5.1 Premium, RoHS, FCC, IP65
• Warranty: 5 Years (NLB Trusted Warranty Program)

Product Overview

The Sylvania SPORTLT1ARDS1200HUVD7505X5BL Wattage Selectable Sports Light with Remote Driver delivers high-output, precise illumination for sports fields and high-mast applications. Field-selectable wattage (800/1000/1200W) and NEMA 5×5 distribution provide flexibility across project requirements. The remote driver mounts up to 160' away for easier maintenance — no need to lower the fixture for driver servicing. Ships with visor, yoke mount, and laser pointer included. DLC 5.1 Premium listed for utility rebate eligibility.

Applications

• Sports fields – Baseball, football, soccer, and tennis courts with even, glare-controlled illumination.
• Municipal parks and recreation areas – High-output, long-life performance for public spaces.
• High-mast and industrial areas – 3G vibration-rated, IP65 housing for demanding environments.
• Parking and site lighting – Selectable wattage adapts to coverage requirements.

Ordering Information

• Brand: Sylvania
• Item Number / P/N: 65979
• Wattage / CCT: 800/1000/1200W / 5000K
• Voltage: 200-480V
• Distribution: NEMA 5×5
• Finish: Black
• Accessories: Extension cables (10', 35', 65') and slip fitters available separately.
• Packaging: Sold individually unless otherwise noted.
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Safety and Handling Guidelines

• Disconnect power before installation or service.
• Installation must comply with local electrical codes. Use qualified personnel for high-mast mounting.
• Do not disassemble internal LED or driver components.
• Verify vibration rating is appropriate for the mounting structure (3G – ANSI C136.31).

Compliance

• cULus Listed – Wet Location Rated
• DLC 5.1 Premium Listed – qualifies for utility rebates
• RoHS Compliant | FCC Compliant
• IP65 | 3G ANSI C136.31 Vibration Rated
