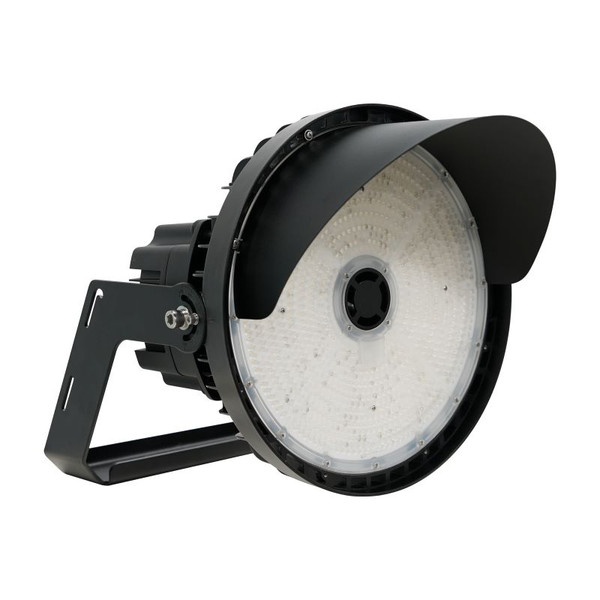

Sylvania SPORTLTPS1400UNVD7503X3BL LED Sports Light OPTI-SELECT – 1000/1200/1400W | 5000K | Up to 224,000 lm | NEMA 3×3 | 120-277V | Black

The Sylvania SPORTLTPS1400UNVD7503X3BL is a 1000/1200/1400W selectable LED Sports Light OPTI-SELECT delivering up to 224,000 lm at 5000K, CRI >70, 120-277V input, and 100,000 hours (L70 @ 25°C) rated life. Features NEMA 3×3 NEMA distribution adjustable via switch — no lens swap needed. The driver can be mounted on the luminaire or remotely up to 160 ft away. Ideal for sports fields, arenas, tennis and pickleball courts, ice rinks, and large outdoor areas.

Quick Specs

• Brand: Sylvania
• Series / Family Name: LED Sports Light OPTI-SELECT
• Item Number / P/N: 67064
• Order Code: SPORTLTPS1400UNVD7503X3BL
• Wattage: 1000/1200/1400W (Field Selectable)
• Voltage: 120-277V
• Color Temperature: 5000K
• CRI: >70
• Initial Lumens: 160,000/192,000/224,000 lm (Selectable)
• Rated Average Life: 100,000 hours (L70 @ 25°C)
• Distribution: NEMA 3×3 (OPTI-SELECT – adjustable via switch, no lens swap needed)
• Dimmable: Yes – 0-10V (down to 10%)
• Remote Driver: Yes – mountable up to 160 ft from luminaire head
• Controls Ready: Zhaga 18 receptacle included
• Power Factor: ≥0.90
• Efficacy: Up to 165 LPW
• THD: ≤20%
• Surge Protection: 10kV
• Vibration Rating: 3G
• Housing: Aluminum with UV-stabilized polycarbonate lens
• Corrosion Resistance: 500-hour salt spray tested
• Finish: Black
• IP Rating: IP66 (Wet Location Rated)
• Impact Rating: IK08
• Operating Temperature: -40°F to +103°F (-40°C to +45°C)
• Dimensions (W x L x H): 22.8" x 20.2" x 22.5"
• Weight (with driver): 58.2 lbs
• Included in Box: Yoke mount and visor; slip fitter sold separately
• Certifications: cULus (UL1598/CSA C22.2 No. 250), DLC Premium, RoHS, FCC, ICES-005, IP66, IK08
• Warranty: 5 Years (NLB Trusted Warranty Program)

Product Overview

The Sylvania SPORTLTPS1400UNVD7503X3BL Sports Light OPTI-SELECT delivers precision and versatility with selectable wattage (1000/1200/1400W) and NEMA 3×3 NEMA distribution adjustable via switch — no lens swap needed. The included visor reduces glare and spill light, while the driver mounts on the fixture or remotely up to 160 ft away for flexible maintenance access. The aluminum housing passes 500-hour salt spray testing for superior corrosion protection. DLC Premium listed for utility rebate eligibility.

Applications

• Sports fields & arenas – Selectable distribution and wattage for baseball, football, and soccer.
• Tennis & pickleball courts – Precise beam control with glare-reducing visor included.
• Ice rinks & ski resorts – Corrosion-resistant construction for demanding environments.
• Container yards, ports & rail yards – High-output up to 224,000 lm for large industrial areas.
• Community fields & golf courses – Flexible driver mounting for simplified maintenance.

Ordering Information

• Brand: Sylvania
• Item Number / P/N: 67064
• Wattage / CCT: 1000/1200/1400W / 5000K
• Voltage: 120-277V
• Distribution: NEMA 3×3
• Finish: Black
• Accessories: Extension cables (10', 35', 65') and slip fitter sold separately.
• Packaging: Sold individually unless otherwise noted.
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Safety and Handling Guidelines

• Disconnect power before installation or service.
• Installation must comply with local electrical codes. Use qualified personnel for high-mast mounting.
• Verify vibration rating is appropriate for the mounting structure (3G rated).
• Do not disassemble internal LED or driver components.

Compliance

• cULus Listed to UL1598 and CSA C22.2 No. 250
• DLC Premium Listed – qualifies for utility rebates
• RoHS Compliant | FCC Compliant | ICES-005 Compliant
• IP66 Wet Location | IK08 | 3G Vibration Rated
