Product Overview

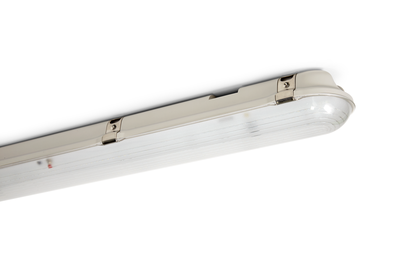

SYLVANIA Vapor Tight LED Fixture – 65W, 8500 Lumens, 8ft, 4000K, 347-480V, IP65/IP67 Rated
Product Overview
The SYLVANIA Vapor Tight LED Fixture (Product #60363) delivers 8500 lumens with just 65 watts, operating on 347-480V high voltage systems. Designed for demanding environments, this 8-foot fixture is IP65/IP67 rated, with an etched polycarbonate lens and Type V light distribution. Its corrosion-resistant build and efficient lighting make it ideal for commercial and industrial use.
Specifications
| Attribute | Details |
|---|---|
| SKU / Product Number | 60363 |
| Model | VAPOR1B/065HUVD840/96EC/GR |
| Wattage | 65W |
| Voltage Range | 347-480V (HUV) |
| Lumens | 8500 lm |
| Efficacy | 130 lm/W |
| Color Temperature | 4000K |
| CRI | >80 |
| Dimming | 0-10V (down to 6%) |
| Lens | Etched polycarbonate |
| Distribution Type | Type V |
| Material | Polycarbonate housing |
| Finish | Gray |
| Mounting | Surface (chain optional) |
| Length | 96 in (8 ft) |
| Operating Temp. | -40°F to +122°F |
| Fixture Life | 100,000 hours |
| Power Factor | ≥0.90 |
| THD | <20% |
| Weight | ~8.8 lbs (3.98 kg) |
| UPC | 046135603631 |
Key Features & Benefits
- High Voltage Operation: Designed for 347-480V systems, ideal for industrial use
- Long Lifespan: Rated for 100,000 hours, reducing maintenance needs
- Corrosion-Resistant Build: IP65/IP67 rated, resistant to dust, water, and impact
- Even Light Distribution: Type V pattern for wide, uniform coverage
- High Color Accuracy: CRI >80 with neutral 4000K output
- Smart Dimming: 0-10V compatible driver allows energy savings and light control
- Quick Installation: Surface-mount ready; chain mount optional
Applications
- Parking garages & stairwells
- Food processing facilities
- Industrial production lines
- Warehouses & cold storage
- Outdoor canopies & utility areas
- Mechanical and maintenance rooms
Warranty
Backed by a 5-year limited warranty covering manufacturing defects and performance. Provided by SYLVANIA/LEDVANCE for peace of mind and reliability.
Certifications & Compliance
- cULus Listed to UL1598 for wet locations
- IP65/IP67 Rated for water and dust resistance
- ETL Sanitation Listed for NSF splash zones
- NEMA 4X Rated (IP67 units only)
- 2.5kV Surge Suppression built-in
- UL1310 & UL48 Class 2 compliant
Energy Savings Comparison
Switching to this SYLVANIA LED fixture can reduce energy costs by over 65% when replacing traditional HID or fluorescent fixtures.
| Fixture Type | Wattage | Annual Energy Use (12 hrs/day) | Annual Cost (@ $0.12/kWh) |
|---|---|---|---|
| SYLVANIA LED | 65W | 284.7 kWh | $34.16 |
| Traditional HID 175W | ~205W | 897.3 kWh | $107.68 |
| Fluorescent (4-lamp T8) | ~128W | 561.6 kWh | $67.39 |
Estimated Annual Savings (vs. HID): $73.52 per fixture
Install 100 units and save over $7,300 per year on energy costs!
