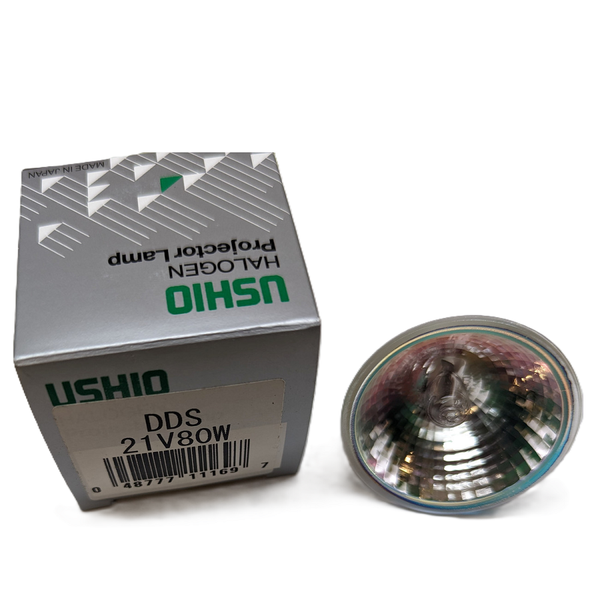

Ushio 1000177 DDS, JCR21V-80W MR16 Reflector Halogen Lamp – 80W 21V | GX5.3
The Ushio 1000177 DDS, JCR21V-80W is a tungsten-halogen MR16 reflector lamp designed for focused-beam optical applications. According to the Ushio MR16 reflector catalog, these lamps use a 50mm dichroic coated reflector and are intended only for approved enclosed halogen fixtures.
This lamp is specified at 80W, 21V, GX5.3 base, Faceted reflector, CC-6 filament, 3125K Tungsten White, and 500 hour average life. Confirm the ordering code, voltage, base type, burn position, and optical distance before ordering.
|
Wattage
80W
MR16 Lamp
|
Voltage
21V
Operating
|
Base
GX5.3
2-Pin
|
Color Temp
3,125K
CCT
|
Life
500 hrs
Rated Avg.
|
Product Overview
This Ushio JCR lamp provides a focused optical beam for projection, microscopy, fiber-optic, dental, medical, scientific, and other specialty equipment requiring an MR16 halogen reflector source. The 50mm reflector profile and specified working distance are critical for correct optical alignment.
Because these are precision photo-optic lamps, the replacement should be matched by Ushio ordering code, lamp description, wattage, voltage, base type, reflector type, and burn position rather than by wattage alone.
Technical Specifications
| Brand | Ushio |
| Ordering Code | 1000177 |
| Lamp Description | DDS, JCR21V-80W |
| Lamp Type | Tungsten Halogen MR16 Reflector Lamp |
| Wattage | 80W |
| Voltage | 21V |
| Base Type | GX5.3 |
| Lamp Diameter | 44.5 mm |
| Maximum Overall Length | 44.5 mm |
| Reflector Type | Faceted |
| Filament Type | CC-6 |
| Working Distance | 165.0 mm |
| Luminous Intensity | Not Listed |
| Center Screen Illuminance | 646 lx |
| Color Temperature | 3125K Tungsten White |
| Rated Average Life | 500 hours |
| Burn Position | BD/Hor |
| Case Quantity | 10 |
| Mercury Content | 0.0 mg – Halogen filament lamp |
Compatible Applications
- Projectors and optical systems
- Microscopy and laboratory equipment
- Dental and medical examination lighting
- Fiber-optic illuminators
- Scientific, inspection, and display equipment
- OEM maintenance replacement where this exact Ushio code is specified
Before Ordering Verify
- Ordering Code: Match Ushio 1000177 and DDS, JCR21V-80W against your existing lamp or equipment manual.
- Voltage: Confirm your transformer or power supply output is 21V.
- Base: Confirm your socket accepts GX5.3 MR16 2-pin lamps.
- Burn Position: This product is listed for BD/Hor operation.
- Optical Fit: Verify reflector type, MOL, diameter, and working distance before ordering.
Safety & Installation Guidelines
- Use Enclosed Fixtures Only: Install only in approved enclosed halogen fixtures.
- Do Not Touch Quartz: Use gloves or a lint-free cloth to prevent oils from damaging the lamp.
- Verify Voltage Before Installing: Incorrect voltage can cause immediate failure or reduced lamp life.
- Allow Cooling: Let the lamp and fixture cool completely before replacement.
- Mercury-Free: This tungsten-halogen lamp contains 0.0 mg mercury.
