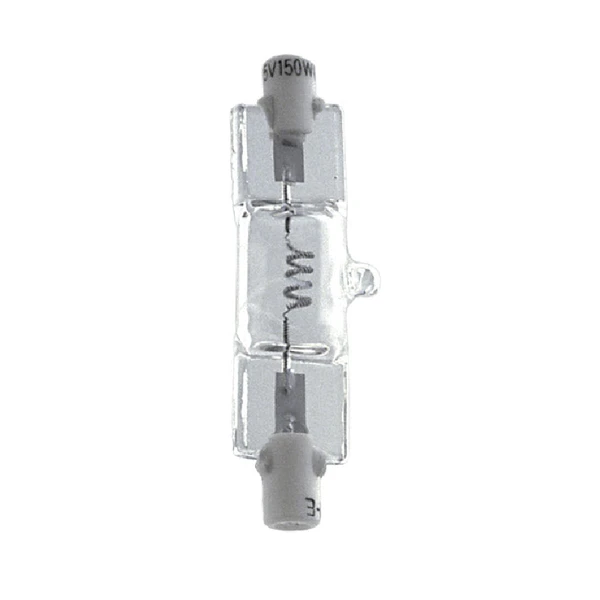

Ushio 1001106 JPD25V-150WG1 fused Double-Ended Quartz Halogen Lamp - 150W 25V R7s-18 / RX7s

Ushio 1001106 JPD25V-150WG1 fused Double-Ended Quartz Halogen Lamp – 150W 25V | R7s-18 / RX7s

Product Overview

This Ushio double-ended halogen lamp provides linear light output from a compact quartz envelope. The recessed single-contact base design supports secure mounting in compatible fixtures, while the CC-8 filament provides the specified output and beam distribution for the lamp family.

The Ushio double-ended J, JP, and JPD lamp families are commonly used in flood lighting, photographic and graphic arts equipment, exposure systems, studio lighting, industrial equipment, and other specialty applications that require precise lamp dimensions and high-intensity output.

The Ushio 1001106 JPD25V-150WG1 fused is a double-ended quartz halogen replacement lamp designed for approved enclosed halogen fixtures. This lamp is built for high-output linear illumination in commercial flood lighting, display, photo-optic, exposure, studio, and specialty equipment applications.

Use this product when your equipment specifies the exact Ushio ordering code, wattage, voltage, base type, and overall length. The catalog specifications list 150W, 25V, 2,700 lumens, 3000 hour rated life, CC-8 filament, and R7s-18 / RX7s recessed single-contact base configuration.

Technical Specifications

Compatible Applications

• Commercial and architectural flood lighting fixtures
• Graphic arts, exposure, and printing equipment
• Photo-optic and display lighting systems
• Studio, stage, and specialty production lighting
• Industrial process and inspection equipment
• Maintenance replacement for equipment specifying this exact Ushio code

Before Ordering Verify

• Ordering Code: Confirm your existing lamp or equipment manual calls for Ushio 1001106 or JPD25V-150WG1 fused.
• Voltage: This lamp is rated for 25V; using the wrong voltage can cause immediate failure or reduced lamp life.
• Wattage: Confirm your fixture is rated for 150W.
• Base Type: Verify the socket accepts R7s-18 / RX7s double-ended recessed single-contact lamps.
• Length: Confirm the 66.7 mm overall length and 64.7 mm contact-to-contact dimension match your fixture.
• Fixture Safety: Use only in approved enclosed halogen fixtures.

Safety & Installation Guidelines

• Use Enclosed Fixtures Only: Double-ended halogen lamps operate at high temperature and must be used in approved enclosed fixtures.
• Do Not Touch Quartz: Use clean gloves or a lint-free cloth. Skin oils can create hot spots and shorten lamp life.
• Disconnect Power: Turn off and disconnect power before replacing the lamp.
• Allow Cooling: Let the lamp and fixture cool completely before handling.
• Horizontal Operation: Follow fixture and manufacturer orientation requirements, especially for JP and high-wattage lamps.
• Mercury-Free: This tungsten-halogen lamp contains 0.0 mg mercury.

Wholesale & Project Support

ADL Supply supports commercial buyers, contractors, maintenance teams, and specialty lighting accounts with replacement lamp sourcing, project quoting, and volume order support.

For volume pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
