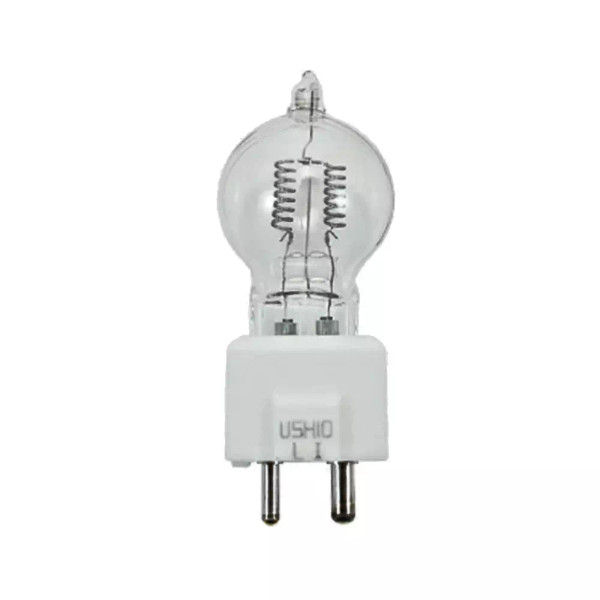

Ushio 1000914 JCD240V-500WC – 500W 240V Halogen Lamp
The Ushio 1000914 JCD240V-500WC is a 500-watt, 240-volt halogen lamp with a 2-Pin Prefocus Base (GY9.5). Ushio lists it with a 50-hour average life and a 3200K color temperature, rated at 12,500 lumens.
This lamp is listed under Ushio description JCD240V-500WC.
| Wattage 500W Halogen | Voltage 240V Operating | Color Temp 3200K CCT | Lumens 12,500 Initial lm | Rated Life 50 Hrs Average Life |
Product Overview
The Ushio 1000914 is a JCD-series halogen lamp listed in the Halogen Bi-Pin • SSTV & AV section of the Ushio halogen catalog. Per Ushio, this lamp is for use only in approved enclosed halogen fixtures.
Always confirm the lamp code, wattage, voltage, base type, and burn position against your existing lamp or equipment manual before ordering.
Why Choose This Product
- 500W at 240V: Wattage and voltage as published by Ushio for catalog number 1000914.
- Published Output: 12,500 lumens and 3200K color temperature per the Ushio catalog.
- 50-Hour Rated Life: Ushio’s published average life for this lamp.
- GY9.5 Base: 2-Pin Prefocus Base (GY9.5).
- Burn Position: Base Down to Horizontal (BD/Hor).
Technical Specifications
| Brand | Ushio |
| Ushio Catalog Number | 1000914 |
| UPC | 048777159927 |
| Manufacturer Description | JCD240V-500WC |
| Lamp Series | JCD |
| Catalog Category | Halogen Bi-Pin • SSTV & AV |
| Wattage | 500W |
| Operating Voltage | 240V |
| Color Temperature | 3200K |
| Initial Lumens | 12,500 |
| Rated Average Life | 50 Hours |
| Base Type | 2-Pin Prefocus Base (GY9.5) |
| Filament Type | 2CC-8 |
| Bulb Finish | Clear |
| Burn Position | Base Down to Horizontal (BD/Hor) |
| Bulb Diameter (A) | 24.0 mm |
| Maximum Overall Length (MOL, B) | 62.0 mm |
| Light Center Length (LCL) (C) | 36.5 mm |
| Manufacturer Case Quantity | 10 |
Compatible Applications
- Fixtures and equipment specified for the JCD240V-500WC lamp
- Equipment in the SSTV & AV category, as listed in the Ushio catalog
- Maintenance replacement where voltage (240V), wattage (500W), base (GY9.5), and burn position all match
- Approved enclosed halogen fixtures only, as required by Ushio
Cross Reference Numbers
- Ushio Catalog Number: 1000914
- Manufacturer Description: JCD240V-500WC
- UPC: 048777159927
- Common Search Terms: JCD240V-500WC, 500W 240V halogen lamp
Before Ordering Verify
- Voltage: This lamp is rated for 240V operation. Do not install in fixtures requiring a different voltage.
- Wattage: Confirm your equipment is rated for a 500W lamp.
- Base Type: Confirm the socket matches the 2-Pin Prefocus Base (GY9.5).
- Burn Position: Ushio lists this lamp for base down to horizontal (bd/hor) operation; confirm it matches how your fixture holds the lamp.
- Dimensions: Ushio lists a maximum overall length of 62.0 mm and a bulb diameter of 24.0 mm; confirm they fit your fixture.
Important Safety & Installation Notes
- Do Not Touch the Bulb With Bare Hands: Skin oils can create hot spots that may cause premature failure. Use clean gloves or a lint-free cloth.
- Use Approved Fixtures Only: Ushio specifies this lamp for use only in approved enclosed halogen fixtures. Install only in equipment designed for this lamp type, wattage, and voltage.
- Allow Cooling Before Replacement: Let the lamp and fixture cool before handling or replacing.
- Verify Voltage Before Installing: Operating above rated voltage can significantly shorten lamp life or cause lamp failure.
- Disconnect Power: Turn off and disconnect power before installing or removing the lamp.
