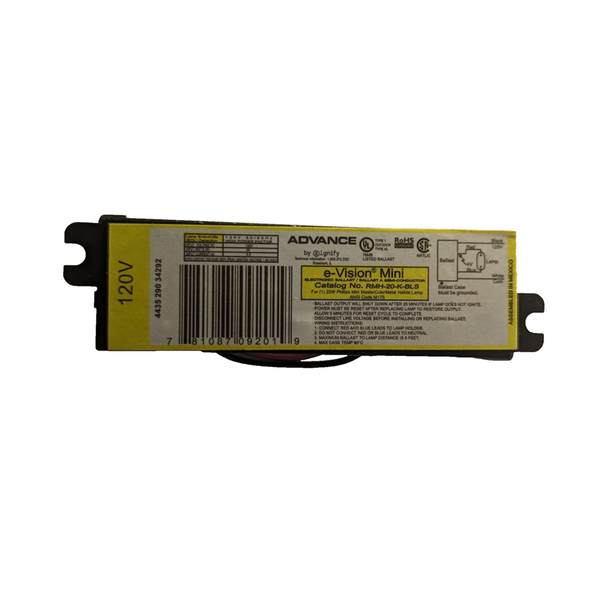

PHILIPS ADVANCE RMH20KBLS | E-Vision 20W Metal Halide Ballast | 120V Trakstick

The Philips Advance RMH20KBLS (E-Vision) is a premium electronic ballast designed for the high-precision operation of 20W and 22W ceramic metal halide lamps. Part of the Trakstick family, this ballast features a slim, die-cast metal housing that provides superior heat dissipation and fits easily into narrow track lighting channels. Operating at 120V, it is engineered to drive CDM-Tm 20W PGJ5 lamps with maximum efficiency and color stability. With built-in thermal shutdown and end-of-life detection, this ballast ensures safe operation by cutting power to failed or erratic lamps, protecting your lighting investment from electrical stress and overheating.

Product Overview

The RMH20KBLS is specifically optimized for architectural and retail environments where high-quality point-source lighting is required. Its E-Vision technology eliminates the strobe effect and audible hum often associated with magnetic ballasts, providing a flicker-free environment. The LF (Lead Finish) design includes bottom-exit leads and mounting stubs, making it easy to secure within fixture housings. With a minimum start temperature of –20°C, this ballast remains reliable even in cold-start applications. This professional-grade component is the standard for maintaining the high lumen maintenance and color consistency of Philips MasterColor CDM systems.

• Quiet Operation: Advanced electronic circuitry ensures a silent environment, ideal for high-end retail and gallery settings.
• Superior Heat Management: Die-cast metal case design maximizes thermal transfer to maintain optimal operating temperatures.
• Lamp Longevity: Precise power control reduces lamp stress, extending the life of expensive ceramic metal halide bulbs.
• Safety First: Features automated power cutoff for lamps reaching their end-of-life, preventing ballast damage.

Technical Specifications

• Brand: Philips Advance
• Model Number: RMH20KBLS
• Input Voltage: 120V (50/60 Hz)
• Lamp Compatibility: (1) CDM-Tm 20W or 22W PGJ5
• ANSI Input Power: 26W
• Housing Type: Trakstick (Metal Case)
• Dimensions: 4.4" L x 1.1" W x 1.2" H
• Max Lamp Distance: 6 feet
• Lead Exit: Bottom Exit with Mounting Stubs
• Certifications: FCC Class A (Non-Consumer), UL Listed, CSA Certified

Safety & Installation Guide

• Wiring: Always follow the wiring diagram on the ballast label. Ensure the 120V supply is disconnected before installation.
• Thermal Clearance: Ensure adequate ventilation around the metal case to prevent the unit from exceeding its 70°C maximum case temperature.
• Lamp Distance: Do not exceed the 6-foot maximum distance between the ballast and the lamp to avoid ignition issues.
• Maintenance: If a lamp begins to flicker or cycle, replace it immediately to prevent unnecessary stress on the ballast's EOL protection circuit.

Primary Applications

• Retail Track Lighting: Perfect for boutique and department store displays requiring high-CRI accent lighting.
• Museums & Galleries: Silent, high-stability lighting for protecting and showcasing artwork.
• Architectural Accents: Discreet, low-profile installations in restaurants, lobbies, and luxury residences.
• Downlighting: Compact recessed fixtures utilizing ceramic metal halide technology.
