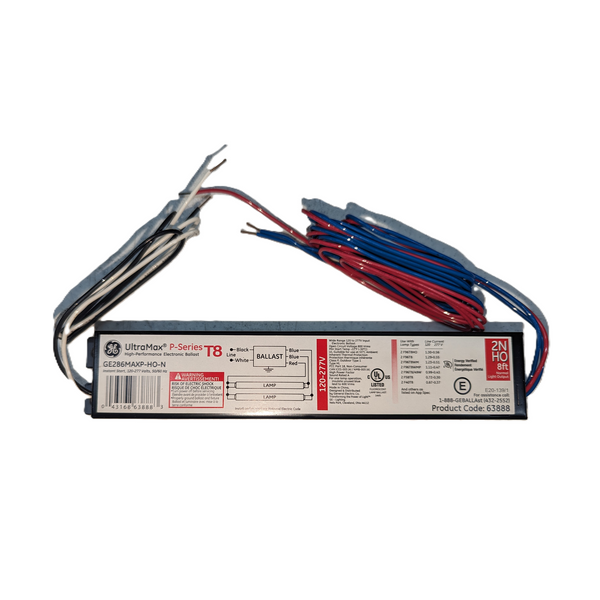

GE 63888 GE286MAX2-N UltraMax Electronic Ballast – 120-277V | Instant Start | High Output 1.18 BF | 2-Lamp F96T8HO
High-efficiency instant start electronic ballast designed for high-output 8-foot T8 fluorescent systems.
|
Lamp Type
F96T8HO
8-Foot HO
|
Lamp Count
1–2 Lamps
Parallel Operation
|
Voltage
120-277V
Multi-Volt
|
Ballast Factor
1.18
High Output
|
Start Type
Instant Start
Efficient Design
|
Quick Specs
- Brand: GE Lighting
- Series: UltraMax®
- Model: GE286MAX2-N
- Product Code: 63888
- Ballast Type: Electronic Instant Start
- Input Voltage: 120-277V, 50/60Hz
- Lamp Count: 1 or 2 Lamps
- Primary Application: F96T8HO (8ft High Output)
- Ballast Factor: 1.18 (High Output)
- THD: <10%
- Sound Rating: Class A (20-24 dB)
- Dimensions: 9.5" L x 1.7" W x 1.2" H
- Max Case Temp: 70°C
- Compliance: UL Type 1 Outdoor, FCC Part 18, RoHS
Compatible Lamps
- 1 or 2 F96T8HO (8ft High Output Lamps)
- 1 or 2 F96T8/WM, F96T8/WMP Energy Saving Lamps
- 1 or 2 F96T8 49W Lamps
- 1 or 2 F72T8HO Lamps
- 1 or 2 F60T8HO Lamps
- 1 or 2 F58T8 Lamps
- 1 or 2 F48T8HO Lamps
- 1 or 2 F40T8 Lamps (verify application compatibility)
Product Overview
The GE286MAX2-N UltraMax ballast is a high-output electronic ballast engineered for 8-foot T8 high-output (HO) fluorescent systems. With a 1.18 ballast factor, it delivers increased lumen output, making it ideal for applications requiring higher light levels.
Its instant start design provides maximum energy efficiency and lower upfront cost, making it suitable for continuous operation environments.
Key Advantages
- High light output: 1.18 ballast factor increases lumen performance
- 8-foot system optimization: Designed specifically for F96T8HO lamps
- Multi-voltage flexibility: 120-277V operation
- Parallel lamp operation: Lamps stay lit if one fails
- Energy efficient: >90% efficiency with low THD
Applications
- Warehouse and industrial facilities
- High-bay and strip lighting fixtures
- Commercial retrofits using 8-foot lamps
- Utility and storage areas
Important Notes
- High Output ballast: Not equivalent to standard 0.87 ballast factor models
- Instant Start: Best for continuous operation (not frequent switching)
- Primary use: Market as F96T8HO ballast to reduce confusion and returns
