Product Overview

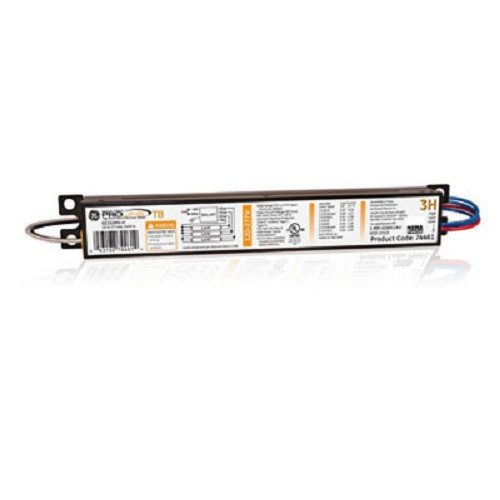

GE Proline UltraMax-H GE332MVH 3-Lamp T8 High Ballast Factor Ballast
High-performance instant start electronic ballast with 1.18 ballast factor for maximum light output. Multi-volt technology automatically adjusts 120-277V with parallel circuitry for commercial and industrial high-ceiling applications.
Quick Specs
- Brand: GE Lighting
- Model: GE332MVH (GE332MAX-G-H)
- Product Line: Proline UltraMax-H
- Type: Electronic Instant Start Ballast
- Ballast Factor: 1.18 (High)
- Voltage: 120-277V Multi-Volt
- Lamp Capacity: 2-3 Lamps
- Sound Rating: Class A (20-24 dB)
Product Overview
The GE Proline UltraMax-H GE332MVH is engineered for applications requiring maximum light output from T8 fluorescent systems. With a high ballast factor of 1.18, this instant start electronic ballast delivers approximately 18% more lumens than standard 1.0 BF ballasts, making it the industry choice for high-ceiling commercial spaces, warehouses, and areas requiring enhanced visibility.
Featuring GE's Multi-Voltage Technology, this ballast automatically senses and adjusts to any input voltage from 120V to 277V, eliminating voltage-specific inventory and simplifying specification. The parallel circuitry design ensures remaining lamps continue operating if individual lamps fail, reducing maintenance disruptions in critical lighting applications.
Note: GE332MAX-G-H is the direct energy-efficient replacement for the legacy GE-332-MV-H model.
Why Choose This Ballast
- Maximum Light Output: 1.18 ballast factor delivers highest lumens for demanding applications
- Voltage Flexibility: Automatic 120-277V adjustment simplifies inventory and installation
- Parallel Operation: Remaining lamps stay lit if individual lamps fail
- Instant Start Efficiency: Optimized for long starting cycles and lower installation costs
- Quiet Operation: Class A sound rating (20-24 dB) for noise-sensitive environments
- Compact Design: Low-profile housing fits standard fluorescent fixtures
- Energy Upgrade: Replaces legacy magnetic systems with high-efficiency electronic technology
Technical Specifications
| Specification | Value |
|---|---|
| Brand | GE Lighting |
| Model Number | GE332MVH / GE332MAX-G-H |
| Product Line | Proline UltraMax-H |
| Ballast Type | Electronic Instant Start |
| Ballast Factor | 1.18 (High) |
| Lamp Capacity | 2-3 Lamps |
| Input Voltage | 120-277V (Auto-Sensing) |
| Circuit Type | Parallel |
| Sound Rating | Class A (20-24 decibels) |
| Max Case Temperature | 70°C (158°F) |
| Safety Rating | UL Type 1 Outdoor |
| FCC Compliance | 47 CFR Part 18 |
| Environmental | RoHS Compliant |
Dimensions
| Dimension | Measurement |
|---|---|
| Length | 9.5 inches |
| Width | 1.3 inches |
| Height | 1.2 inches |
| Profile | Compact Low-Profile |
Compatible Lamp Types
This UltraMax-H ballast operates the following T8 fluorescent lamps:
Standard Linear Lamps (2-3 Lamps)
- F32T8: 48-inch 32W standard T8 lamps
- F32T8 Energy Saving: 48-inch 25W, 28W, and 30W T8 lamps
- F17T8: 24-inch 17W T8 lamps
- F25T8: 36-inch 25W T8 lamps
Specialty Lamps
- FO40: 60-inch 40W T8 lamps (operates 2 lamps)
- U-Bend T8: Equivalent U-bend fluorescent T8 lamps
Applications
- High-ceiling commercial spaces
- Industrial warehouses and manufacturing
- Retail stores requiring maximum illumination
- Gymnasiums and sports facilities
- Outdoor protected fixtures
- Areas requiring enhanced visibility
- T8 retrofits from lower ballast factor systems
Replacing Your Current Ballast?
The GE UltraMax-H GE332MVH is an ideal replacement for:
- Standard 1.0 BF ballasts when increased light output is required
- Legacy GE-332-MV-H magnetic ballast systems
- Failed high ballast factor electronic ballasts in 2-3 lamp fixtures
- Universal B332IUNVHP-B, Sylvania QTP3X32T8/UNV ISH-SC, or Philips IOP-4P32-HL-SC
Before Ordering - Verify:
- Application requires high ballast factor (1.18) for maximum lumens
- Fixture accepts 9.5" x 1.3" x 1.2" ballast enclosure
- Existing lamps are compatible T8 types listed above
- Input voltage falls within 120-277V range
- Instant start wiring configuration is present
Ordering Information
| Item | Details |
|---|---|
| Model | GE332MVH / GE332MAX-G-H |
| Description | UltraMax-H 3-Lamp T8 High BF Ballast |
| Ballast Factor | 1.18 (High) |
| Voltage | 120-277V Universal |
Industry Cross-Reference
| Manufacturer | Equivalent Model |
|---|---|
| Universal | B332IUNVHP-B |
| Sylvania | QTP3X32T8/UNV ISH-SC |
| Philips Advance | IOP-4P32-HL-SC |
Compliance and Certifications
| Certification | Status |
|---|---|
| UL Type 1 | Outdoor Rated |
| FCC | 47 CFR Part 18 Compliant |
| RoHS | Compliant |
Installation Notes
- Parallel circuitry keeps remaining lamps lit if one or more lamps fail
- Multi-Voltage Technology automatically adjusts to line voltage - no wiring changes needed
- Install in accordance with National Electric Code requirements
- Ensure adequate ventilation for 70°C max case temperature
- Instant start configuration optimized for long burn hours
Contact ADL Supply for bulk pricing and project quotes. This GE UltraMax-H ballast is stocked for immediate shipment to support your high-output commercial lighting projects.
