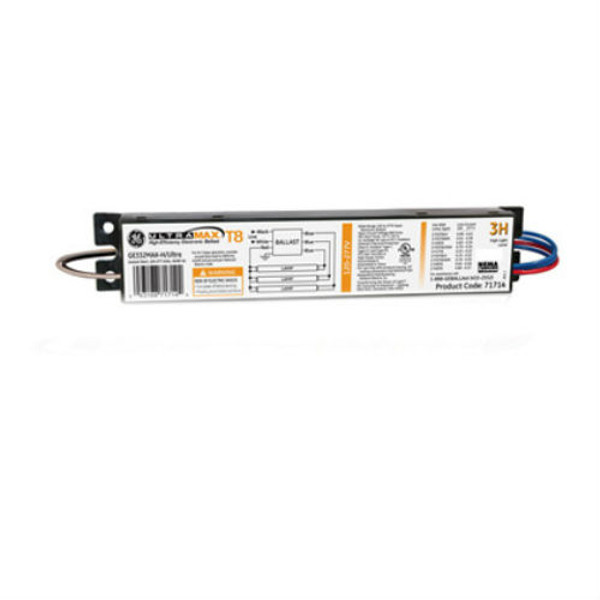

GE 78619 GE332MAX-N-H Electronic Ballast – 120-277V | Instant Start | High Ballast Factor 1.18 | UltraMax® | 3-Lamp T8 High Output
High-efficiency multivolt electronic ballast with high ballast factor (1.18) for increased light output – designed for commercial fluorescent lighting systems requiring maximum lumen performance.
|
Lamp Type
1-3 Lamp
T8 Systems High Output
|
Input Voltage
120-277V
Multi-Volt
|
Ballast Factor
1.18
High Output
|
Starting Method
Instant Start
Commercial Use
|
Series
UltraMax®
High Output
|
Quick Specs
- Brand: GE Lighting
- Series: UltraMax®
- Model: GE332MAX-N-H
- Product Code: 78619
- Ballast Type: Electronic Fluorescent Ballast
- Input Voltage: 120-277V, 60Hz
- Lamp Count: 1 to 3 Lamps
- Lamp Compatibility: F17T8, F25T8, F28T8, F32T8 and energy-saving T8 variants
- Ballast Factor: 1.18 (High Output)
- Efficiency: >90%
- Minimum Starting Temperature: -20°F
- Max Case Temp: 70°C
- THD: <10%
- Sound Rating: Class A (20-24 dB)
- Dimensions: 9.5" L x 1.3" W x 1.2" H
- Compliance: UL Type 1 Outdoor, UL Type CC, FCC Part 18, RoHS
- Additional Features: Anti-Striation Control, Active Current Regulation, Parallel Lamp Operation
Product Overview
The GE 78619 GE332MAX-N-H is a high-output electronic ballast designed for 1 to 3 lamp T8 fluorescent systems. With a 1.18 ballast factor, it delivers increased light output, making it ideal for applications requiring higher brightness or reduced fixture count.
This multivolt ballast automatically adjusts between 120V and 277V, making it suitable for a wide range of commercial installations.
Why Choose This Product
- Maximum light output: 1.18 BF increases brightness
- Multi-voltage flexibility: 120-277V compatibility
- Flexible lamp operation: Supports 1, 2, or 3 lamps
- Reliable instant start: Ideal for general lighting applications
- Improved light quality: Anti-striation circuitry reduces flicker
- Compact housing: Fits standard fixtures
Applications
- Commercial lighting systems
- Office and retail spaces
- Warehouse and industrial lighting
- High-output retrofit projects
Compatibility & Replacement
Designed for: 1 to 3 lamp T8 fluorescent systems using 120-277V input.
Important: This is a high ballast factor (1.18) model. Do not substitute with 0.87 or 0.77 ballast factor versions unless lower light output is acceptable.
Compliance & Certifications
- UL Listed
- RoHS Compliant
- FCC Part 18
- UL Type 1 Outdoor
- UL Type CC
ADL Supply recommends confirming voltage, lamp count, and ballast factor before ordering.
