Philips Advance ICN-2P32-N

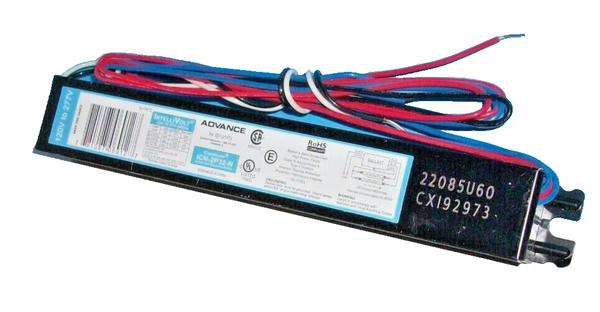

Philips Centium ICN-2P32-N — 1-2 Lamp T8 Electronic Instant Start Ballast, 120-277V

The Philips Centium ICN-2P32-N is a 1-2 lamp electronic instant start ballast from Philips Centium, designed for T8 fluorescent lamp applications in commercial lighting systems and retrofit projects. IntelliVolt technology supports universal 120-277V input, normal ballast factor, THD under 10%, and lamp striation reduction for stable light output. Compatible with F17T8 through F32T8 standard and energy-saving lamps, select U-bend models, and one F40T8 60-inch lamp. RoHS compliant and meets NEMA energy-efficiency standards. Verify lamp type, lamp count, and input voltage before ordering.

Technical Specifications

Product Overview

The Philips Centium ICN-2P32-N is a versatile electronic instant start ballast built for T8 fluorescent systems in commercial, institutional, and retrofit applications. IntelliVolt technology eliminates the need for voltage-specific models — a single ballast covers 120V through 277V installations, simplifying inventory and specification.

Instant start operation delivers immediate full output without a warm-up delay, making it well suited for spaces with frequent switching. Lamp striation reduction technology minimizes visible striping along the lamp tube for more consistent, stable light output. The low-profile housing (9.5" x 1.7" x 1.18") fits compact fixture designs where space is limited.

Compatible Lamps

• (1–2) F17T8 — 24" lamp
• (1–2) FB016T8 — 17W U-bend lamp
• (1–2) F25T8 — 36" lamp
• (1–2) FB024T8 — 25W U-bend lamp
• (1–2) F25T8/ES — 48" energy-saving lamp
• (1–2) F28T8/ES — 48" energy-saving lamp
• (1–2) F32T8/ES — 48" energy-saving lamp
• (1–2) F32T8 — 48" standard lamp
• (1–2) FBO31T8 — U-bend fluorescent lamp
• (1–2) FBO32T8/Alto — U-bend fluorescent lamp
• (1) F40T8 — 60" fluorescent lamp

Compatible Applications

• Commercial fluorescent fixture retrofits — Office troffers, strip fixtures, and wrap-around luminaires using 1–2 lamp T8 configurations.
• New construction and relamping — Universal voltage input simplifies specification across 120V and 277V commercial circuits.
• Energy-saving T8 upgrades — Compatible with ES-designation T8 lamps for improved system efficiency.
• Compact fixture applications — Low-profile housing fits space-constrained fixture designs.

Before Ordering — Verify

• Lamp Type: Confirm your lamps are on the compatible lamp list above.
• Lamp Count: Confirm fixture requires 1 or 2 lamps. This ballast does not support 3- or 4-lamp configurations.
• Input Voltage: Confirm your circuit voltage is within 120–277V.
• Start Method: Instant start ballasts do not support dimming and may reduce lamp life in high-switching applications — confirm instant start is appropriate for your installation.
• Physical Fit: Confirm 9.5" x 1.7" x 1.18" dimensions fit within your fixture's ballast cavity.

Cross Reference

• Universal B232IUNVHP-B
• GE 232MV-N
• Sylvania QTP2x32T8/UNVISN-SC
• Howard EP2/32IS/120-277
• Halco Prolume EP232IS/MV/SL
• Keystone KTEB-232LBF-UV-TP-PIC

Compliance

• Meets NEMA energy-efficiency standards for T8 electronic ballasts.
• RoHS compliant.

Ordering Information

• Brand: Philips Centium
• Model: ICN-2P32-N
• Input Voltage: 120–277V
• Lamp Compatibility: 1–2 lamp T8 fluorescent
• Packaging: Sold individually.
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

For wholesale pricing, bulk availability, or help confirming the correct replacement ballast, contact ADL Supply at 1-800-235-3489.
