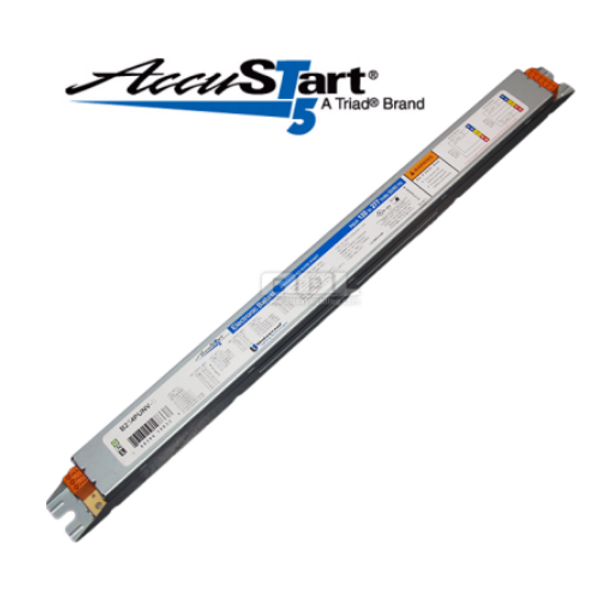

Universal B214PUNVSV3-D Triad SuperDim Electronic Ballast

(No reviews yet) Write a Review
$72.81
SKU:
B214PUNVSV3
UPC:
Condition:
New
Availability:
Shipping:
Calculated at Checkout

Product Overview


Universa Lighting Technologies 2-Lamp F14T5  B214PUNVSV3-D with 0-10V Electronic Dimming Fluorescent Ballast

Operate the Following Lamps:

(1-2) F14T5 (F14T5/Alto,FP14/ECO,HE 14W/T5,F14WT5/ECO)

Additional Details

  • Minimum starting temperature: 50ºF (10ºC)
  • Overall length: 16.88”
  • Maximum case temperature: 167 ºF (75 ºC)Mounting
  • MOL 16.28in x 1.18in x 1in
  • Sound rating: Class A
  • Remote mounting: 2 ft
  • Line voltage protection for control circuit
  • Weight: 1.25 lbs
  • Dimming range: 100% to 3% light output
  • Carton Quantity: 10
  • Line voltage protection for control circuit
  • Maximum lead lengths: Yel: 4 ft- Red: 8 ft - Blue: 8ft
  • Dimming Control Specifications:
  • 10 to 0 vDC Voltage Control
  • 10v = maximum output
  • Can be wired as Class 1 or Class 2 Circuit
  • 0v = minimum output
  • Ballast will source a maximum of 250uA for control needs
  • Built-in line voltage protection circuit: Deep-dimming condition when line voltage is applied to control leads
