Product Overview

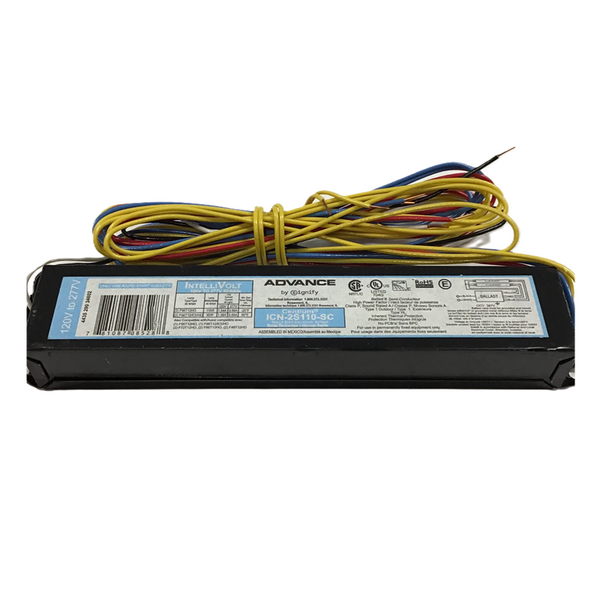

Philips Advance Centium ICN2S110SC Electronic Ballast – 1-2 Lamp T12/HO | 120-277V | Rapid Start
High-efficiency rapid start electronic ballast designed for T12/HO fluorescent systems in commercial and industrial applications.
|
Lamp Type
T12/HO
High Output
|
Lamp Count
1-2 Lamps
Series Connection
|
Voltage
120-277V
Universal Input
|
Start Type
Rapid Start
Lamp Life Friendly
|
Ballast Factor
0.89-0.90
High Output
|
Compatible Lamps
- (1-2) F48T12/HO
- (1-2) F60T12/HO
- (1-2) F72T12/HO
- (1-2) F96T12/HO
- (1-2) F96T12/HO/ES
- (1-2) FT96W/GY10q
Product Overview
The Philips Advance Centium ICN2S110SC is a rapid start electronic ballast engineered for T12/HO fluorescent lamps. It is designed as a high-efficiency replacement for older magnetic HO ballasts while maintaining strong light output and dependable operation.
Key Features
- Rapid start operation for improved lamp life
- Supports 1 or 2 T12/HO lamps
- Universal 120-277V input
- High-frequency electronic design
- Low-profile metal housing
- Suitable for commercial and industrial retrofit applications
Technical Specifications
- Model: ICN2S110SC
- Input Voltage: 120-277V AC, 50/60Hz
- Lamp Type: T12/HO
- Lamp Count: 1-2
- Start Method: Rapid Start
- Ballast Factor: 0.89-0.90
- THD: 10%
- Max Case Temperature: 70°C
- Dimensions: 9.5" L x 1.7" W x 1.18" H
- Compliance: UL Type 1 Outdoor, RoHS
Applications
- Warehouse lighting
- Industrial fluorescent fixtures
- High-bay retrofit projects
- Commercial T12/HO replacements
Important Notes
- Designed for T12/HO lamps only
- Not for standard T12 or T8 lamp systems
- Verify lamp type and socket configuration before installation
- Use as a replacement for compatible HO magnetic ballasts
