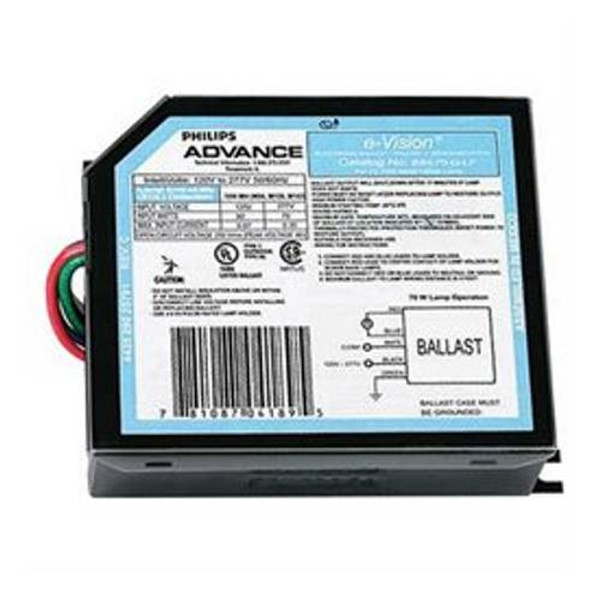

Philips Advance E-Vision IMHG70LF Electronic Metal Halide Ballast – 70W M98/M139 | Intellivolt 120-277V | LF Series | EOL Detection | Sound Rating A

The Philips Advance E-Vision IMHG70LF is a premium 70-watt electronic metal halide ballast delivering reliable pulse-start performance for ANSI M98/M139 lamps. Intellivolt 120-277V auto-ranging input, resettable thermal protection, end-of-life (EOL) lamp detection, sound rating A, and robust metal-case construction make this the specification-grade choice for commercial downlighting, track lighting, flood lighting, and any application where ballast reliability, safety features, and universal voltage compatibility are required. Catalog No. IMH-70-G-LF.

Quick Specs

• Brand: Philips Advance
• Series: E-Vision LF
• Catalog Number: IMH-70-G-LF
• Ballast Type: Electronic Metal Halide Pulse Start
• Rated Wattage: 70W (79W system watts)
• ANSI Compatibility: M98 / M139
• Input Voltage: Intellivolt 120V or 277V (50/60Hz)
• Ballast Factor: 1.0 (Normal Light Output)
• Power Factor: >0.9 (High)
• Maximum Harmonic Distortion: 15%
• Sound Rating: A (Quiet)
• Minimum Starting Temperature: -20°C / -4°F
• Maximum Case Temperature: 90°C
• Maximum Distance to Lamp: 5 feet
• Lead Length: 9 inches
• Dimensions: 3.8" L x 3" W x 1.2" H
• Special Features: Resettable Thermal Protection, EOL Detection, Metal Case Construction, Side Exit Leads with Mounting Feet

Product Overview

The Philips Advance E-Vision IMHG70LF (Catalog No. IMH-70-G-LF) delivers reliable, feature-rich electronic ballast performance for 70W pulse-start metal halide lamps. This LF-series ballast supports ANSI M98 and M139 lamp codes with Intellivolt 120-277V auto-ranging input, eliminating voltage selection errors and simplifying inventory management across commercial facilities.

Engineered for professional installations, this replacement ballast features integrated end-of-life (EOL) detection that removes power from lamps when they behave erratically or fail to ignite — preventing hazardous lamp cycling and enhancing fixture safety. Resettable thermal protection and a robust metal-case construction provide superior heat transfer and durability compared to plastic-encased alternatives. With sound rating A operation and high power factor (>0.9), this ballast delivers quiet, efficient performance in noise-sensitive commercial environments.

The LF configuration includes side-exit leads and integrated mounting feet for streamlined installation in recessed cans, track heads, flood fixtures, and architectural lighting systems. Compatible with ceramic metal halide lamps requiring M98 or M139 pulse-start ballasts, this unit supports flexible specification across retail, hospitality, and general commercial lighting applications.

Why Choose This Product

• Intellivolt 120-277V auto-ranging: Universal input voltage eliminates selection errors and simplifies inventory — one ballast fits multiple facility voltage configurations.
• EOL detection safety feature: Automatically removes power from erratic or failed lamps — prevents hazardous lamp cycling and enhances fixture safety in occupied spaces.
• Resettable thermal protection: Protects ballast from overheating — automatically resets after cool-down, reducing service calls and replacement costs.
• Sound rating A: Quiet operation ideal for offices, retail, hospitality, and other noise-sensitive commercial environments.
• Metal-case construction: Superior heat transfer and durability compared to plastic-encased ballasts — enhances reliability in demanding commercial applications.
• High power factor (>0.9): Efficient power utilization reduces electrical demand and supports energy-conscious facility management.
• Ballast factor 1.0: Delivers rated lamp lumens without over- or under-driving — ensures consistent light output and lamp life.
• LF series with side exit leads: Streamlined installation in recessed, track, and flood fixtures with integrated mounting feet and 9-inch leads.
• Wide temperature operation: Starts reliably down to -20°C / -4°F — suitable for unheated warehouses, outdoor fixtures, and cold-storage applications.
• Dual ANSI compatibility (M98/M139): Supports both 70W ceramic metal halide lamp codes — broader application flexibility than single-code ballasts.

Technical Specifications

Applications

The Philips Advance E-Vision IMHG70LF is specified for commercial lighting applications where reliable pulse-start metal halide performance with advanced safety features is required:

• Retail downlighting and track lighting – Quiet sound rating A and compact LF form factor support recessed cans and track heads in boutiques, showrooms, and apparel stores.
• Commercial flood and area lighting – Wide temperature operation (-20°C start) and robust metal-case construction support outdoor fixtures, building perimeters, and signage lighting.
• Hospitality and restaurant lighting – EOL detection and thermal protection enhance safety in occupied spaces where fixture reliability impacts guest experience.
• Office and corporate lighting – High power factor and quiet operation support professional environments where electrical efficiency and acoustic comfort matter.
• Warehouse and industrial lighting – Intellivolt 120-277V compatibility simplifies specification across facilities with mixed voltage infrastructure.

Installation & Compatibility Notes

Confirm the following before installing this Philips Advance E-Vision IMHG70LF ballast:

• Lamp compatibility — ANSI M98 or M139: Verify the installed lamp carries M98 or M139 ANSI designation for 70W pulse-start metal halide. Do not install with incompatible lamp codes.
• Input voltage — Intellivolt 120-277V: Auto-ranging input accepts 120V or 277V (50/60Hz) — verify facility voltage before installation.
• Maximum case temperature: 90°C — ensure adequate fixture ventilation to prevent thermal shutdown.
• Maximum distance to lamp: 5 feet — position ballast within specified lead length for reliable ignition.
• Lead connection: Connect the red lead to the center terminal of screw-base lamps (E26/E39) for proper polarity.
• Lamp failure response: Ballast will shutdown after 20 minutes if lamp fails to ignite — cycle power off/on after lamp replacement to reset.
• EOL detection: Ballast removes power from lamps that behave erratically or reach end-of-life — replace lamp and cycle power to restore operation.
• Power cycling: Always cycle power off, then on, after replacing the lamp to ensure proper ballast initialization.

Ordering Information

• Brand: Philips Advance
• Series: G-Vision LF
• Catalog Number: IMH-70-G-LF
• Ballast Type: 70W Electronic Metal Halide Pulse Start
• ANSI Compatibility: M98 / M139
• Input Voltage: Intellivolt 120-277V
• Configuration: LF — Side Exit Leads with Mounting Feet
• European Version: 220V HID replacement ballast also available — contact ADL Supply for international specifications.
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Compliance and Safety

• Universal Code Compliance: Meets applicable North American electrical and safety standards for commercial electronic ballasts.
• Resettable Thermal Protection: Integrated protection prevents damage from overheating — automatically resets after cool-down.
• End-of-Life (EOL) Detection: Removes power from erratic or failed lamps to prevent hazardous cycling and enhance fixture safety.
• Sound Rating A: Quiet operation suitable for noise-sensitive commercial environments.
• High Power Factor (>0.9): Efficient power utilization supports energy-conscious facility management and electrical code compliance.
• Maximum Harmonic Distortion 15%: Low harmonic content supports clean power quality in commercial electrical systems.
• Metal-Case Construction: Superior heat transfer and durability compared to plastic-encased alternatives.
• Verify listing marks: Confirm UL, cUL, or other applicable certification marks with manufacturer specification sheet prior to specification.
• Verify RoHS/REACH compliance: Confirm environmental compliance status with manufacturer specification sheet.

ADL Supply recommends confirming all applicable compliance data, wiring diagrams, and installation requirements with the Philips Advance official product data sheet prior to specification or installation.
