Product Overview

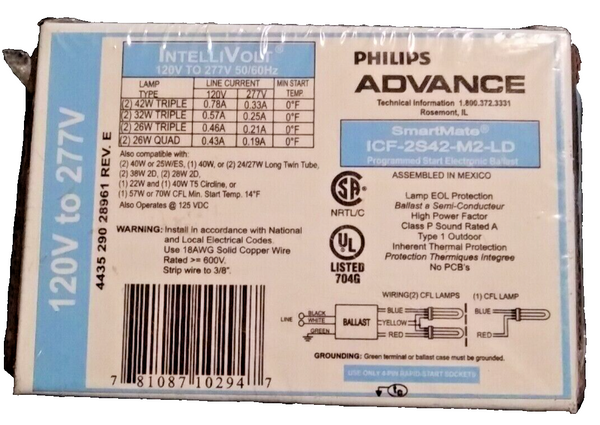

Philips P/N #136977 ICF-2S42-M2-LD 2-Lamp 42W 120/277V Smartmate Programmed Start Electronic Ballast Kit
Operate The Following Compact Fluorescent 4-Pin Lamps
- (1 Or 2 ) CFQ26W/G24q Lamp (1 or 2 ) CFTR26W/GX24q,Or (Philips PLT-26W,GE F26TBX/4P, Sylvania CF26DT/E)
- (1 or 2 ) CFTR32W/GX24q
- (1 or 2 ) CFTR42W/GX24q,
- (1 ) CFTR57W/GX24q
- (1 ) CFTR70W/GX24q
- (1 or 2 ) CFS28W/GR10q - 28W 2D Lamp
- (1 or 2 ) CFS38W/GR10q - 38W 2D Lamp
- (1) FC9T5 22W & FC12T5 Circline Lamps
Product Details
- Includes The Kit
- Rated Dual Voltage 120-277V 50/60Hz
- Dual-entry Connector allows ballast to be used with side or bottom exit leads
- Contains auto restart circuitry in order to restart lamps without resetting power.
- Ballast shall be Programmed Start except for ballasts
- With -QS suffix, which shall be Rapid Start.
- Lamp End-Of-Life (EOL) Protection Circuit
- Color-coded, poke-in terminals
- Class A sound rating.
Cross Reference:
- Universal C242UNVSE
- GE 71441 GEC242-MVPS
- Sylvania QTP1/2x26/32/42CF/UNV
- Howard EP2/42CF/MV/K2
- Halco 52108 EP2CF42PS/MV/DC
- Hatch HC242PS/UV/K
- Keystone KTEB-242T-UV-TP-PSD
