Product Overview

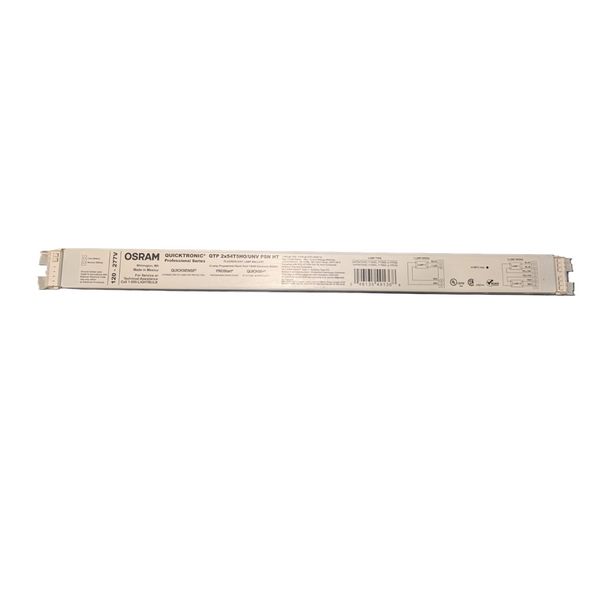

SYLVANIA 49136 | QTP2x54T5HOUNV PSN Quicktronic® 2-Lamp 54W T5HO Ballast

The Sylvania 49136 (QTP2x54T5HOUNV PSN) is a commercial-grade, high-performance **electronic fluorescent ballast** designed to operate one or two 54W T5HO lamps. Operating on a universal voltage range of **120-277V**, this Quicktronic® Professional series ballast features advanced **ProStart® programmed rapid start technology**, which precisely heats lamp filaments before ignition to significantly extend lamp life and maximize switching cycles. Engineered to withstand the harshest commercial and industrial environments, it features a heavy-duty **90°C high-ambient thermal case rating** and reliable cold-weather starting down to **-20°F**, making it an ideal choice for high-bay fixtures, warehouses, and outdoor enclosed environments.

Lamp Configuration

1 or 2 Lamps

54W T5HO Linear

Input Voltage

120-277V

Universal 50/60Hz

Starting Method

ProStart®

Programmed Rapid

Thermal Metrics

90°C Max

-20°F Min Start

ProStart® Technology for Demanding Applications

Standard instant-start ballasts can induce severe electrical stress on tube cathodes during system ignition, leading to premature lamp blackening and filament failure. Sylvania's **ProStart programmed rapid start** system solves this by delivering a brief, tightly controlled preheating cycle prior to applying the strike voltage. This structural ignition management makes the **49136 ballast** exceptionally optimized for use alongside occupancy sensors, building automation systems, and high-cycling workspace layouts where lights are routinely toggled throughout the day.

High-Frequency Mitigation: Operates at an ultra-quiet internal frequency above 40 kHz, successfully eliminating lines of infrared interference with nearby remote control or sensor hardware.
Extreme Durability: Incorporates a full UL Type CC rating (anti-arcing protection) and a UL Type 1 Outdoor classification for stable integration inside damp or weather-exposed structural channels.
Eco-Minded Engineering: Manufactured using entirely lead-free processes to ensure strict compliance with international RoHS hazardous waste guidelines.
Simplified Inventory: The auto-sensing voltage circuitry automatically configures itself to cleanly handle any electrical line input ranging from standard 120V up to 277V.

Technical Specifications

Brand: Sylvania Quicktronic®
Ordering Part Number: 49136
Model / Abbreviation: QTP2x54T5HOUNV PSN
Ballast Type: Electronic Fluorescent
Number of Lamps: 1 or 2 Lamps
Compatible Lamp Type: F54T5HO (54W T5 High Output)
Input Voltage Range: 120V - 277V (Universal Voltage)
Line Frequency: 50 / 60 Hz
Starting Method: Programmed Rapid Start (ProStart®)
Maximum Case Temperature: 90°C (194°F)
Minimum Ignition Temperature: -20°F (-29°C)
Housing Dimensions: 16.73" L × 1.18" W × 1.00" H
Safety Certifications: UL Listed (Type 1 Outdoor, Type CC), CSA Certified, FCC Compliant, RoHS Lead-Free

Broad Lamp Compatibility Spectrum

This Quicktronic high-output unit is versatile and certified to cleanly regulate multiple linear, circular, and compact fluorescent load shapes:

F54T5/HO Linear Tubes (1 or 2 Lamps): Supports industry-standard models including Philips ALTO, Sylvania ECO, FP54HO/ECO, FQ54W, and F54WT5/ECO.
FT55DL/2G11 Twin-Tube Biax (1 or 2 Lamps): Coordinates perfectly with high-wattage long compact fluorescent shapes like PL-L 55W/4P, FT55DL/ECO, and Dulux® L 55W/4P.
FPC55 Circular T5 Tubes (1 or 2 Lamps): Safely runs 55W 4-pin circular high-output shapes (FC12T5/HO 55W).
L58W T8 Metric Fluorescent Lamps (1 or 2 Lamps): Configured to drive standard international 58-watt linear T8 tubes.
