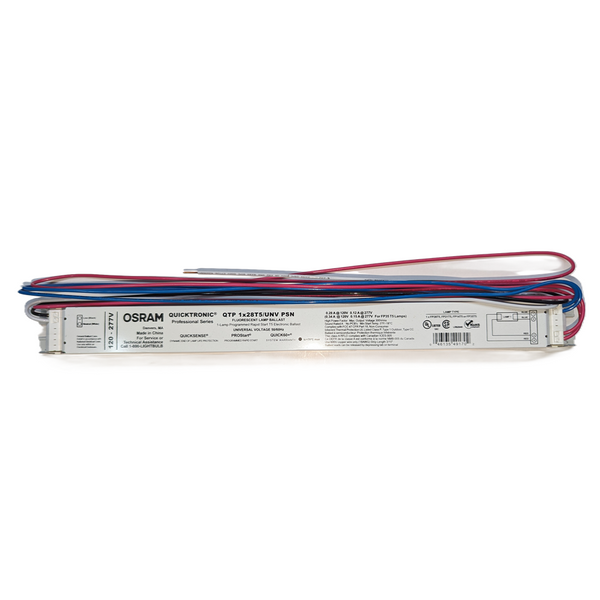

SYLVANIA QTP 1x28T5/UNV PSN | Quicktronic ProStart T5 Ballast

The Sylvania Quicktronic ProStart (QTP 1x28T5/UNV PSN) is a versatile, high-efficiency programmed rapid start electronic ballast designed to operate a single T5 linear fluorescent lamp. Its universal voltage input (120-277V) and low-profile, lightweight housing make it an excellent choice for a variety of commercial lighting fixtures where space-saving and reliable performance are required.

Performance and Reliability

ProStart® technology extends lamp life in applications involving frequent switching, such as those integrated with occupancy sensors. The ballast operates at frequencies greater than 40 kHz, ensuring compatibility with infrared control systems by eliminating potential signal interference.

• Universal Compatibility: Operates 14W, 21W, 28W, and 35W T5 linear lamps.
• Intelligent Sensing: Features Quicksense® technology for reliable end-of-lamp-life sensing.
• Durable Construction: Manufactured in North America using a lead-free process and compliant with RoHS standards.
• Efficient Design: Low harmonic distortion and quiet Class A sound operation.

Technical Specifications

• Brand: Sylvania (Quicktronic)
• Input Voltage: 120-277V (50/60Hz)
• Starting Method: ProStart® Programmed Rapid Start
• Dimensions: 14.17"L x 1.18"W x 0.87"H
• Compliance: UL, CSA, FCC, RoHS, ANSI C82.11
• Starting Temp: 0°F (-18°C)

Installation Guidelines

• Note: Lead wires are not included.
• Wiring: Lampholders must be shorted exactly according to the provided diagram.
• Safety: Ballast case must be properly grounded; install in accordance with the National Electric Code (NEC).
