Product Overview

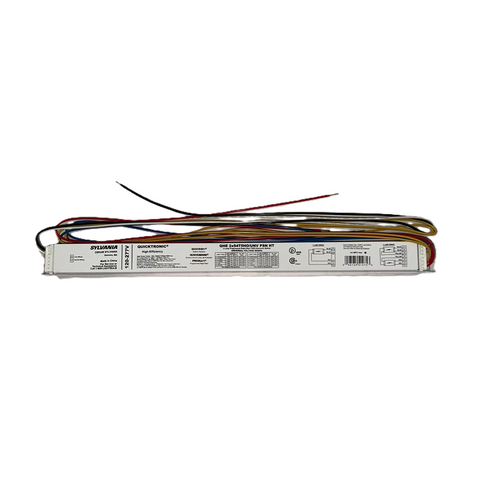

Sylvania High Efficiency QTP2x54T5HOUNV Quicktronic Prostart 2-Lamp T5HO Ballast With Leads
Operates the Following Lamps:
- (1-2) F54T5/HO (F54T5HO/Alto,FP54HO/ECO,FQ 54W,F54WT5/ECO)
- (1-2) FT55DL/2G11(PL-L 55W/4P, FT55DL/ECO, Dulux L 55W/4P)
- (1-2)FPC55, FC12T5 HO (55W HO Circular T5 4-Pin)
- Osram L 58W
Additional Information:
- Lead Wires included
- Universal Voltage: 120 - 277 vac, ±10%, 50/60Hz
- Quicksense ballast technology (end-of-lamp-life sensing)
- ProStart programmed rapid start
- UL type CC rated
- 0°F (-18°C) Starting
- Operates at >40 kHz to reduce potential interference
- with infrared control systems & Low harmonic distortion
- UL, CSA, FCC
- RoHS compliant
- Lead-free solder and manufacturing process
- Light-weight, Low Profile Housing
- (16.73"L x 1.18"W x 0.87"H)
- Manufactured in North America
- Meets ANSI Standard C82.11-1993
- Normal Ballast Factor < 10% THD
- Sound Rating A (20-24 decibels)
- UL Type 1 Outdoor
Sylvania Quicktronic Prostart T5 BallastsOperate PENTRON T5 lamps
with full lumen output and optimal system performance.
