Product Overview

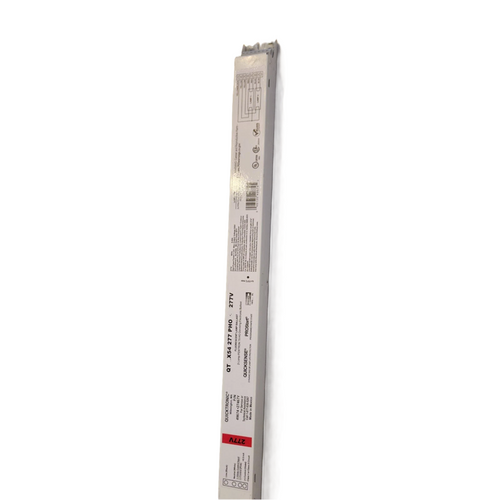

Sylvania Quicktronic Helios Dimmable QT-2x54-277PHO-DIM Ballast 277V Fluorescent 54W T5 Ballast
Operates the Following Fluorescent Lamps:
- (1-2) FP54T5HO,FT55DL, FPC55 Fluorescent Lamp
Product Details
- 100-1% Dimming
- QUICKSENSE® ballast technology Q (end-of-lamp-life sensing)
- PROStart® programmed rapid start ballast
- QUICK 60+® warranty
- 0-10V Control
- Anti-flash circuitry A dimmed mode
- High luminous efficacy
- High power factor
- Low harmonic
- Lightweight
- UL, CSA, FCC
- RoHS compliant
- Lead-free solder process
- Spec Sheet
Additional Information
Sylvania Quicktronic Helios T5HO
Dimming ballasts operate PENTRON HO,
PENTRON HO Circline, and DULUX® L
T5 lamps over a wide (100-1%)
dimming range.
QUICKTRONIC HELIOS T5HO ballasts are
appropriate for architectural dimming as
well as lighting management for energy
conservation through daylight harvesting or
building automation. They are compatible
with common 0-10V dimming controls.
These ballasts provide nearly twice the
light output (188%) of T8 systems, with
the same number of lamps, allowing many
new design options. One lamp fixtures can
now be used in place of two lamp models.
QUICKTRONIC HELIOS T5HO ballasts are
available in one and two lamp models
in 120V and 277V to cover a wide range
of applications. The ballasts are RoHS
compliant, featuring lead free solder and
manufacturing process.
Ideally Suited For
- Architectural Dimming
- Occupancy sensors
- Daylight harvesting
- Energy management
- Load shedding
