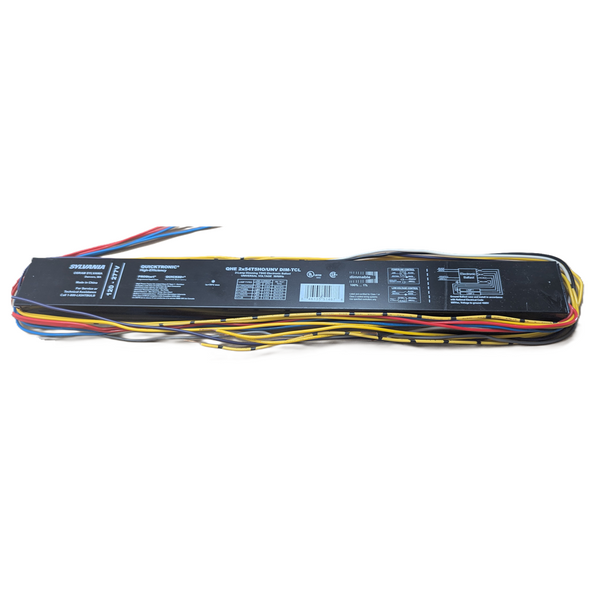

Sylvania 51467 QHE2x54T5HO/UNV DIM-TCL

The Sylvania Quicktronic Powersense® QHE 2x54T5HO/UNV DIM-TCL Ballast (Sylvania 50714/51467) is an architectural-grade, ultra-high efficiency electronic dimmable fluorescent ballast engineered to operate one or two 54W high-output T5HO lamps or compatible twin-tube compact fluorescent lamps. Providing an industry-leading full-range continuous dimming profile from 100% down to a ultra-low 1% light level, this premium module features intelligent auto-sensing circuitry to seamlessly interface with either analog 0-10V or 2-wire line-voltage phase controls. Built with an advanced Programmed Start ignition design with cathode preheating controls, it serves as the premier trade standard for high-end corporate retrofits, automated daylight harvesting zones, and high-ceiling institutional environments.

ADL Supply Expert Application & Replacement Guide

The Sylvania Quicktronic Powersense QHE 2x54T5HO/UNV DIM-TCL ballast is an elite architectural building standard specified heavily across commercial corporate offices, school lecture halls, institutional libraries, retail department showrooms, and luxury hospitality banquet centers. Engineered to deliver flexible ambient scene setting, its internal solid-state controller works seamlessly with standard architectural dimming devices to drop total building overhead power allocation, matching light output demands dynamically to satisfy strict energy code management compliance guidelines.

Patented Powersense Dual Dimming Protocols and Critical Series wiring Constraints: Electrical contractors executing field installations capture a massive labor advantage with Sylvania's patented **Powersense multi-dimming interface technology**. This intelligent processor automatically cross-identifies the control input wired to the chassis: if wired to analog low-voltage 0-10V DC dimmers (via the dedicated purple and gray lead wires), it scales to Class 2 standards; if wired to a 2-wire line-voltage phase-cut dimmer, it scales over powerline paths with zero physical slide toggle adjustments.

However, maintenance crews tracking field diagnostics must evaluate a strict operational restriction: this ballast implements an electronic **Series wiring load connection matrix**. Under series parameters, the high-frequency current tracks through both lamps in a single continuous circuit path. If Lamp #1 fails or suffers an open filament, the internal circuit path breaks, causing the companion bulb to lose its arc and turn off as well. Technicians must check individual tubes before assuming a ballast replacement is required.

Detailed Product Specifications

• Brand: Sylvania (OSRAM Quicktronic® Powersense® Series Line)
• Product Series Line: High-Efficiency Electronic Full-Range Dimming Ballasts
• Sylvania 5-Digit Factory Order NAED Code: 50714
• Manufacturer Complete Model ID Nomenclature: QHE 2x54T5HO/UNV DIM-TCL
• UPC Barcode Number (GTIN-12): 046135507144
• Control Component Class: Electronic Programmed Rapid Start — High-Frequency Operation
• Load Circuit Connection Format: Series Lamp Wiring Circuit Matrix
• Nominal Input Voltage Parameter: Universal 120V - 277V AC Auto-Sensing (Sustains 108V–305V Line Tolerances)
• Line Frequency Capacity: 50 / 60 Hz
• Continuous Dimming Range Threshold: Full-range continuous scaling from 100% full brightness down to a tight 1% light minimum
• Dimming Control Interfaces: Auto-sensing dual path compatibility (0-10V DC Analog Analog or 2-Wire Line-Voltage Phase-Cut)
• Ballast Factor Rating Constant (Maximum): Normal Output (1.00 BF tracking standard high-output curves)
• Ballast Factor Rating Constant (Minimum): 0.01 BF tracking at full 1% low-end dimming fields
• Total Harmonic Distortion (THD): Less than 10% under full standard continuous run
• Power Factor Metric: Greater than 0.98 (High-Power Factor Performance)
• Sound Insulation Class: Sound Rated A (Optimal for Quiet Corporate Office, Classroom, and Library Environments)
• Housing Material Enclosure: Low-Profile Elongated Rail Casing constructed of heavy-duty galvanized metal
• Maximum Allowed Case Temperature (Tc): 158°F (70°C)
• Minimum Ambient Starting Threshold: 50°F (10°C) for standard high-output configurations (*Note: Energy-saving lamps have restricted starting balances*)
• Chassis Physical Length: 16.70" Inches (424.2mm actual base dimension)
• Chassis Physical Width: 1.68" Inches (42.7mm actual base dimension)
• Chassis Physical Height: 1.00" Inches (25.4mm actual depth dimension)
• Industry Compliance Matrix: UL Listed (Class P, Type 1 Outdoor), CSA Approved, RoHS Compliant, Meets FCC Part 18 Non-Consumer Criteria

Certified High-Output Linear & Specialized Lamp Load Matrix

This Powersense electronic module is certified to strike and regulate the following lamp configurations (1 or 2 lamps simultaneously):

• Standard T5HO Linear Formats: FP54T5HO (54W 46.2-Inch High Output linear fluorescent tubes)
• Long Compact Fluorescent Formats (4-Pin 2G11 Base): FT55DL, FT55S, DULUX T5 55W twin-tube plug-in models
• Specialty T8 Linear Formats: L58W-T8 European profile linear fluorescent lamps
• Circline High-Output Formats: FPC55 55W circular high-output T5 loop lines

Operation, Safety & Mounting Compliance

High-Frequency Arc Stabilization and Microcontroller Anti-Flicker Logic

Operating at arc frequencies well above 42 kHz, this electronic control module entirely separates the facility layout from the visible stroboscopic effect and heavy 60Hz humming loop common in obsolete magnetic setups. It features advanced microcontroller monitoring that continuously tracks gas resonance fields inside the glass shell. This logic suppresses terminal flickering and stabilizes lamp arc pathways through the entire 100% to 1% dimming grid, ensuring true visual comfort in high-focus corporate or gallery interior envelopes.

Automated Fault Detection, EOL Safeguards and Auto-Restart Circuitry

This electronic component incorporates automated **Lamp End-of-Life (EOL) protection safety circuitry**. As a high-output T5HO tube reaches its natural degradation phase and leaks internal arc voltage, the digital microcontroller detects the voltage spike and immediately opens the circuit track to prevent localized plastic lampholder sockets from cracking or charring. Following regular re-lamping maintenance change-outs, integrated auto-restart logic automatically fires the ignition sequence without requiring facility maintenance crews to manually reset individual breaker circuit control lines. Secure the metal rail housing flat against the fixture frame backpan to establish an uninterrupted equipment safety grounding path.

Commercial Equipment Industry Cross-References

This premium 50714 high-frequency dimming control block serves as a substitute for the following parameters:

• Philips Advance Match: IZT-2S54-G / IZT2S54G (Mark 7 Analog 0-10V Dimmable Series Alternative)
• GE Current Precision Core: GE254MVPS-DIM / UltraStart multi-volt dimming class high-output elements
• Universal Lighting Match: B254PUNV-D / Multi-Volt High-Output T5HO Programmed Dimming Series
