Product Overview

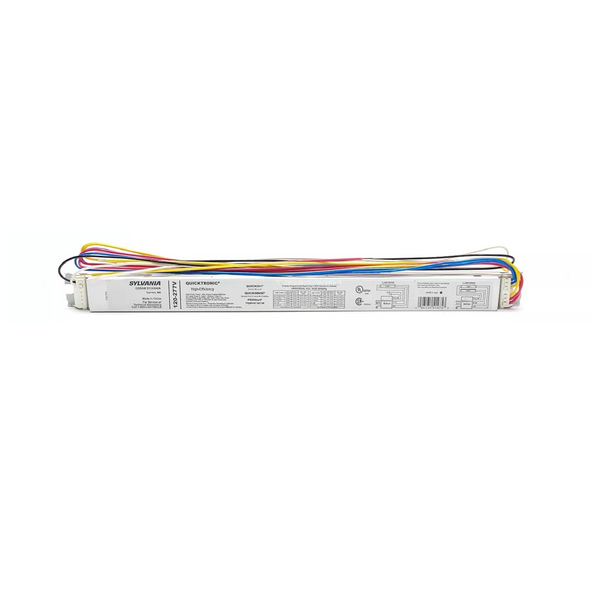

Sylvania Quicktronic #51472 QHE2X28T5UNVPSN High Efficiency Type CC 2-Lamp F28T5 Programmed Rapid Start Electronic Ballast
Operates the Following Lamps:
- (1-2) F35T5 - FP35T5
- (1-2) F28T5 - FP28T5
- (1-2) F21T5 - FP21T5
- (1-2) F14T5 - FP14T5
Additional Information:
- Lead Wires included
- Universal Voltage: 120 - 277 vac, ±10%, 50/60Hz
- Quicksense ballast technology (end-of-lamp-life sensing)
- ProStart programmed rapid start
- UL type CC rated
- 0°F (-18°C) Starting
- Operates at >40 kHz to reduce potential interference with infrared control systems
- Low harmonic distortion
- UL, CSA, FCC
- RoHS compliant
- Lead-free solder and manufacturing process
- Light-weight, Low Profile Housing
- (Dim:14.17"L x 1.18"W x 0.87"H)
- Manufactured in North America
- Meets ANSI Standard C82.11-1993
- Normal Ballast Factor < 10% THD
- Sound Rating A (20-24 decibels)
- UL Type 1 Outdoor
- Sold 10/Case
Cross Reference:
- GE GE228MVPS
- Hatch HL228HE/PS/UV/S
- Universal B228PUNV-C
- Philips Advance ICN2S28
- Keystone KTEB-228HE-UV-TP-PS
- Robertson PSV228T5MV /A
Sylvania Quicktronic Prostart T5 BallastsOperate PENTRON T5 lamps
with full lumen output and optimal system performance.
