Product Overview

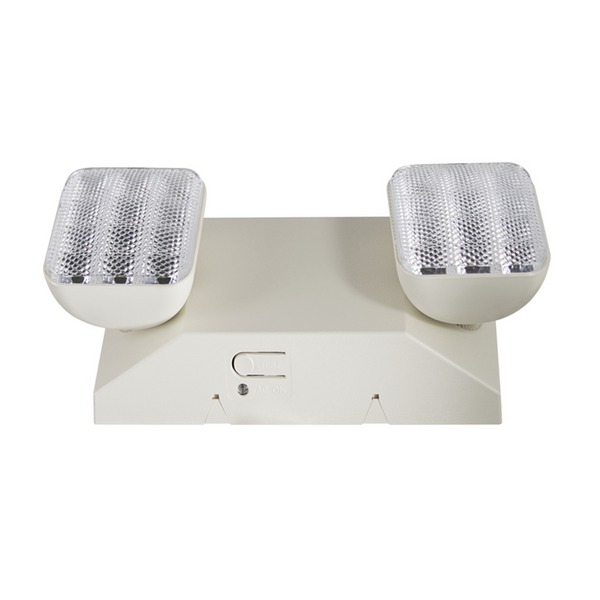

LEDVANCE 66074 EMLV/THS/WH/RSD Value Class LED Emergency Light | White | Twin Head Square | Remote Capable | Self-Diagnostic | 2.0W | 120/277V
EMLV/THS/WH/RSD (Item #66074) is a LEDVANCE Value Class LED Emergency Light with Twin Head Square lamp heads — injection-molded thermoplastic housing, universal mounting, built for code-compliant path-of-egress illumination in commercial buildings, offices, and facilities.
|
Wattage
2.0W LED
Up to 97% energy savings vs. traditional incandescent sources. 50,000-hour rated life.
|
Battery Backup
90 Min Runtime
Built-in 1.2V 1000mAh NiCad battery. Fully recharged in under 24 hours. Test switch and charge indicator included.
|
Input Voltage
120 / 277 VAC
Dual voltage input — works on both 120V and 277V systems. No transformer or additional hardware needed.
|
Smart Features
Self-Diag + Remote
Built-in self-diagnostics runs automatic monthly tests. Remote capable to support LEDVANCE remote heads.
|
Compliance
cULus | RoHS | FCC
Damp location rated. Meets NFPA 101 and OSHA life safety path-of-egress requirements. 5-year unit, 3-year battery warranty.
|
Before You Order
|
Verify Before Ordering
Emergency Light Only — No Exit Sign Face
This unit provides emergency area illumination only — it does not include an exit sign face. If you need both exit signage and emergency lighting in one fixture, order an EXV combo model instead.
|
Product Overview
The LEDVANCE Value Class Emergency Light delivers reliable path-of-egress illumination from twin LED lamp heads. Designed for fast installation with a universal J-box mounting pattern and snap canopy — ideal when dedicated emergency lighting is required independently of exit signage.
- Twin Head Square LED lamp heads — 160 lumens, 6500K, CRI greater than 80 for clear, bright emergency illumination.
- Slim, low-profile injection-molded thermoplastic housing — lightweight and fast to install.
- Up to 97% energy savings over traditional incandescent sources.
- Dual voltage 120/277VAC — compatible with most commercial electrical systems.
- Built-in NiCad battery provides 90 minutes of emergency operation after power loss.
- Self-diagnostic function automatically tests battery and lamp monthly — reduces manual testing labor.
- Remote capable — supports compatible LEDVANCE remote heads (3.6V DC output).
- 50,000-hour rated LED life — minimal maintenance over the fixture lifetime.
- Damp location rated — suitable for stairwells, hallways, lobbies, and covered areas.
Specifications
- Brand: LEDVANCE
- Series: Value Class Exit and Emergency Lighting
- SKU: EMLV/THS/WH/RSD
- Item Number: 66074
- Type: Emergency Light
- Housing: Injection-molded thermoplastic
- Lamp Heads: Twin Head Square
- Wattage: 2.0W
- Total Lumens: 160 lm
- CRI: Greater than 80
- CCT: 6500K
- Input Voltage: 120 / 277 VAC
- Power Factor: Greater than 90%
- THD: Less than 20%
- LED Rated Life: 50,000 hours (L70)
- Battery: 1.2V 1000mAh Nickel Cadmium (NiCad)
- Emergency Runtime: 90 minutes minimum
- Recharge Time: Max 24 hours
- Remote Capable: Yes — 3.6V DC output to remote heads
- Self-Diagnostic: Yes — automatic monthly battery and lamp test
- Mounting: Universal — J-Box, snap canopy included (top or end mount)
- Operating Temperature: -32 to 104 degrees F (0 to 40 degrees C)
- Location Rating: Damp location rated
- Applications: Commercial buildings, offices, stairwells, hallways, retail, hospitality
- Warranty: 5 Years unit / 3 Years battery — NLB Trusted Warranty Program
- Certifications: cULus, RoHS, FCC
Warranty Information
5 Year
