Product Overview
LEDVANCE 66076 REMOTE/LED1I/WH Value Class LED Remote Head | Single Head Indoor | White | 1.2W | 3.5-15V DC | 100 Lumens

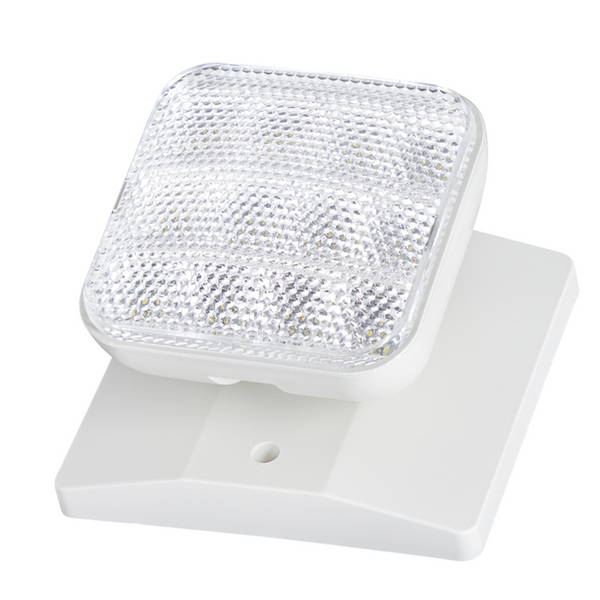

REMOTE/LED1I/WH (Item #66076) is a LEDVANCE Value Class LED Remote Head — a Single Head Indoor indoor lamp head in White finish, designed to extend emergency illumination coverage when connected to a compatible LEDVANCE RC-model host unit.
|
Wattage
1.2W LED
100 lumens output. CRI greater than 80, 6500K for accurate, bright emergency path-of-egress illumination.
|
Input Voltage
3.5 - 15V DC
Low-voltage remote head — powered by a compatible LEDVANCE RC-model exit or emergency unit. 3.6V DC supplied from host.
|
Output
100 Lumens
CRI greater than 80, 6500K color temperature for clear, accurate emergency illumination along the path of egress.
|
Location
Indoor
Damp location rated — suitable for indoor stairwells, hallways, and lobbies.
|
Compliance
cULus | RoHS | FCC
Damp location rated. Meets NFPA 101 and OSHA life safety path-of-egress requirements.
|
Before You Order
|
Verify Before Ordering
Remote Head Only — Requires a Compatible Host Unit
This is a remote head only — it does not operate as a standalone fixture. It must be connected to a compatible LEDVANCE RC-model exit or emergency unit. LEDVANCE recommends using only LEDVANCE host units to ensure compatibility and maintain warranty coverage.
|
Product Overview
The LEDVANCE Value Class Remote Head extends emergency lighting coverage beyond the host exit or emergency unit — ideal for corridors, stairwells, and open areas that require additional path-of-egress illumination. White finish. Powered directly by the host unit via 3.6V DC output.
- Single Head Indoor LED lamp head — 100 lumens, 6500K, CRI greater than 80 for bright, accurate emergency illumination.
- Powered by compatible LEDVANCE RC-model exit or emergency unit — no separate power supply needed.
- 3.6V DC input supplied from host unit — wattage stays within maximum allowable limits.
- Easy to install — mounts near the host unit or remotely along the egress path.
- Damp location rated — suitable for indoor stairwells, hallways, and lobbies.
- 50,000-hour rated LED life — minimal maintenance over the fixture lifetime.
- LEDVANCE recommends using only LEDVANCE host units to ensure full compatibility.
Specifications
- Brand: LEDVANCE
- Series: Value Class Exit and Emergency Lighting
- SKU: REMOTE/LED1I/WH
- Item Number: 66076
- Type: Remote Head
- Configuration: Single Head Indoor
- Finish: White
- Wattage: 1.2W
- Total Lumens: 100 lm
- CRI: Greater than 80
- CCT: 6500K
- Input Voltage: 3.5 to 15V DC (3.6V DC supplied from host unit)
- LED Rated Life: 50,000 hours (L70)
- Location Rating: Damp location rated
- Compatible Host: LEDVANCE RC-model exit or emergency units only
- Applications: Corridors, stairwells, hallways, open areas requiring supplemental egress lighting
- Warranty: 5 Years unit / 3 Years battery — NLB Trusted Warranty Program
- Certifications: cULus, RoHS, FCC
Warranty Information
5 Year
