Osram 185952 Dulux L 80W/880 2G11

(No reviews yet) Write a Review
$16.87
SKU:
ODLX 80W/880
UPC:
4008321185952
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Product Overview

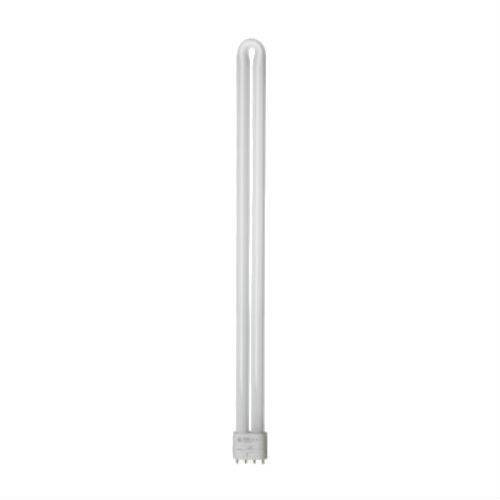

Osram Dulux L 80W 8000K Lumilux Skywhite

Compact Fluorescent 4-Pin 535mm Lamp

Product Details

  • Average Rated Life 20,000hrs
  • Base 2G11 (4-Pin)
  • Twin Tube Bulb (T5 x 2)
  • Color Rendering Index (CRI) 82
  • Family Brand Name Dulux L
  • Initial Lumens at 25C 6400
  • Maximum Overall Length MOL 21.1in
  • Maximum Overall Length - MOL 535mm
  • Diameter 0.630in or  16mm
  • Nominal Wattage 80W
  • Color Temperature/CCT 8800k (880) Lumilux Skywhite
  • Ordering Info. Dulux Lumilux L 80 W 880 Made In Italy 10/CS
  • Could Be Used With Magnetic, Electronic, Or Dimming Ballast
  • Sold Case/10
  • Spec Sheet

Cross Reference

  • Philips PL-L 80W/880/4P

Replacement 80W 2G11 Ballast

  • Advance REL-2TTS50-35I
  • Advance ICN-2S54
  • GE #72279 GE254MVPS-D
  • Sylvania QTP2x54T5HOUNVPSN
  • Universal B254PUNVHB-D
Addiditonal Info:
Approximate initial lumens after 100 hours operation. Minimum starting temperature is a function of the ballast; consult the ballast manufacturer. There is a NEMA supported, industry issue where T2, T4, and T5 fluorescent and compact fluorescent lamps operated on high frequency ballasts may experience an abnormal end-of-life phenomenon. This end-of-life phenomenon can resultin one or both of the following: 1. Bulb wall cracking near the lamp base. 2. The lamp can overheat in the base area and possibly melt the base and socket. NEMA recommends that high frequency compact fluorescent ballasts have an end-of-life shutdown circuit which will safely and reliably shut down the system in the rare event of an abnormal end-of-life failure mode described above. The final requirements of this system are yet to be defined by ANSI. For additional information refer to NEMA papers on their WEBSITE at www.NEMA.org. The life ratings of fluorescent lamps are based on 3 hr. burning cycles under specified conditions and with ballast meeting ANSI specifications. If burning cycle is increased, there will be a corresponding increase in the average hours life. Rule of Thumb for Compact Fluorescent Lamps: Divide wattage of incandescent lamp by 4 to determine approximate wattage of compact fluorescent lamp that will provide similar light output.
