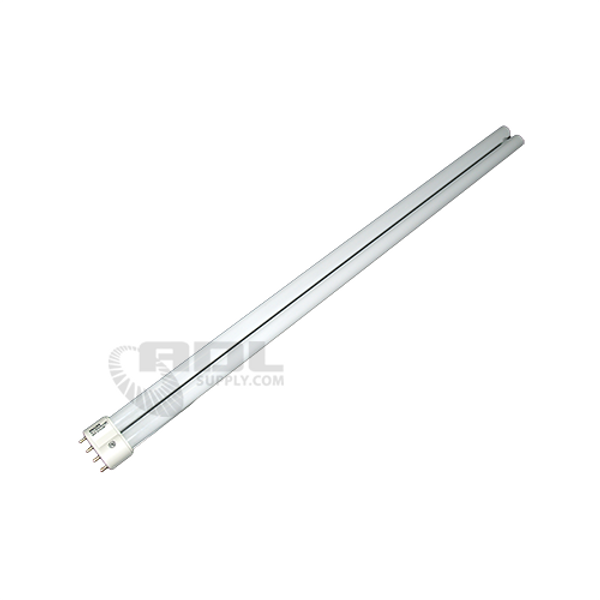

Philips Energy Advantage 25W 2G11 Compact Fluorescent Lamp - Replaces PL-L 40W, 3500K Natural White
The Philips 20914-8 PL-L 40W/835/XEW/4P/IS 25W is an energy-saving 25W compact fluorescent replacement lamp designed to replace 40W/835 lamps without changing the ballast. It provides 3500K natural white light, 2,600 initial lumens, and a 2G11 4-Pin base for compatible commercial fixtures.
Product Overview
This compact fluorescent lamp uses a long twin-tube design to deliver efficient light output in space-saving fixtures used for offices, healthcare facilities, retail spaces, and general ambient lighting. The 3500K color temperature and 82 CRI support comfortable visibility and consistent color appearance.
The 2G11 4-Pin base requires a compatible external ballast. Before ordering, confirm ballast compatibility, fixture clearance, and lamp length. This lamp features a silicon coated diffused finish for softer light distribution.
Technical Specifications
| Brand | Philips |
| Series | Energy Advantage PL-L |
| Model | 20914-8 |
| Lamp Type | Energy Advantage Twin-Tube Compact Fluorescent Lamp |
| Wattage | 25W |
| Replacement | 40W/835 |
| Initial Lumens | 2,600 |
| Color Temperature | 3500K Natural White |
| CRI | 82 |
| Base Type | 2G11 4-Pin |
| Ballast Compatibility | Rapid start / instant start ballast compatible |
| Rated Average Life | 20,000 hours |
| Maximum Overall Length | 22.5in |
| Bulb Finish | Silicon Coated Diffused |
| Order Code | 20914-8 |
| UPC / EAN | 46677209148 |
| Country of Origin | Belgium |
Key Features
- 2,600 initial lumens for efficient commercial light output
- 3500K natural white light with CRI 82
- 2G11 4-Pin base for compatible 4-pin compact fluorescent fixtures
- 20,000 hours rated life for reduced maintenance cycles
- Twin-tube compact design supports low-profile luminaire layouts
- Silicon coated finish helps diffuse light and reduce glare
Applications
- 2 x 2 commercial lay-in fixtures
- Office and healthcare luminaires using PL-L 40W systems
- Retrofit projects seeking lower energy consumption without ballast changes
- Maintenance replacement programs for compatible 2G11 fixtures
Installation Requirements
- Use only in fixtures designed for 2G11 4-Pin compact fluorescent lamps.
- Confirm ballast compatibility before installation. This lamp is not self-ballasted.
- Verify fixture clearance using the lamp dimensions before ordering.
- Dispose of fluorescent lamps according to local recycling and mercury disposal regulations.
Safety and Compliance
This lamp contains mercury and should be recycled in accordance with local, state, and federal regulations. Verify ballast compatibility, RoHS status, and any energy code requirements with the manufacturer specification sheet before installation.
