Sylvania 20899 CF57DT/E/IN/841/ECO

Sylvania 20899 CF57DT/E/IN/841/ECO – 57W DULUX® T/E/IN 4-Pin CFL | 4100K | 4170 Lumens | GX24q-5

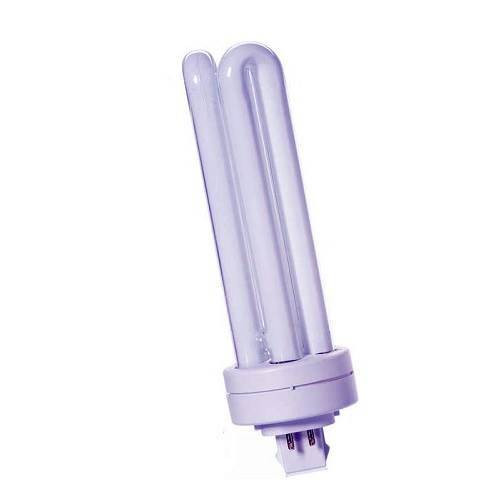

The Sylvania 20899 CF57DT/E/IN/841/ECO is a 57-watt DULUX® T/E/IN triple-tube amalgam 4-pin compact fluorescent lamp with a GX24q-5 base. It produces 4170 initial lumens at 4100K with a CRI of 82 and carries an average rated life of 12,000 hours. Amalgam design for electronic ballasts in high and low temperature applications. Manufacturer cross-reference: GE F57QBX/841/A/4P/EOL; Philips PL-T 57W/841/4P/A. Before ordering, verify the exact item number, wattage, base, ballast compatibility, color temperature, and physical dimensions.

Technical Specifications

Cross Reference

Cross-reference codes are taken from the manufacturer catalog. Confirm wattage, base, color temperature and ballast compatibility before substituting a different brand.

Product Overview

DULUX® T/E/IN lamps are pin-based compact fluorescents. The 4-pin lamps have no internal starter; starting is a function of the ballast. They are designed for electronic ballast operation and are dimmable per the manufacturer catalog. This lamp is not a self-ballasted screw-in CFL.

This is an amalgam lamp for electronic ballasts in high and low temperature applications. Optimum light output occurs at approximately 35°C / 95°F ambient temperature with the lamp operated base-up; the lumen value listed at 35°C is the optimum output.

Compatible Applications

• Fixtures and ballasts designed for 57W GX24q-5 4-pin compact fluorescent lamps
• Electronic and dimming compact-fluorescent ballast systems
• Commercial and residential recessed, wall-mounted and surface-mounted fixtures designed for this lamp type
• Fixtures in high or low ambient-temperature environments where an amalgam lamp is specified

Before Ordering – Verify

• Item number: Confirm Sylvania 20899.
• Ordering abbreviation: Confirm CF57DT/E/IN/841/ECO.
• Base: Verify the lampholder is GX24q-5 (4-pin).
• Wattage: Confirm the fixture ballast is designed for 57W compact fluorescent lamps.
• Ballast: 4-pin lamps have no internal starter; use a compatible ballast. Do not substitute a 2-pin preheat lamp.
• Color: This version is 4100K, CRI 82.
• Dimensions: Confirm the 7.76 in (197 mm) maximum overall length fits the fixture.
• Starting temperature: Minimum starting temperature depends on the ballast.
• Cross reference: GE and Philips codes are manufacturer-catalog equivalents; verify fit and ballast compatibility before substituting.

Safety and Handling Guidelines

• Disconnect electrical power before installing or removing the lamp.
• Use only with a compatible ballast and lampholder.
• Do not force the 4-pin base into an incompatible socket.
• Handle the glass tubes carefully and do not install cracked or damaged lamps.
• Allow the lamp and fixture to cool before servicing.
• NEMA notes that T2, T4 and T5 fluorescent and compact fluorescent lamps on high-frequency ballasts may experience an abnormal end-of-life condition (bulb wall cracking or base overheating); NEMA recommends ballasts with an end-of-life shutdown circuit.
• This lamp contains mercury. Dispose of used lamps according to local, state and federal regulations; see www.lamprecycle.org.

Compliance

• SYLVANIA ECOLOGIC® lamp designed to pass the Federal TCLP criteria for classification as non-hazardous waste in most states; disposal regulations may vary, so check local and state regulations.
• Initial lumens are approximate values after 100 hours of operation.
• Average rated life is based on 3-hour burning cycles under specified conditions with a ballast meeting ANSI specifications.
• Mercury-containing lamp; follow applicable disposal and recycling regulations.

Ordering Information

• Brand: Sylvania / LEDVANCE
• Item Number: 20899
• Ordering Abbreviation: CF57DT/E/IN/841/ECO
• NEMA Generic Designation: CFTR57W/GX24q/841
• GE Cross Reference: F57QBX/841/A/4P/EOL
• Philips Cross Reference: PL-T 57W/841/4P/A
• Wattage: 57W
• Base: GX24q-5
• Color Temperature: 4100K
• CRI: 82
• Initial Lumens: 4170
• Average Rated Life: 12,000 hours
• Package Quantity: 50
