Product Overview

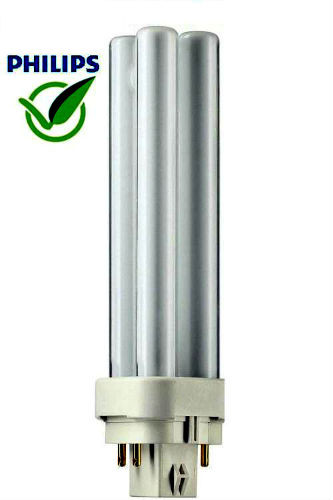

Philips 383257 PL-C 13W/827/4P/ALTO Compact Fluorescent Lamp — 13W | 5.2 in | 900 Lumens | 2700K Warm White | G24q-1 4-Pin Base
The Philips 383257 PL-C 13W/827/4P/ALTO is a 13W quad-tube (cluster) compact fluorescent lamp with a G24q-1 4-pin base, producing 2700K Warm White light (900 initial lumens) with a color rendering index (CRI) of 82 and a rated average life of 12,000 hours. It is a plug-in lamp, not a screw-in bulb: it needs a fixture with a compatible ballast.
Power 13W Compact Fluorescent | Brightness 900 lm Initial lumens | Color Temp 2700K Warm White | CRI 82 | Interface G24q-1 4-Pin Base | Rated Life 12,000 h Average rated |
ADL Supply Expert Application & Replacement Guide
Plug-in compact fluorescent lamps like this one are used in recessed downlights, wall sconces, wall washers and other compact commercial fixtures in offices, hallways, healthcare, schools and retail spaces. Because the lamp is not self-ballasted, the fixture must contain a ballast that matches the lamp.
A 4-pin lamp has no built-in starter and is made to run on an electronic ballast, and some electronic ballasts can dim it. A 2-pin lamp of the same wattage has a different base and is not interchangeable, so match the base and pin count to your fixture.
2700K – Warm white - a soft, friendly light similar to a standard incandescent bulb.
The lamp is listed with Philips ALTO low-mercury technology at 1.4 mg of mercury.
Detailed Product Specifications
- Brand: Philips Lighting
- Product Name: Philips 383257 PL-C 13W/827/4P/ALTO
- Philips Order Code: 38325-7
- UPC Barcode Number (GTIN-12): 046677110727
- Lamp Type: Compact fluorescent, quad tube (PL-C), 4-pin
- Lamp Wattage: 13W
- Color Temperature: 2700K, Warm White
- Color Rendering Index (CRI): 82
- Initial Lumens: 900 lm
- Design Lumens (at 40% of life): 775 lm
- Rated Average Life: 12,000 hours
- Base: G24q-1 (4-pin)
- Maximum Overall Length: 5.2 in
- Ballast: External electronic ballast required
- Dimmable: Only with a compatible electronic dimming ballast
- Mercury Content: 1.4 mg
Ballast & Fixture Compatibility
This 4-pin lamp needs an external electronic ballast rated for this wattage and lamp type; there is no built-in starter. Confirm the ballast is rated for a 13W PL-C lamp.
Dimming: Only with a compatible electronic dimming ballast.
Equivalent Lamps & Cross-Reference
If you know this lamp by another brand's number, or need a replacement, use the numbers below. Confirm that the wattage, color temperature, and ballast type match your fixture before substituting, since ratings can differ between brands.
- Grainger Item Number: 3V994
- GE Equivalent: F13DBX/SPX27/CD (GE Part Number 13578)
- Sylvania (OSRAM) Equivalent: CF13DD/E/827 (Part Number 20682)
Before You Order – Verify
- Confirm the base: G24q-1 (4-pin). Lamps of the same wattage with a different base or pin count will not fit the socket.
- Confirm the ballast is rated for a 13W lamp of this type (electronic).
- Confirm the fixture has room for the lamp length: 5.2 in.
- Confirm 2700K matches the lamps already installed before partial re-lamping.
