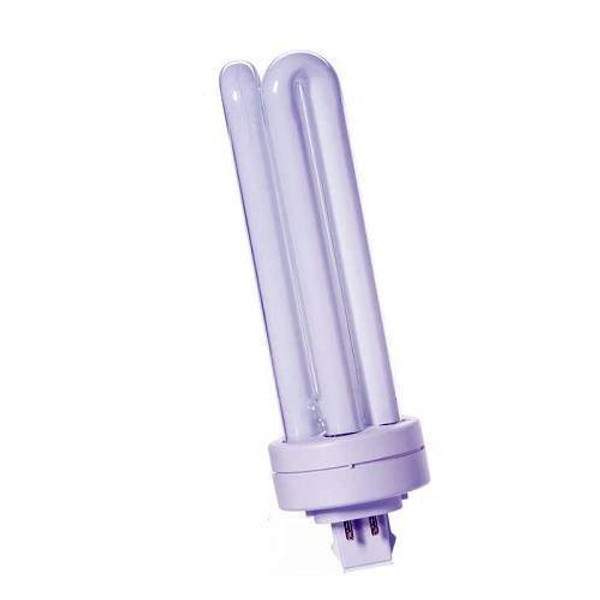

Sylvania 21103 CF42DT/E/IN/38W/830/SS/ECO 38W 3000K GX24q-4 CFL

Product Overview

Sylvania 21103 CF42DT/E/IN/38W/830/SS/ECO – 38W DULUX® T/E/IN SUPERSAVER 4-Pin CFL | 3000K | 2450 Lumens | GX24q-4

The Sylvania 21103 CF42DT/E/IN/38W/830/SS/ECO is a 38-watt DULUX® T/E/IN SUPERSAVER triple-tube amalgam SUPERSAVER 4-pin compact fluorescent lamp with a GX24q-4 base. It produces 2450 initial lumens at 3000K with a CRI of 82 and carries an average rated life of 18,000 hours. A reduced-wattage SUPERSAVER amalgam version designed for electronic ballast operation. Manufacturer cross-reference: Philips PL-T 42W/830/XEW/4P/ALTO 33W. Before ordering, verify the exact item number, wattage, base, ballast compatibility, color temperature, and physical dimensions.

Wattage

38W

DULUX® T/E/IN SUPERSAVER 4-Pin

Initial Lumens

2450

2105 Mean lm @25°C

Color Temp

3000K

CRI 82

Base

GX24q-4

4-Pin Plug-In

Rated Life

18,000 hrs

At 3 Hours/Start

Technical Specifications

Brand	Sylvania / LEDVANCE
Item Number	21103
Ordering Abbreviation	CF42DT/E/IN/38W/830/SS/ECO
Lamp Family	DULUX® T/E/IN SUPERSAVER 4-Pin Compact Fluorescent
Wattage	38W
Base Type	GX24q-4 4-Pin
Bulb	T (T4)
Lumens	2,450 lm initial (2,105 lm mean) at 25°C / 77°F; 2,500 lm initial (2,150 lm mean) at 35°C / 95°F
Color Temperature	3000K
Color Rendering Index	82
Average Rated Life	18,000 hours, based on 3 hours per start
Maximum Overall Length (MOL)	6.5 in (163 mm)
Package Quantity	50
Minimum Starting Temperature	Function of the ballast; consult the ballast manufacturer

Cross Reference

Sylvania Item Number	21103
Sylvania Ordering Abbreviation	CF42DT/E/IN/38W/830/SS/ECO
GE Equivalent	No equivalent listed in the manufacturer catalog
Philips Equivalent	PL-T 42W/830/XEW/4P/ALTO 33W

Cross-reference codes are taken from the manufacturer catalog. Confirm wattage, base, color temperature and ballast compatibility before substituting a different brand.

Product Overview

DULUX® T/E/IN SUPERSAVER lamps are pin-based compact fluorescents. The 4-pin lamps have no internal starter; starting is a function of the ballast. They are designed for electronic ballast operation and are dimmable per the manufacturer catalog. This lamp is not a self-ballasted screw-in CFL.

This is an amalgam lamp for electronic ballasts in high and low temperature applications. Optimum light output occurs at approximately 35°C / 95°F ambient temperature with the lamp operated base-up; the lumen value listed at 35°C is the optimum output.

SUPERSAVER lamps are a reduced-wattage version of the standard lamp; the nominal wattage listed is lower than the NEMA generic wattage class shown in the specifications.

Compatible Applications

Fixtures and ballasts designed for 38W GX24q-4 4-pin compact fluorescent lamps
Electronic and dimming compact-fluorescent ballast systems
Commercial and residential recessed, wall-mounted and surface-mounted fixtures designed for this lamp type
Fixtures in high or low ambient-temperature environments where an amalgam lamp is specified

Before Ordering – Verify

Item number: Confirm Sylvania 21103.
Ordering abbreviation: Confirm CF42DT/E/IN/38W/830/SS/ECO.
Base: Verify the lampholder is GX24q-4 (4-pin).
Wattage: Confirm the fixture ballast is designed for 38W compact fluorescent lamps.
Ballast: 4-pin lamps have no internal starter; use a compatible ballast. Do not substitute a 2-pin preheat lamp.
Color: This version is 3000K, CRI 82.
Dimensions: Confirm the 6.5 in (163 mm) maximum overall length fits the fixture.
Starting temperature: Minimum starting temperature depends on the ballast.
Cross reference: GE and Philips codes are manufacturer-catalog equivalents; verify fit and ballast compatibility before substituting.

Safety and Handling Guidelines

Disconnect electrical power before installing or removing the lamp.
Use only with a compatible ballast and lampholder.
Do not force the 4-pin base into an incompatible socket.
Handle the glass tubes carefully and do not install cracked or damaged lamps.
Allow the lamp and fixture to cool before servicing.
NEMA notes that T2, T4 and T5 fluorescent and compact fluorescent lamps on high-frequency ballasts may experience an abnormal end-of-life condition (bulb wall cracking or base overheating); NEMA recommends ballasts with an end-of-life shutdown circuit.
This lamp contains mercury. Dispose of used lamps according to local, state and federal regulations; see www.lamprecycle.org.

Compliance

SYLVANIA ECOLOGIC® lamp designed to pass the Federal TCLP criteria for classification as non-hazardous waste in most states; disposal regulations may vary, so check local and state regulations.
Initial lumens are approximate values after 100 hours of operation.
Average rated life is based on 3-hour burning cycles under specified conditions with a ballast meeting ANSI specifications.
Mercury-containing lamp; follow applicable disposal and recycling regulations.
