GE 180W LED HID Lamp, ED18 EX39, 3000K, 30,000 Lumens, 120-277V, Replaces 400W HPS/MH

Product Overview

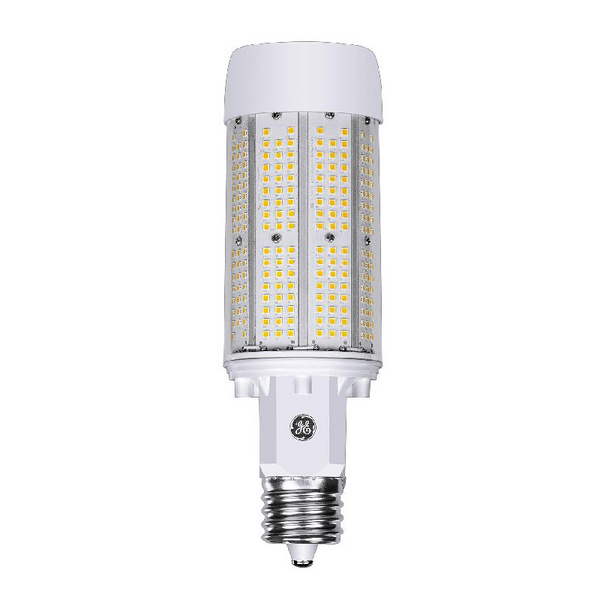

GE LED180ED18/730 93312096 — 180W LED HID Replacement Lamp, ED18, 3000K, EX39 Mogul, Ballast Bypass Type B

The GE LED180ED18/730 (Order Code 93312096) is a 180-watt LED HID replacement lamp from GE/Current Lighting Solutions, designed as a Type B ballast-bypass retrofit for 400W HPS or 400W metal halide fixtures. This ED18 corn-cob style lamp matches the ANSI length and diameter of the HID lamp it replaces, with omnidirectional light output for compatibility with existing fixture optics. With an EX39 mogul base, 3000K warm white color temperature, CRI greater than 70, 30,000 initial lumens, 167 LPW efficacy, and a rated life of 50,000 hours, this lamp delivers 3.3x longer life than metal halide while using 60–75% less energy. cULus certified, Damp location rated. The existing fixture must be rewired to bypass the ballast. Sold 3 per carton. Verify ballast bypass wiring and voltage range before ordering.

Wattage

180W

167 LPW

Lumens

30,000 lm

Initial Output

Color Temp

3000K

CRI >70

Replaces

400W HPS/MH

Type B Bypass

Rated Life

50,000 hrs

5-Year Warranty

Technical Specifications

Brand	GE / Current Lighting Solutions
GE Order Code / SKU	93312096
Manufacturer Part Number	LED180ED18/730
UL Type	Type B (Ballast Bypass)
Bulb Shape	ED18
Base Type	EX39 Mogul
Input Voltage	120–277V
Wattage	180W
Wattage Replacement	400W HPS / 400W Metal Halide
Initial Lumens	30,000 lm
Efficacy	167 LPW
Color Temperature	3000K
CRI	>70
Rated Life	50,000 hours (L70)
Dimmable	Do not use with phase-cut dimmers. Dimming functions only with external Variac control devices.
Max Overall Length (MOL)	9.7"
Diameter (MOD)	3.0"
Minimum Fixture Compartment Volume	552 in³ (approx. 10" x 8" x 7" / 26 x 21 x 18 cm)
Operating Temperature Range	-40°C to 50°C
Location Rating	Damp
Fixture Compatibility	Open or Enclosed (not suitable for air-tight, explosive, or hazardous fixtures)
Surge Protection	6kV
Safety Certifications	cULus
Energy Certifications	DLC ID S-F26H3J — verify current qualification at qpl.designlights.org/solid-state-lighting
Mercury / Lead Content	Contains no lead or mercury — RoHS compliant
Carton Quantity	3 (Standard Pack Quantity)
UPC	662049525090
Warranty	5-year limited warranty
Patents	Covered by U.S. Patents 10788163 and 10508776 (and potentially other pending applications)

Product Overview

The GE LED180ED18/730 is a Type B ballast-bypass LED lamp engineered to directly replace a 400W HPS or 400W metal halide HID lamp, requiring the existing fixture to be rewired to bypass the ballast entirely. This eliminates the ongoing cost and hassle of ballast replacement and maintenance, while delivering 3.3 times longer service life than metal halide and using 60–75% less energy for similar light output. The ED18 bulb shape uses a narrower 3.0" diameter profile than the ED28 family at a comparable wattage tier, while the EX39 mogul base matches the ANSI profile of the traditional 400W HID lamp it replaces.

GE's proprietary active cooling design enables this lamp's compact, high-output construction, with omnidirectional light distribution similar to traditional HID lamps — this allows the LED replacement to work effectively with existing fixture reflector optics designed around an HID lamp's light pattern. An in-line fuse is included, and a tether kit is included with this ED18 shape for safety and code compliance in overhead applications. Dimming is supported only through external Variac control devices — standard phase-cut (Triac) dimmers are explicitly not compatible and should not be used with this lamp.

Compatible Applications

HID retrofit projects — Direct ballast-bypass replacement for 400W HPS or 400W metal halide fixtures using existing fixture housings.
Area, site, wall pack, canopy, and high-bay fixtures — Where ballast bypass wiring is permitted and fixture is rated for the application.
Commercial and industrial facilities — Seeking substantial energy savings and reduced maintenance versus legacy HID lighting.

Before Ordering — Verify

Ballast Bypass Required: The existing fixture must be rewired to bypass the ballast entirely — this is a Type B lamp, not a plug-and-play ballast-compatible retrofit.
Input Voltage: Confirm your circuit falls within 120–277V.
Existing HID Wattage: Confirm you are replacing a 400W HPS or 400W metal halide lamp.
Dimming: Do not use with phase-cut (Triac) dimmers. Dimming is supported only via external Variac control devices.
Physical Fit: Confirm 9.7" MOL and 3.0" diameter fit within your fixture housing, with a minimum compartment volume of 552 in³ (approximately 10" x 8" x 7").
Fixture Type: Suitable for open or enclosed fixtures, but not suitable for air-tight, explosive, or hazardous location fixtures.
DLC Status: Verify current DLC QPL qualification at designlights.org/search if required for a utility rebate program.
Carton Quantity: Minimum order quantity is 3 units (1 carton).

Safety and Installation Guidelines

Disconnect power before installing or servicing.
Qualified Electrician Required: Ballast bypass wiring should be performed by a qualified electrician familiar with rewiring HID fixtures for Type B LED lamp operation.
In-Line Fuse: Install the included in-line fuse kit per manufacturer instructions to protect against incorrect wiring.
Tether Kit: Install the included tether kit for this ED18 lamp shape, particularly important in overhead or high-mount applications.
Dimmer Compatibility: Do not connect to phase-cut dimmers. Use only with external Variac control devices if dimming is required.
Damp Location Use: Confirm fixture rating matches installation environment; not rated for hazardous or air-tight explosive locations.

Compliance

cULus listed. DLC ID S-F26H3J — verify current qualification at qpl.designlights.org/solid-state-lighting.
RoHS compliant — contains no lead or mercury. No mercury-related shipping restrictions apply.
Covered by U.S. Patents 10788163 and 10508776 (and potentially other pending applications).
5-year limited warranty.
