Product Overview

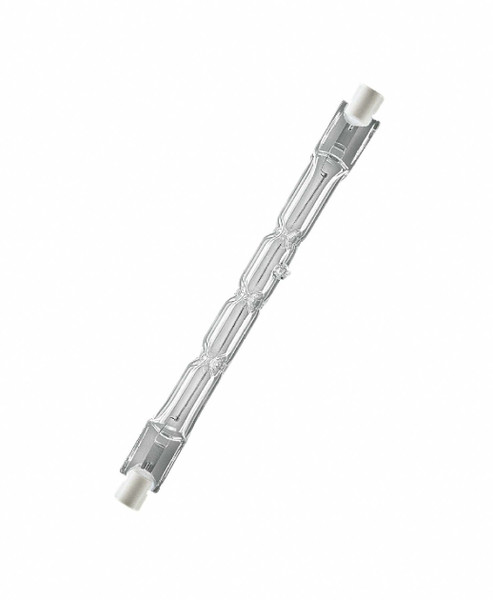

GE 23734 FDN-Q500T3/4 – 500W Quartz Halogen Lamp, R7s Base, 3200K
The GE 23734 (FDN-Q500T3/4) is a 500-watt Quartzline® tungsten halogen lamp with a R7s base, rated at 3200K color temperature. It carries a 400-hour rated average life and delivers 12,800 initial lumens. This lamp is stocked by ADL Supply for stage, studio, and entertainment lighting replacement programs.
|
WATTAGE
500W
GE Stage & Studio
|
LUMENS
12,800 lm
Initial output
|
CCT
3200K
Color temperature
|
BASE
R7s
T-3 bulb
|
LIFE
400 hrs
Rated average life
|
Technical Specifications
| Manufacturer | GE (Current Lighting) |
| Product Line | GE Stage and Studio Lamps |
| Order Code | 23734 |
| Description / Ordering Abbreviation | FDN-Q500T3/4 |
| ANSI Code | FDN |
| Wattage | 500W |
| Bulb Shape | T-3 |
| Base | R7s |
| Voltage | 120V |
| Pack Quantity | 12 per case |
| Initial Lumens | 12,800 lm |
| Design Color Temperature | 3200K |
| Rated Life | 400 hours |
| Filament Type | C-8 |
| MOL (Maximum Overall Length) | 4.69" |
| Burning Position | H4 |
Product Overview
The 23734 is a GE Quartzline® tungsten halogen lamp from GE's Stage and Studio line, built for 3200K color-consistent output over a 400-hour rated life. It uses a T-3 quartz envelope with a R7s base rated for 120V operation.
Quartz halogen lamps are designed to be operated within close voltage tolerances; excessive voltage can drastically shorten life even as it raises light output. GE recommends contact pins be kept clean, since oxidation above 350°C can cause arcing and irreparable damage to both lamp and lampholder.
Compatible Applications
- Studio and broadcast lighting fixtures
- Stage and theatrical lighting instruments
- Followspots and profile/Fresnel fixtures rated for this wattage and base
- Retrofit replacement in fixtures originally specified for this order code
Before Ordering – Verify
- Confirm the base type (R7s) and voltage (120V) match your fixture before ordering.
- Do not exceed 110% of rated voltage; overvoltaging shortens life and raises seal temperature.
- Confirm burning position (H4) matches your fixture's mounting orientation.
- Apparent lighted length is slightly longer than a similar clear lamp.
Safety and Handling Guidelines
- Turn power off before inspection, installation, or removal — risk of electrical shock.
- Keep combustible materials away from the lamp and use only in a fixture rated for this product — risk of fire.
- Pressurized lamp: unexpected rupture may cause injury, fire, or property damage. Use eye protection and do not touch the glass with bare hands.
- Do not use the lamp if the outer glass is scratched or broken; operate only in the specified position; do not exceed 110% of rated voltage.
- Allow the lamp/fixture to cool before handling; turn power off before installing the lamp; dispose of a broken lamp in a closed container.
Compliance
- Dispose of/recycle per federal, state, and local regulations for lamp components.
- ANSI code FDN — confirm ballast/transformer compatibility before installation.
- UL Standard 1572 enclosed-fixture rating applies where noted (see Before Ordering).
Ordering Information
- Order Code: 23734
- Description: FDN-Q500T3/4
- Pack Quantity: 12 per case
- Contact ADL Supply for current wholesale pricing and stock availability.
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
