GE 37695 DZE 24V 150w Halogen Bulb

GE 37695 DZE/FDS — 150W 24V T4 Projection Lamp, GZ9.5 2-Pin Prefocus Base

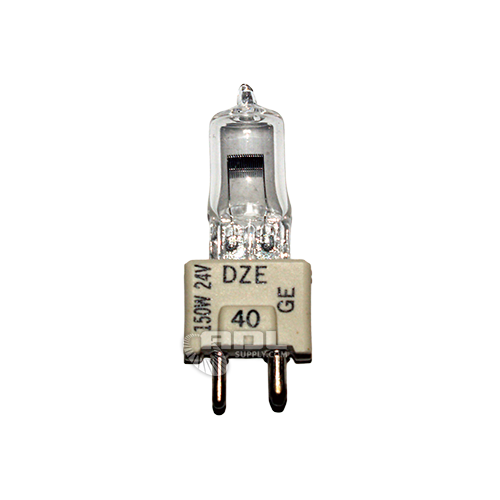

The GE DZE/FDS (order code 37695) is a 150W projection lamp rated at 24 volts, built on a T4 bulb with a GZ9.5 2-Pin Prefocus base and a C-6 Oval filament. Rated life is 100 hours. Colour temperature is 3250K. Initial output is 4000 lumens. Maximum overall length is 2.68 in with a light centre length of 1.31 in. Burn position is restricted: Base Down to Horizontal — do not operate base above horizontal. This is a multiple-ANSI-coded lamp: it carries the ANSI code DZE and directly replaces FDS. Projection lamps are matched to specific optical systems — confirm the ANSI code, base, light centre length, and burn position against the equipment before ordering.

Technical Specifications

Product Overview

Projection lamps are precision optical sources. Unlike general lighting lamps, they are built with tailored filaments positioned to close tolerances so that the light source sits exactly where the equipment's optical system expects it. That is why light centre length and burn position appear on the specification alongside wattage and voltage: a lamp with the right base and wattage but the wrong filament position will not focus correctly.

This is a Quartzline® halogen lamp. The quartz envelope and halogen fill cycle return evaporated tungsten to the filament, so the bulb does not blacken or blister as an ordinary incandescent lamp does. Light output and colour temperature stay effectively constant across the life of the lamp, which matters in projection, copyboard, and printing work where exposure has to be repeatable.

Burn position matters on this lamp. It is rated HD: Base Down to Horizontal — do not operate base above horizontal. Operating outside that range shortens life and can cause early failure, because the halogen cycle and the mechanical support of the filament are both designed around the intended orientation.

GE assigns multiple ANSI codes to some projection lamps for customer convenience. The first code, DZE, is the ANSI code and is the one marked on the lamp itself. The secondary codes identify lamps this one directly replaces — here, FDS. Equipment calling for any of those codes can take this lamp.

Compatible Applications

• Projection equipment
• Microfilm and micrographics
• Studio and stage equipment
• Graphic arts and printing
• Replacement lamp for equipment specified with ANSI code DZE
• Direct replacement for equipment specified with FDS

Before Ordering — Verify

• Confirm the equipment calls for ANSI code DZE or one of the codes it replaces (FDS). ANSI codes assure mechanical and electrical interchangeability between manufacturers, so this is the primary cross-reference.
• Confirm the base is GZ9.5 2-Pin Prefocus.
• Confirm the supply is 24V. Supply voltage variation significantly affects lamp life.
• Confirm the required light centre length is 1.31 in. LCL positions the filament relative to the base and determines whether the lamp focuses correctly in the equipment.
• Confirm the equipment accommodates a maximum overall length of 2.68 in. Listed lengths include maximum tolerances, so actual lamps are generally slightly shorter.
• Confirm the equipment holds the lamp in a permitted burn position. This lamp is rated HD: Base Down to Horizontal — do not operate base above horizontal.
• Note the 100 hour rated life when planning spares. Rated life is a laboratory median at rated voltage, not a service life guarantee — shock, vibration, voltage fluctuation, and temperature can all shorten it.
• Confirm case quantity — the manufacturer case quantity for this order code is 24.
• GE lists warning and caution notice A against this lamp. Refer to GE's published notices for this order code before installation.

Safety and Handling Guidelines

• Disconnect power and allow the lamp to cool completely before handling or replacement. Projection lamps run at high temperature and stay hot well after switch-off.
• Do not touch the quartz envelope with bare hands. Skin oils cause localized overheating of the quartz and can lead to premature failure or rupture. Clean with isopropyl alcohol if the envelope is touched.
• Quartz halogen lamps operate under pressure. Operate only within an enclosed housing or the equipment for which the lamp is specified.
• Seat the lamp fully in its socket. A partially seated lamp can arc at the contacts and overheat the lampholder.
• Observe the HD burn position restriction. Operating outside the permitted orientation shortens life and can cause early failure.
• Ensure the equipment provides the cooling airflow it was designed with. Projection lamps depend on forced or convected air to stay within their thermal limits.
• Keep combustible materials clear of the lamp and lamphouse.
• Do not exceed the rated voltage. Overvoltage operation sharply reduces lamp life.
• Follow the equipment manufacturer's instructions for lamp installation and alignment.
• This lamp contains no mercury. Recycle or dispose of it in accordance with local requirements.

Compliance

• GE warning and caution notice reference: A. Refer to GE's published notices for this order code before specification or installation.
• Contains no mercury. Not subject to mercury lamp disposal or shipping restrictions.
• Rated life is stated per ANSI standard design life.
• Dispose of in accordance with local regulations.

Ordering Information

• Brand: GE Lighting
• Order Code: 37695
• Description / ANSI Code: DZE/FDS
• Directly Replaces: FDS
• UPC: 043168376952
• Family: Quartzline® Single-Ended
• Case Quantity: 24
• Lamp: 150W, 24V, T4 bulb, GZ9.5 2-Pin Prefocus base, C-6 Oval filament
• Dimensions: 2.68 in MOL, 1.31 in LCL
• Rated Life: 100 hours
• Burn Position: HD
• Related lamps in this family: BRL (50W 12V, order code 18234); DVY (650W 120V, order code 30304); DYH (600W 120V, order code 30364); DYP (600W 120V, order code 32071); DYR (650W 220V, order code 33248); DYR (650W 240V, order code 33250); DYS-5 (600W 120V, order code 19479); DYS/DYV/BHC (600W 120V, order code 32955)
