Product Overview

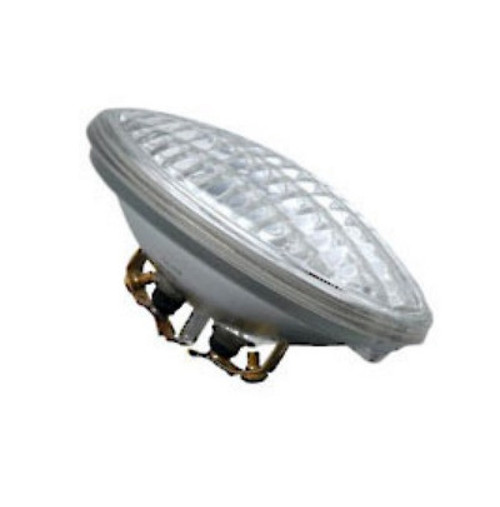

GE 4014 #24338 — PAR36 Emergency Building Light Sealed Beam Lamp, 18W 6.4V
The GE 4014 (order code 24338) is an 18W 6.4V PAR36 sealed beam lamp listed in GE's Miniature, Sealed Beam and Automotive Lamps catalog under the application “Emergency Building Light”. Rated life is 200 hours.
Select this lamp by matching the GE lamp number, order code, voltage, wattage, base style, and beam pattern to the installed fixture. Confirm compatibility before ordering.
|
Wattage
18W
GE Lamp
|
Voltage
6.4V
Rated
|
Lamp Shape
PAR36
Sealed Beam
|
MBCP
1,500
Catalog Value
|
Life
200 h
Rated Avg.
|
Product Overview
A PAR36 sealed beam lamp has its filament, reflector, and lens factory-sealed as one unit, so the beam pattern is fixed by the lamp. Beam spread, intensity, voltage, and base style therefore determine which lamp number is correct for a given fixture, and like-for-like replacement is the safest approach.
Technical Specifications
| Brand | GE Lighting |
| Order Code | 24338 |
| GE Lamp No. | 4014 |
| Description | GE 4014 PAR36 Emergency Building Light 18W 6.4V |
| Application | Emergency Building Light |
| Bulb Shape | PAR36 (nominal 4.5 in diameter) |
| Voltage | 6.4 V |
| Wattage | 18 W |
| Maximum Beam Candlepower (MBCP) | 1,500 |
| Beam Spread to 10% MBCP (Horizontal × Vertical) | 50° H × 25° V |
| Base | Screw Terminals |
| MOL | 2.75 in |
| Rated Life | 200 hours |
| Bulk Pack Quantity | 60 |
| UPC | 043168243384 |
Typical Applications
- Catalog application: Emergency Building Light
- Replacement in fixtures that specify GE lamp no. 4014
- 6.4V systems rated for 18W per lamp
- Fixtures that accept a PAR36 lamp with Screw Terminals (per the catalog)
Before Ordering Verify
- GE Order Code: Confirm the installed lamp or fixture documentation calls for GE 4014 / order code 24338.
- Electrical Rating: Confirm the fixture operates at 6.4V and 18W.
- Base Type: Confirm the socket or connector matches Screw Terminals.
- Beam Pattern: Confirm the required beam spread (50° H x 25° V).
- Physical Fit: Verify MOL (2.75 in) and fixture clearance before ordering.
- Burn Position: The catalog does not list a burn position for this lamp. Follow the fixture manufacturer's instructions.
Safety & Installation Guidelines
- Qualified Installation: Install by qualified personnel following fixture and site procedures.
- Disconnect Power: De-energize circuits before installing or removing the lamp.
- Use Correct Replacement: Do not substitute lamps unless the fixture manufacturer permits it.
- Allow Cooling: Let the lamp and fixture cool before handling.
No GE warning or caution notice is listed for this lamp in the catalog. Follow the precautions above and the fixture manufacturer's instructions.
