Product Overview

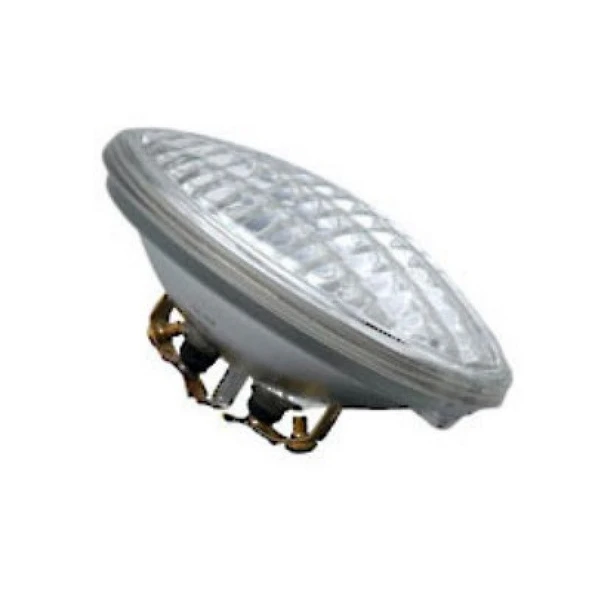

GE Q7561 #28874 — PAR36 Landscape Lighting Sealed Beam Lamp, 18W 12.0V
The GE Q7561 (order code 28874) is an 18W 12.0V PAR36 sealed beam lamp listed in GE's Miniature, Sealed Beam and Automotive Lamps catalog under the application “Landscape Lighting”. Rated life is 5000 hours.
Select this lamp by matching the GE lamp number, order code, voltage, wattage, base style, and beam pattern to the installed fixture. Confirm compatibility before ordering.
|
Wattage
18W
GE Lamp
|
Voltage
12.0V
Rated
|
Lamp Shape
PAR36
Sealed Beam
|
MBCP
11,000
Catalog Value
|
Life
5000 h
Rated Avg.
|
Product Overview
A PAR36 sealed beam lamp has its filament, reflector, and lens factory-sealed as one unit, so the beam pattern is fixed by the lamp. Beam spread, intensity, voltage, and base style therefore determine which lamp number is correct for a given fixture, and like-for-like replacement is the safest approach.
Technical Specifications
| Brand | GE Lighting |
| Order Code | 28874 |
| GE Lamp No. | Q7561 |
| Description | GE Q7561 PAR36 Landscape Lighting 18W 12.0V |
| Application | Landscape Lighting |
| Bulb Shape | PAR36 (nominal 4.5 in diameter) |
| Voltage | 12.0 V |
| Wattage | 18 W |
| Maximum Beam Candlepower (MBCP) | 11,000 |
| Beam Spread to 10% MBCP (Horizontal × Vertical) | 9° H × 8° V |
| Base | Screw Terminals |
| MOL | 2.75 in |
| Rated Life | 5000 hours |
| Case Quantity | 12 |
| Catalog Footnotes / Notices | 301 |
| UPC | 043168288743 |
Typical Applications
- Catalog application: Landscape Lighting
- Replacement in fixtures that specify GE lamp no. Q7561
- 12.0V systems rated for 18W per lamp
- Fixtures that accept a PAR36 lamp with Screw Terminals
Before Ordering Verify
- GE Order Code: Confirm the installed lamp or fixture documentation calls for GE Q7561 / order code 28874.
- Electrical Rating: Confirm the fixture operates at 12.0V and 18W.
- Base Type: Confirm the socket or connector matches Screw Terminals.
- Beam Pattern: Confirm the required beam spread (9° H x 8° V).
- Physical Fit: Verify MOL (2.75 in) and fixture clearance before ordering.
- Burn Position: The catalog does not list a burn position for this lamp. Follow the fixture manufacturer's instructions.
Safety & Installation Guidelines
- Qualified Installation: Install by qualified personnel following fixture and site procedures.
- Disconnect Power: De-energize circuits before installing or removing the lamp.
- Use Correct Replacement: Do not substitute lamps unless the fixture manufacturer permits it.
- Allow Cooling: Let the lamp and fixture cool before handling.
GE Warning and Caution Notice 301
- WARNING – Risk of fire: Keep combustible materials away from lamp; Use in fixture rated for this product.
- WARNING – A damaged lamp emits UV radiation which may cause eye/skin injury: Turn power off if glass bulb is broken. Remove and dispose of lamp.
- WARNING – Pressurized lamp—unexpected rupture may cause injury, fire, or property damage: Use in enclosed fixture rated for this product; Do not use lamp if outer glass is scratched or broken.
- CAUTION – Risk of burn: Allow lamp/fixture to cool before handling.
- CAUTION – Lamp may shatter and cause injury if broken: Do not use lamp if outer glass is scratched or broken; Dispose of lamp in a closed container.
