Product Overview

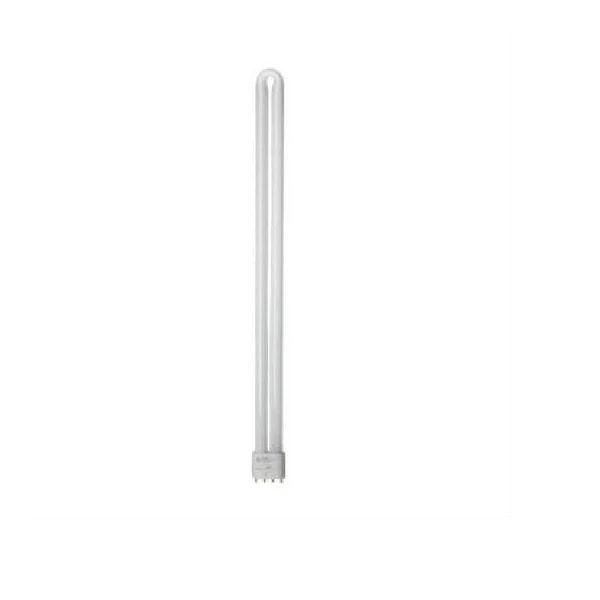

GE 41128 F24BX/827 – 24W | 2700K Soft White | 1,800 lm | 2G11 4-Pin
The GE 41128 F24BX/827 is a 24W 2700K Soft White Biax™ L 4-pin plug-in compact fluorescent lamp with a 2G11 cap, delivering 1,800 initial lumens, CRI 82, and 10,000-hour rated average life. The GE catalog lists this lamp as external starter required; it is not a self-ballasted lamp.
|
Wattage
24W
CFL
|
Color Temp
2700K
Soft White
|
Lumens
1,800 lm
Initial lm
|
Rated Life
10,000
Hours
|
Cap Type
2G11
4-Pin
|
Quick Specs
- Brand: GE
- Product Code: 41128
- Product Description: F24BX/827
- Product Family: Biax™ L – 4 pin, external starter required
- Wattage: 24W
- Cap: 2G11 (4-pin)
- Reference Length: 320 mm
- Length with Cap Contact Pin: 326.8 mm
- Color Temperature: 2700K Soft White
- CRI Ra: 82
- Initial Lumens: 1,800 lm
- Rated Average Life: 10,000 hours
- Volts: 91
- Current I (A): 0.34
- EE Class: B
- Pack Quantity: 25
- Starter: External starter required (catalog heading)
- Dimming: Not listed in catalog
Product Overview
The GE 41128 F24BX/827 is a 24W 2700K Soft White Biax™ L lamp rated at 1,800 initial lumens with a CRI Ra of 82 and a rated average life of 10,000 hours. It has a 320 mm reference length and a 2G11 4-pin cap, and is catalogued by GE as a 4-pin lamp that requires an external starter. Lamp voltage is listed as 91 V at 0.34 A, EE class B.
Dimming operation is not listed in the GE catalog; do not install on a dimmer circuit unless the ballast manufacturer specifies compatibility.
Applications
- 2G11 4-pin fixtures – Fixtures built for 2G11 4-pin plug-in lamps. Confirm base, length, wattage, and ballast compatibility before ordering.
- Retrofit and maintenance replacement – Like-for-like replacement for 24W 2G11 lamps of the same length. 2700K (Soft White) matches the color temperature of the lamp being replaced when that lamp is also 2700K.
Replacing Your Current 2G11 Lamp?
- Base type – confirm 2G11: This lamp uses a 2G11 4-pin cap. Check your fixture socket; 2-pin and other 4-pin bases are not interchangeable.
- Length: Reference length 320 mm. Compare against the lamp you are replacing; 2G11 lamps of different wattage have different lengths.
- Ballast and starter: The catalog lists this lamp as external starter required. Confirm the control gear is rated for 24W 2G11 lamps.
- Color temperature – 2700K: Match the color temperature of the lamps you are replacing.
- Dimmable: Not listed in the catalog.
Ordering Information
- Brand: GE
- Product Code: 41128
- Product Description: F24BX/827
- Wattage / CCT: 24W / 2700K Soft White
- Cap: 2G11 (4-pin)
- Pack Quantity: 25. Contact ADL Supply for volume orders.
Compliance
- Catalog heading: Biax™ L – 4 pin, external starter required.
- This lamp contains mercury — dispose per local lamp recycling regulations.
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
ADL Supply recommends confirming all specifications with the manufacturer product data sheet prior to installation.
