GE 61368 LU100/SBY/XL/ECO

Product Overview

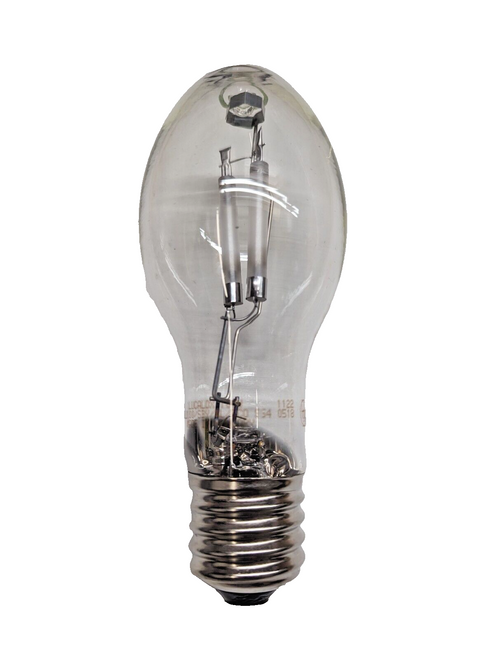

GE 61368 LU100/SBY/XL/ECO — 100W Standby Longlife HPS Lamp, E39 Base

The GE 61368 LU100/SBY/XL/ECO is a 100-watt Ecolux® Standby Longlife TCLP-compliant HPS lamp with dual arc tubes with a ED23.5 bulb and E39 Mogul Screw base, designed for HPS ballast circuits rated ANSI S54. It delivers 9,200 initial lumens at 2000K and is rated for 40,000 hours.

WATTAGE

100W

HPS / HID

LUMENS

9,200 lm

Mean: 8,190 lm

CCT

2000K

Warm Amber

BASE

E39

Mogul Screw

RATED LIFE

40,000 hrs

Average Life

Technical Specifications

GE Order Code	61368
GE Model / Description	LU100/SBY/XL/ECO
Lamp Type	High Pressure Sodium (HPS) — Lucalox
Bulb Shape	ED23.5
Base Type	E39 Mogul Screw
Burning Position	U — Universal (any burning position)
Fixture Enclosure Rating	O — Open or enclosed fixture (per GE datasheet)
Maximum Overall Length (MOL)	7.75"
Light Center Length (LCL)	5"
Wattage	100W
ANSI Ballast Type	S54
Case Quantity	12
Rated Life	40,000 hours
Initial Lumens	9,200 lm
Mean Lumens	8,190 lm
Color Temperature	2000K
CRI	22
Lamp Finish / Additional Info	Clear, Standby Longlife, Dual Arc Tube, TCLP Compliant
UPC / EAN	043168613682
Mercury Content	Contains mercury — dispose per local regulations.

Product Overview

The GE LU100/SBY/XL/ECO is a 100-watt Ecolux® Standby Longlife TCLP-compliant HPS lamp with dual arc tubes. It ships with a ED23.5 bulb envelope on a E39 Mogul Screw base and is built to operate on an HPS ballast rated ANSI S54. Output is 9,200 initial lumens (8,190 mean lumens) at 2000K and 22 CRI, with a warm amber HPS color.

Standby Longlife lamps contain an extra arc tube that provides light instantly after a momentary power interruption and returns to 80% light output in 1–2 minutes. They operate on standard HPS ballasts and auxiliary equipment and use a lead-free base that passes TCLP.

Not recommended for: retail displays, color-critical inspection environments, or any application requiring CRI above 22.

Compatible Applications

Typical uses (per GE): Industrial, roadway, security, and hard-to-reach sockets.
Fixtures wired for an HPS ballast rated ANSI S54 with a E39 Mogul Screw socket.
Direct replacement for existing 100W HPS lamps with the same base and ballast rating. Verify ballast compatibility before ordering.
Burning position: U (Universal — any burning position).

Before Ordering — Verify

ANSI / Ballast Code: Confirm the existing lamp or ballast label matches S54.
Wattage: Confirm the fixture is rated for 100W.
Base Type: Confirm the socket matches E39 Mogul Screw.
Ballast Compatibility: This lamp requires an HPS-rated ballast and ignitor. It will not operate on a metal halide or mercury vapor ballast.
Burn Position: HPS lamps are not position-sensitive — no orientation restriction.
Physical Fit: Confirm lamp shape (ED23.5), length (7.75" MOL), and clearance against the existing lamp or fixture manual.
Confirm order code 61368 (GE LU100/SBY/XL/ECO) exactly matches the lamp or ballast label on your existing fixture before purchasing a replacement.
Case pack quantity is 12; confirm this meets your order needs.

Safety and Handling Guidelines

Correct Ballast Required: Use only with an HPS-compatible ballast and ignitor rated for this lamp. An incompatible ballast can cause lamp failure or fixture damage.
Vacuum Jacket: This is a vacuum jacket lamp and may implode if broken. Wear safety glasses and gloves when installing or removing the lamp, and allow it to cool fully first.
Sodium Content: The lamp contains sodium — avoid skin contact with broken pieces (chemical burn risk).
Warm-Up / Restrike: Per GE, HPS lamps take about 3–4 minutes to reach 90% light output after starting, and about 1 minute after a brief power interruption.
Approved Fixtures Only: Install only in fixtures rated for the listed lamp type, wattage, and operating position; do not use if the outer glass is scratched or broken.
Mercury Content: Contains mercury. Do not dispose of in regular trash; recycle through an approved lamp recycling program in accordance with federal, state, and local regulations.

Compliance

Ecolux® lamps use a lead-free base and pass TCLP per the GE catalog, which can lower disposal costs.
Contains mercury — subject to applicable lamp recycling and disposal regulations. California, Washington, and other states may have mandatory take-back or handling fee requirements.
Verify additional certifications (UL, Title 20, Prop 65) with the GE specification sheet prior to use in regulated installations.
