Product Overview

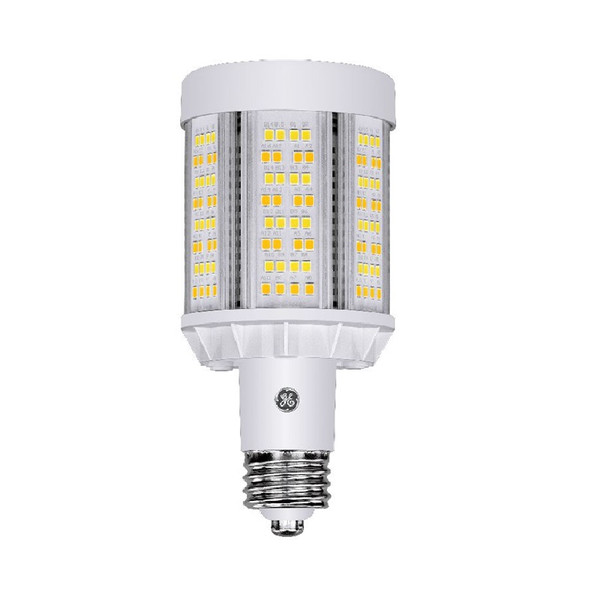

GE 93318489 LED HID Replacement Lamp ED17 Selectable - LED/LC/ED17P/7WSC/120-347
The GE Passive Cooling LED HID replacement lamp is a Type B ballast-bypass retrofit for HID applications, with field-selectable wattage, lumen output, and color temperature on a single E26 medium base lamp. One lamp covers multiple HID replacement scenarios, reducing the number of SKUs needed in inventory. Rated for 50,000 hours of operating life with a 5-year limited warranty.
|
Selectable Watts
13 / 19 / 25W
|
Max Lumens
Up to 3,900 lm
|
Selectable CCT
1800K / 2200K / 2700K
|
Voltage
120-347V
|
Quick Specs
- Brand: GE
- Product Code / SKU: 93318489
- Manufacturer Part Number: LED/LC/ED17P/7WSC/120-347
- UL Type: Type B (ballast bypass)
- Bulb Shape: ED17
- Base: E26 Medium
- MOL (Length): 5.6 in
- Diameter: 2.6 in
- Selectable Wattage: 13W / 19W / 25W
- Voltage: 120-347V
- CRI: 70
- Rated Life: 50,000 hours
- Operating Temp: -40°C to 50°C
- Dimmable: Not compatible with phase-cut dimmers; use the integrated switch to select wattage/CCT
- Location Rating: Damp, Enclosed
- Safety Certification: cULus
- Standard Pack Quantity: 3
- UPC: 662049525816
- Warranty: 5-year limited
Selectable Lumens & Efficacy by Color Temperature
| CCT | 13W | 19W | 25W |
|---|---|---|---|
| 1800K (Lumens / LPW) | 1,600 lm / 123 LPW | 2,200 lm / 116 LPW | 2,800 lm / 112 LPW |
| 2200K (Lumens / LPW) | 2,000 lm / 154 LPW | 2,700 lm / 142 LPW | 3,400 lm / 136 LPW |
| 2700K (Lumens / LPW) | 2,200 lm / 169 LPW | 3,000 lm / 158 LPW | 3,900 lm / 156 LPW |
Wattage and color temperature are field-selectable using the lamp's integrated switch — one lamp stocks as multiple HID replacement options.
Product Overview
This GE Type B LED lamp is a ballast-bypass retrofit for HID fixtures, combining long operating life with energy savings and omnidirectional output compatible with existing fixture optics. Selectable wattage, lumen package, and color temperature let one lamp serve multiple HID replacement scenarios, simplifying inventory and adapting to field conditions without stocking separate SKUs per wattage or CCT.
Compatible Applications
- HID retrofit projects using existing fixture housings (ballast removed/bypassed)
- Area, site, wall pack, canopy, and high-bay fixtures where ED17 lamp form factor is used
- Commercial and industrial applications seeking LED energy savings with selectable output
Before Ordering – Verify
- Confirm fixture ballast has been bypassed; this is a Type B lamp not intended for use with an existing ballast
- Confirm dimming method — not compatible with phase-cut dimmers; use the lamp's built-in switch for wattage/CCT selection
- Confirm fixture is rated for Damp or Enclosed locations as applicable to install location
- HID wattage replacement equivalency should be confirmed against your specific fixture and ballast specs before ordering
Compliance
- Safety Certification: cULus
- Location Rating: Damp, Enclosed
- DLC status not confirmed — verify current QPL listing
Ordering Information
For help selecting the correct wattage, CCT, or fixture-compatible HID replacement lamp, contact ADL Supply at 1-800-235-3489.
