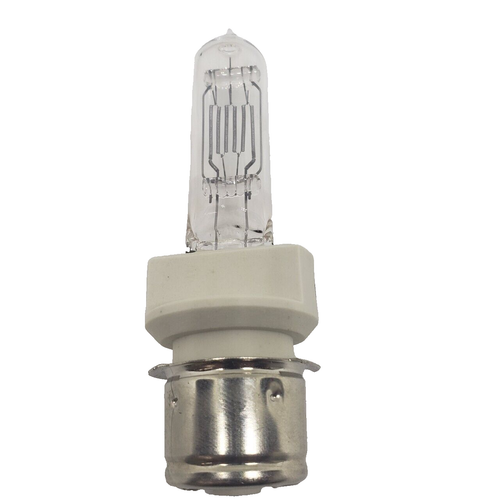

GE Quartzline® BTN 88605 Halogen Display Optic Lamp — 750W | 120V Line Voltage | 17,000 Lumens | P28s Medium Prefocus Base

The GE Quartzline® Professional BTN (88605) Lamp is a commercial-grade, high-intensity line-voltage tungsten halogen capsule engineered for theatrical stage fixtures, television studio fresnels, optical projection equipment, high-end retail showcases, and museum exhibition spotlights. Producing 17,000 initial lumens of brilliant 3050K warm white illumination, this compact T7 clear bulb features an advanced ANSI BTN specification code tracking profile and utilizes a precision-aligned C-13D planar filament to achieve a flawless color rendering index of 100 CRI. Outfitted with a heavy-duty P28s medium prefocus base and a high-purity clear quartz envelope, it ensures perfect optical focal positioning across its 500-hour rated service life.

ADL Supply Expert Application & Replacement Guide

The GE Quartzline® BTN halogen lamp is an established industry photo-optic baseline specified universally across theatrical stage profiles, TV studio fresnels, commercial exhibit spaces, high-end retail gallery tracks, and specialized industrial optical instrumentation. Utilizing a high-purity clear quartz tubular capsule surrounding an expertly engineered C-13D planar grid filament, this lamp projects a continuous, uninterrupted full-spectrum light beam. This allows directors of photography, camera technicians, and lighting gaffers to capture absolute color fidelity, natural textures, and accurate skin tones without dealing with the visual color rendering drops or frequency gaps common in alternative lighting platforms.

Critical 120V Line Voltage Parameters and Mechanical P28s Prefocus Seating Controls: Maintenance crews and studio technicians executing routine replacement loops must analyze fixture socket parameters closely prior to checkout: this lamp operates natively on raw 120V line voltage circuits and connects via a flanged P28s medium prefocus base layout. The flanged prefocus base incorporates asymmetrical orientation wings that slide exclusively into matched slots in the fixture socket collar, ensuring the planar filament grid remains perfectly square to the lens assembly.

Push the lamp down firmly into the prefocus collar, rotate clockwise to lock the structural flange into position, and verify it sits fully flush to achieve the fixture's intended center-beam focus. Never attempt to force this line-voltage capsule into low-voltage studio housings or unkeyed sockets, as this will prevent ignition or arc-over and destroy the fixture wiring tracks.

Detailed Product Specifications

• Brand Name: GE Lighting (Current Lighting Solutions / Quartzline® Display Optic Portfolio)
• Product Series Line: Quartzline® High-Output Entertainment Tungsten Halogen Series
• GE Factory Product Order Code SKU: 88605
• Official Industry ANSI Equipment Code: BTN
• Manufacturer Description Model Abbreviation: BTN 750W 120V
• UPC Barcode Number (GTIN-12): 043168886055
• Core Technology Class: Thermal Incandescent — High-Temperature Tungsten Halogen Capsule
• Primary Control Requirement: Direct Unballasted Line Voltage (120V Mainline Branch Input)
• Operational Power Draw: 750 Watts
• Nominal System Operating Voltage: 120 Volts AC/DC Compatible
• Initial Luminous Brightness: 17,000 Lumens (Post standard factory seasoning burn)
• Color Temperature Configuration: 3050K Warm White (Clear High-Purity Quartz Glass Casing)
• Color Rendering Index (CRI): 100 Ra (Flawless Continuous Full-Spectrum Energy Distribution)
• Filament Type Geometry Class: C-13D (Precision Calibrated Planar Monoplane Grid Tungsten Filament)
• Base Type Configuration: P28s Medium Prefocus Base (Flanged mechanical positioning layout)
• Maximum Base Shell Temperature Limit: 350°C (662°F Maximum Safe Surface Threshold)
• Maximum Bulb Wall Operating Temperature: 900°C (1652°F Outer Chamber Heat Limit)
• Bulb Shape Enclosure Code: T7 Enclosure (0.875" Inch / 22.2mm actual quartz envelope width)
• Maximum Overall Length (MOL): 4.38" Inches (111.1mm actual body height base face to capsule tip)
• Light Center Length (LCL Dimension): 2.19" Inches (55.6mm precision focal alignment height axis center)
• Rated Average Service Lifespan: 500 Hours (Calibrated high-intensity production threshold baseline)
• Chassis Burn Position Limit: Universal — Operates reliably at any horizontal, vertical, or tilted mounting angle

Operation, Safety & Mounting Compliance

High-Temperature Regenerative Halogen Halide Cycle Controls

This halogen lamp operates via an internal chemical loop where vaporized tungsten particles bond with halogen gas molecules inside the heated chamber. This compound cycles back onto the burning C-13D filament tracks, redepositing the tungsten to preserve filament mass. For this cycle to work cleanly and prevent wall-blackening, the inner envelope must continuously transcend a high temperature threshold, making proper convective venting inside track cylinders or spot enclosures mandatory.

Commercial Equipment Industry Cross-References

This premium 750W 120V P28s halogen bulb serves as a direct drop-in replacement or alternative for the following lines:

• Sylvania Alternative Match: 750W T7 Clear P28s Medium Prefocus Halogen / Order Code 58712
• Philips Lighting Match: 750W 120V P28s T7 Clear Display Optic / Catalog Reference 233140
• Osram Reference Line: 64720 750W P28s 120V Special Application Theater Bulb
