Product Overview

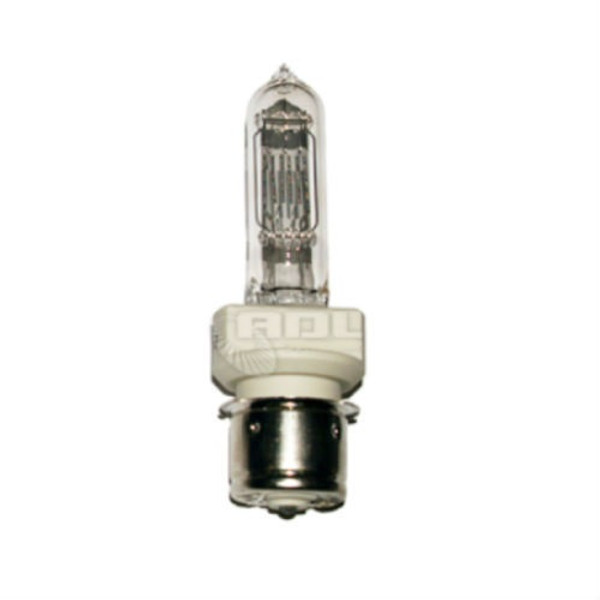

Ushio 1000085 BTN JCS120V-750WBP28 – 750W 120V Halogen Lamp
The Ushio 1000085 BTN JCS120V-750WBP28 is a 750-watt, 120-volt halogen lamp with a Medium Prefocus Base (P28s). Ushio lists it with a 500-hour average life and a 3050K color temperature, rated at 17,000 lumens.
This lamp is identified by the BTN lamp code and is listed under Ushio description JCS120V-750WBP28.
| Wattage 750W Halogen | Voltage 120V Operating | Color Temp 3050K CCT | Lumens 17,000 Initial lm | Rated Life 500 Hrs Average Life |
Product Overview
The Ushio 1000085 is a JCS-series halogen lamp listed in the Halogen Prefocus Bayonet • SSTV section of the Ushio halogen catalog. Per Ushio, this lamp is for use only in approved enclosed halogen fixtures.
Always confirm the lamp code, wattage, voltage, base type, and burn position against your existing lamp or equipment manual before ordering.
Why Choose This Product
- BTN Lamp Code: Helps match the lamp to equipment specified for this lamp code.
- 750W at 120V: Wattage and voltage as published by Ushio for catalog number 1000085.
- Published Output: 17,000 lumens and 3050K color temperature per the Ushio catalog.
- 500-Hour Rated Life: Ushio’s published average life for this lamp.
- P28s Base: Medium Prefocus Base (P28s).
- Burn Position: Base Down to Horizontal (BD/Hor).
Technical Specifications
| Brand | Ushio |
| Ushio Catalog Number | 1000085 |
| UPC | 048777105603 |
| ANSI / Common Lamp Code | BTN |
| Manufacturer Description | JCS120V-750WBP28 |
| Lamp Series | JCS |
| Catalog Category | Halogen Prefocus Bayonet • SSTV |
| Wattage | 750W |
| Operating Voltage | 120V |
| Color Temperature | 3050K |
| Initial Lumens | 17,000 |
| Rated Average Life | 500 Hours |
| Base Type | Medium Prefocus Base (P28s) |
| Filament Type | C-13D |
| Burn Position | Base Down to Horizontal (BD/Hor) |
| Bulb Diameter (A) | 23.0 mm |
| Maximum Overall Length (MOL, B) | 127.0 mm |
| Light Center Length (LCL) (C) | 55.5 mm |
| Manufacturer Case Quantity | 50 |
Compatible Applications
- Fixtures and equipment specified for the BTN JCS120V-750WBP28 lamp
- Equipment in the SSTV category, as listed in the Ushio catalog
- Maintenance replacement where voltage (120V), wattage (750W), base (P28s), and burn position all match
- Approved enclosed halogen fixtures only, as required by Ushio
Cross Reference Numbers
- Ushio Catalog Number: 1000085
- ANSI / Common Lamp Code: BTN
- Manufacturer Description: JCS120V-750WBP28
- UPC: 048777105603
- Common Search Terms: BTN lamp, BTN JCS120V-750WBP28, JCS120V-750WBP28, 750W 120V halogen lamp
Before Ordering Verify
- Voltage: This lamp is rated for 120V operation. Do not install in fixtures requiring a different voltage.
- Wattage: Confirm your equipment is rated for a 750W lamp.
- Base Type: Confirm the socket matches the Medium Prefocus Base (P28s).
- Burn Position: Ushio lists this lamp for base down to horizontal (bd/hor) operation; confirm it matches how your fixture holds the lamp.
- Dimensions: Ushio lists a maximum overall length of 127.0 mm and a bulb diameter of 23.0 mm; confirm they fit your fixture.
Important Safety & Installation Notes
- Do Not Touch the Bulb With Bare Hands: Skin oils can create hot spots that may cause premature failure. Use clean gloves or a lint-free cloth.
- Use Approved Fixtures Only: Ushio specifies this lamp for use only in approved enclosed halogen fixtures. Install only in equipment designed for this lamp type, wattage, and voltage.
- Allow Cooling Before Replacement: Let the lamp and fixture cool before handling or replacing.
- Verify Voltage Before Installing: Operating above rated voltage can significantly shorten lamp life or cause lamp failure.
- Disconnect Power: Turn off and disconnect power before installing or removing the lamp.
Wholesale Lighting Supply & Project Support
ADL Supply supports commercial buyers, contractors, maintenance teams, and specialty lighting accounts with replacement lamp sourcing, project quoting, and volume order support.
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
