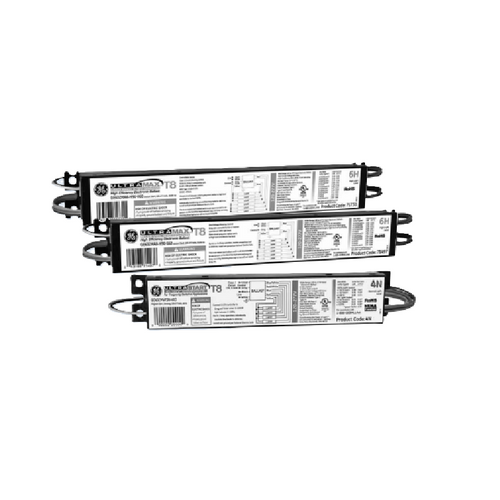

GE 75382 GE432-MVPS-N-V03 UltraStart — 3-4 Lamp T8 0-10V Dimming Electronic Ballast, 120-277V, Programmed Start
The GE 75382 GE432-MVPS-N-V03 UltraStart is a 3-4 lamp T8 electronic 0-10V dimming ballast from GE Lighting, designed for commercial T8 fluorescent dimming systems with 0-10V low-voltage control. Universal voltage input covers 120–277V ±10%. Programmed rapid start, full dimming range 100% to 3%, parallel lamp circuit, normal ballast factor, anti-striation control, Class A sound rating, UL Type CC / Type 1 Outdoor / Type HL / Class P, NEMA LL-9 compliant, RoHS, UL 55C high-temperature rated. Sold in cases of 10. Compatible with Class 1 or Class 2 0-10VDC controllers. Verify lamp type, lamp count, and input voltage before ordering.
|
Lamp Count
3–4 Lamps
T8 Fluorescent
|
Input Voltage
120–277V
±10% Universal
|
Dimming
0-10V
100% to 3%
|
Start Type
Programmed
Rapid Start
|
Case Temp
70°C Max
158°F
|
Technical Specifications
| Brand | GE Lighting — UltraStart |
| GE Product Code | 75382 |
| Model | GE432-MVPS-N-V03 |
| Ballast Type | Electronic — Dimming |
| Lamp Count | 3 or 4 Lamps |
| Compatible Lamp Types | F32T8, F32T8/WM, F28T8 |
| Input Voltage | 120–277V (±10%), 50/60Hz |
| Start Method | Rapid Start (Programmed) |
| Dimming Protocol | 0-10V (Class 1 or Class 2 LV controller) |
| Dimming Range | 100% to 3% |
| Lamp Circuit | Parallel |
| Ballast Factor | Normal — 0.85–0.90 at 100% (varies by lamp type/count; see lamp table below) |
| Power Factor | 98–99% (active correction) |
| Crest Factor | 1.7 |
| Sound Rating | Class A (20–24 dB) |
| Anti-Striation Control | Yes — for use with F32T8/WM or F28T8 lamps |
| Minimum Starting Temperature | 10°F at 100% light level; 15°F at 3% (120V); 30°F at 3% (277V) — varies by dim level and voltage, see lamp table below |
| Maximum Ambient Temperature | 104°F (40°C) |
| Maximum Case Temperature | 70°C (158°F) |
| Dimensions (L x W x H) | 9.5" x 1.7" x 1.18" |
| Mounting Length / Width | 8.9" / 1.18" |
| Weight | 1.65 lb |
| Lead Exit Type | Side |
| Remote Mounting Distance (F32T8) | 5 ft |
| Remote Mounting Wire Gauge | 18 AWG |
| Lead Lengths | White/Black: 25"; Blue/Red, Blue/White, Red/White: 33"; Yellow: 47"; Violet: 25"; Gray: 25" |
| Packaging | 10 per case |
| Listings / Compliance | UL Listed, UL Class P, UL Type CC, UL Type 1 Outdoor, UL Type HL, UL 55C High Temp, NEMA LL-9, ANSI C62.41, FCC Part 18 Class A, RoHS |
Specifications by Lamp and Wattage
| Lamp | Light Level | # Lamps | Line Volts | System Watts | Nom. Line Current | System BF | Power Factor | Min Start Temp (°F) |
|---|---|---|---|---|---|---|---|---|
| F32T8 | 100% | 4 | 120 | 114 | 0.96A | 0.88 | 99% | 10 |
| F32T8 | 100% | 4 | 277 | 111 | 0.41A | 0.88 | 98% | 10 |
| F32T8 | 3% | 4 | 120 | 22 | 0.18A | 0.03 | 99% | 15 |
| F32T8 | 3% | 4 | 277 | 22 | 0.09A | 0.03 | 90% | 30 |
| F32T8 | 100% | 3 | 120 | 94 | 0.79A | 0.90 | 99% | 10 |
| F32T8 | 100% | 3 | 277 | 92 | 0.34A | 0.90 | 99% | 10 |
| F32T8 | 3% | 3 | 120 | 19 | 0.16A | 0.03 | 98% | 15 |
| F32T8 | 3% | 3 | 277 | 18 | 0.08A | 0.03 | 90% | 30 |
| F32T8/WM | 100% | 4 | 120 | 106 | 0.90A | 0.86 | 99% | 10 |
| F32T8/WM | 100% | 4 | 277 | 104 | 0.38A | 0.86 | 98% | 10 |
| F32T8/WM | 3% | 4 | 120 | 22 | 0.18A | 0.03 | 99% | 15 |
| F32T8/WM | 3% | 4 | 277 | 22 | 0.09A | 0.03 | 90% | 30 |
| F32T8/WM | 100% | 3 | 120 | 87 | 0.73A | 0.90 | 99% | 10 |
| F32T8/WM | 100% | 3 | 277 | 85 | 0.32A | 0.90 | 99% | 10 |
| F32T8/WM | 3% | 3 | 120 | 19 | 0.16A | 0.03 | 98% | 15 |
| F32T8/WM | 3% | 3 | 277 | 19 | 0.08A | 0.03 | 90% | 30 |
| F28T8 | 100% | 4 | 120 | 98 | 0.82A | 0.85 | 99% | 10 |
| F28T8 | 100% | 4 | 277 | 95 | 0.36A | 0.85 | 98% | 10 |
| F28T8 | 3% | 4 | 120 | 22 | 0.18A | 0.03 | 99% | 15 |
| F28T8 | 3% | 4 | 277 | 22 | 0.09A | 0.03 | 90% | 30 |
| F28T8 | 100% | 3 | 120 | 79 | 0.70A | 0.90 | 99% | 10 |
| F28T8 | 100% | 3 | 277 | 78 | 0.30A | 0.90 | 99% | 15 |
| F28T8 | 3% | 3 | 120 | 19 | 0.16A | 0.03 | 98% | 15 |
| F28T8 | 3% | 3 | 277 | 19 | 0.08A | 0.03 | 90% | 30 |
Product Overview
The GE 75382 GE432-MVPS-N-V03 is a 0-10V dimming electronic ballast for 3-4 lamp T8 fluorescent commercial lighting systems requiring analog low-voltage dimming control. The ballast dims continuously from 100% down to 3% of rated light output via a connected 0-10V controller (Class 1 or Class 2 LV circuit). Anti-striation control is specifically engineered for use with F32T8/WM or F28T8 lamps, improving visual light quality at dimmed levels for these lamp types.
Rapid start (programmed) preheats cathodes before ignition, supporting reliable deep-dimming performance and extended lamp life under the variable duty cycles typical of dimming installations. Parallel lamp circuit keeps remaining lamps operating if one fails. Universal voltage (120–277V) covers both standard North American commercial circuit voltages from a single SKU. NEMA LL-9 compliance preserves full GE programmed-start life and warranty ratings.
Important — minimum starting temperature varies by dim level and voltage: at 100% output, minimum starting temperature is 10°F across all lamp types; at 3% output on 120V, minimum starting temperature rises to 15°F; at 3% output on 277V, it rises further to 30°F. This is a meaningful difference from a flat single-temperature rating, and should be factored into cold-environment or unheated-space installations where the system may regularly operate at deep dim levels.
Compatible Lamps
- (3–4) F32T8 — standard 48" T8
- (3–4) F32T8/WM — energy-saving 48" T8
- (3–4) F28T8 — 28W T8
Note: This ballast's confirmed compatible lamp list (per manufacturer spec sheet) does not include F25T8 or F17T8 — if your application requires those lamp types, a different GE UltraStart model in this family may be the correct match. Please confirm before ordering.
Compatible Applications
- 0-10V dimming commercial lighting systems — Daylight harvesting, occupancy-based dimming, and automated lighting control in offices, schools, healthcare, and retail.
- Dimming retrofit projects — Universal voltage replaces single-voltage dimming ballasts across mixed 120V and 277V commercial circuits.
- High-temperature fixture installations — UL 55C ambient rating and Type HL listing for elevated-temperature applications.
Before Ordering — Verify
- Dimming Protocol: This ballast requires a 0-10V analog dimming controller — not compatible with DALI, phase-cut, or other dimming protocols.
- Lamp Count: Confirm fixture requires 3 or 4 lamps.
- Lamp Type: Confirm lamps are F32T8, F32T8/WM, or F28T8 — F25T8 and F17T8 are not confirmed compatible with this specific model.
- Input Voltage: Confirm circuit is within 120–277V ±10%.
- Minimum Starting Temperature: Varies from 10°F (100% output) to 30°F (3% output on 277V) — confirm your installation's coldest expected operating condition against the lamp/wattage table above.
- Physical Fit: Confirm 9.5" x 1.7" x 1.18" fits within your fixture's ballast cavity.
Compliance
- UL Listed, UL Class P, UL Type CC, UL Type 1 Outdoor, UL Type HL, UL 55C.
- NEMA LL-9, ANSI C62.41.
- FCC Class A (Non-Consumer). RoHS Compliant.
Ordering Information
- Brand: GE Lighting — UltraStart
- GE Product Code: 75382
- Model: GE432-MVPS-N-V03
- Input Voltage: 120–277V
- Lamp Compatibility: 3–4 lamp F32T8, F32T8/WM, F28T8
- Dimming: 0-10V, 100% to 3%
- Packaging: Sold in cases of 10.
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
For wholesale pricing, bulk availability, or help confirming the correct replacement ballast, contact ADL Supply at 1-800-235-3489.
