HALCO 89170 CSDL-8-LS-CS-ST-DDV

Halco 89170 CSDL-8-LS-CS-ST-DDV — 8" Commercial Slim Downlight, Smooth Trim, 18W Lumen & CCT Selectable, 120-277V Dual Dimming

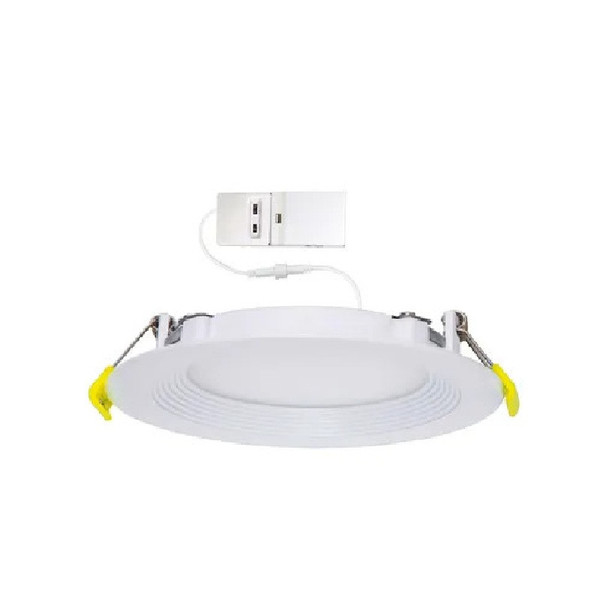

The Halco Commercial Slim Downlight 89170 (CSDL-8-LS-CS-ST-DDV) is an 8-inch canless LED recessed downlight from Halco Lighting Technologies, featuring field-selectable lumen output (1100/1230/1500 lm) and five selectable color temperatures (2700K–5000K). The edge-lit LED engine sits behind a frosted PMMA diffuser with a smooth white trim, and the remote driver box supports both TRIAC/ELV and 0-10V dimming from a single unit. With 90+ CRI, up to 105 lm/W efficacy, 110° wide-flood beam, 50,000-hour L70 life, and ratings for wet locations, IC contact, and air-tight construction, this is the highest-performing fixture in the entire family. cETLus listed, Energy Star certified, Title 24 and JA8 compliant. Not DLC qualified. Verify ceiling cutout (8-1/4"), trim style, and dimming compatibility before ordering.

Technical Specifications

Product Overview

The Halco 89170 is the highest-performing fixture in the Commercial Slim Downlight family, combining an 8-inch smooth trim aperture with an 18W edge-lit LED engine. The smooth trim profile offers the cleanest, most minimalistic appearance in the series, ideal for modern architectural installations where the trim should blend seamlessly into the ceiling plane. Canless spring-clip mounting and a remote driver box with plenum-rated cord simplify both retrofit and new-construction installs.

This SKU delivers the highest lumen output and efficacy in the entire family. Three selectable lumen levels (1100, 1230, or 1500 lm at 2700K) are paired with five CCT options (2700K–5000K). At maximum output, the 89170 produces between 1654 lm at 2700K and 1776 lm at 4000K, with efficacy reaching 105 lm/W — the ceiling of the PDF's stated "up to 105 lumens per watt" claim. The 110° wide-flood beam from the edge-lit engine and frosted PMMA diffuser provides even, glare-free illumination across large areas. TM-30 scores of Rf 92 / Rg 101 confirm excellent color rendering with slight gamut enhancement.

The dual-dimming driver accommodates TRIAC/ELV and 0-10V protocols from a single unit. As with all fixtures in this family, TRIAC/ELV dimming is restricted to 120V input while 0-10V functions across 120-277V. Installers on 277V commercial circuits must use 0-10V dimming exclusively. This fixture carries Energy Star, Title 24, and JA8 certifications but is not DLC listed — a significant consideration if utility rebates are part of the project scope. The 8-1/4" cutout requirement should be verified against existing ceiling openings, as it may not match all standard 8" recessed housing cutouts. Replaceable trims in black, satin nickel, and bronze are available as separate accessories (SKUs 89125, 89128).

Compatible Applications

• Commercial office spaces — Large open offices, corridors, and lobbies with higher ceiling mounting heights.
• Hospitality — Hotel lobbies, large corridors, and ballrooms.
• Healthcare facilities — Waiting areas, large exam rooms, and corridors.
• Retail — High-ceiling retail floors and showrooms.
• Residential — Large kitchens, great rooms, and open-concept living areas.
• Wet locations — Large bathrooms, covered outdoor ceilings, and soffits.
• Insulated ceilings — IC rated for direct contact with thermal insulation.

Before Ordering — Verify

• Ceiling Cutout: Confirm your ceiling cutout is exactly 8-1/4" (8.25") — this may differ from standard 8" housing cutouts.
• Trim Style: Confirm smooth trim (SKU 89170) is correct — the baffle trim version is SKU 89173.
• DLC Status: This fixture is not DLC qualified — do not specify where DLC listing is required for rebate eligibility.
• Dimming Method: TRIAC/ELV dimming requires 120V input; 0-10V dimming supports 120-277V. Verify your dimmer type and line voltage.
• Ceiling Cavity Depth: Confirm sufficient depth to accommodate the remote driver box.
• New Construction: Rough-in pans (SKU 89129 for adjustable 4/6/8") are sold separately.
• Pack Configuration: Verify the "Pack of 6" option set selection if ordering in bulk vs. single units.

Safety and Installation Guidelines

• Disconnect power at the circuit breaker before beginning installation — do not rely on a wall switch alone.
• IC rated for direct contact with thermal insulation; air tight certified per ASTM E283-2004 to prevent airflow through the fixture.
• Wet location rated — suitable for installation in showers, covered outdoor ceilings, and soffits.
• Do not install in ambient temperatures exceeding 40°C (104°F).
• The remote driver box must remain accessible and must not be buried under insulation or concealed in a manner that prevents service access.
• Use only the provided plenum-rated quick-connect cord between the driver and light engine.
• For 0-10V dimming, ensure proper low-voltage wiring from the dimmer control to the driver's 0-10V input terminals.
• For TRIAC/ELV dimming, verify the dimmer is on the manufacturer's compatible dimmer list — tested models include Lutron DVCL-153PR, CTCL-153PDH, and MACL-153MH.
• Do not modify the fixture, driver, or cord in any way — modifications will void the warranty and certifications.
• This product is mercury-free — no special hazardous waste disposal required at end of life.

Compliance

• ETL Listed (cETLus) for wet locations. Energy Star Certified (ID: 3845272).
• California Title 24 Compliant. JA8 Compliant.
• RoHS compliant — contains no lead or mercury. No mercury-related shipping restrictions apply.
• FCC Part 15 Compliant. IC Rated for direct contact with insulation.
• Air Tight Certified (ASTM E283-2004). Not DLC Qualified.
• 5-year limited warranty.

Ordering Information

• Order Number: 89170
• Product Code: CSDL-8-LS-CS-ST-DDV
• Trim: Smooth, White
• Size: 8" (8-1/4" ceiling cutout)
• UPC: 807154891702
• Packaging: Sold individually; Pack of 6 option available. Master carton: 20 units.
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

For wholesale pricing, bulk availability, or help confirming the correct replacement fixture, contact ADL Supply at 1-800-235-3489.
