Halco ProLED Select Backlit Panel BPL-22-WS-CS-U 90364 2x2 Wattage and CCT Selectable

Halco ProLED Select Backlit Panel BPL-22-WS-CS-U (90364) – 2x2, Wattage and CCT Selectable

The Halco ProLED Select Backlit Panel BPL-22-WS-CS-U (Halco product 90364) is a 2x2 direct-backlit flat panel, field-selectable across wattage (20W/30W/35W) and color temperature (3500K/4000K/5000K) via dipswitches on the driver. It delivers 2,454 – 4,044 lm at 110–135 LPW depending on the selected settings, and runs on 120-277VAC input. Rated for damp locations and IC rated. Confirm wattage step, CCT setting, and mounting method before ordering.

Technical Specifications

Product Overview

The ProLED Select Backlit Panel Series is a high-performing, efficient flat panel for commercial and industrial applications. Both wattage and CCT are field-selectable via dipswitches, making a single SKU cover multiple lumen packages and color temperatures – this 2x2 model covers 20W/30W/35W across 3500K, 4000K, and 5000K.

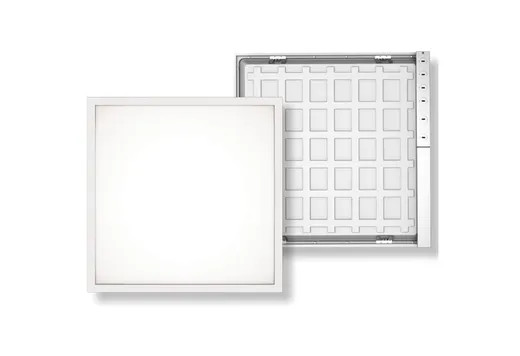

The panel uses a direct backlit design in an aluminum housing with a diffused lens, multiple knockouts on the driver compartment, and low-voltage wiring accessible through the AC wiring compartment. It ships for standard installation; surface mount and flange mount kits are available separately for other ceiling types, and an emergency battery backup option is available with the matching mounting bridge accessory.

Compatible Applications

• Commercial office and retail ceiling lighting
• Industrial and warehouse general lighting
• Suspended (T-bar) ceiling grid installations
• Surface-mount or flange-mount ceiling applications (with the matching accessory kit)
• Damp location applications

Before Ordering – Verify

• Both wattage and CCT are field-selectable, not fixed. Set both dipswitches to the desired output before final installation – confirm the installer knows which settings the customer wants.
• Confirm panel size: this is the 2x2 model (20W/30W/35W). Halco also stocks this series in other sizes with their own wattage ranges – confirm the correct size for the ceiling grid or opening.
• This panel ships for standard/recessed mounting. Surface mount (SMK) and flange mount (FMK) kits are sold separately and are size-specific – confirm the correct kit for this panel size.
• Emergency battery backup requires both the VPL/EM/LED3 battery module and the correctly sized mounting bridge (EMMB1 for 1x4, EMMB2 for 2x2/2x4) – confirm all three parts are ordered together if battery backup is required.
• Lumens and efficacy vary by both wattage and CCT setting – use the full breakdown in Ordering Information for the exact output at the selected combination, not just the overall range.

Safety and Handling Guidelines

• De-energize the circuit before installing or servicing the fixture.
• Set the wattage and CCT dipswitches before final installation is complete; the driver compartment may be less accessible once the panel is installed in the ceiling.
• Damp Location rated only – confirm the installation location does not require a Wet Location rating.
• IC rated for direct contact with insulation, but confirm local code requirements for the specific installation.
• Use only with a dimmer or control confirmed compatible with 0-10V dimming.

Compliance

• Listings: DLC Standard, ETL Listed, FCC, RoHS Compliant.
• Damp Location, IC Rated.
• DLC listed – may qualify for utility rebate programs; confirm current DLC listing status (Standard vs. Premium) before quoting a rebate-dependent project.
• All specifications are subject to change by the manufacturer; the current Halco published specification governs.

Ordering Information

• Product code: BPL-22-WS-CS-U  |  Halco product number: 90364  |  ADL Supply SKU: HAL90364
• Configuration: 2x2, 20W/30W/35W wattage selectable, 3500K/4000K/5000K CCT selectable, 120-277VAC.
• Lumens and efficacy by wattage and CCT: 20W: 3500K 2454 lm (123 LPW), 4000K 2577 lm (129 LPW), 5000K 2523 lm (126 LPW); 30W: 3500K 3319 lm (111 LPW), 4000K 3521 lm (117 LPW), 5000K 4044 lm (135 LPW); 35W: 3500K 3790 lm (110 LPW), 4000K 4024 lm (115 LPW), 5000K 3859 lm (110 LPW).
• Accessories (sold separately, size-specific): surface mount kit (SMK) and flange mount kit (FMK) for this panel size; emergency battery mounting bridge (EMMB1 for 1x4, EMMB2 for 2x2/2x4) plus the VPL/EM/LED3 16W emergency battery module.
• Warranty: 5-year standard limited warranty (Halco).

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
