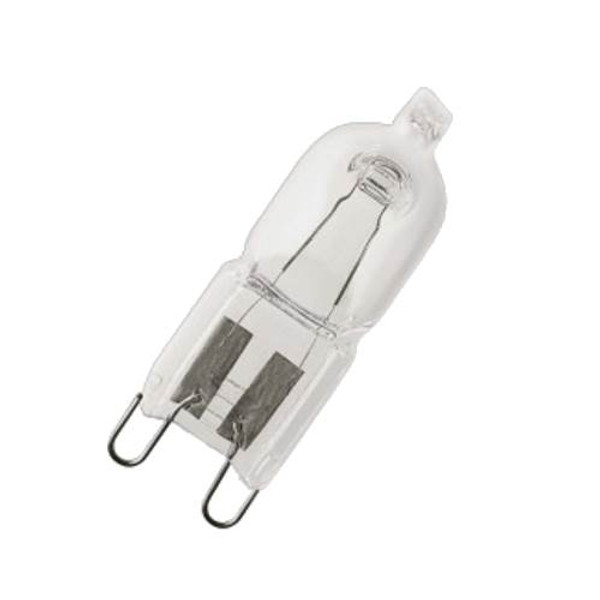

OSRAM HALOPIN | 60W G9 | 120V UV-Filter Halogen

The Osram 66760 (Halopin) is an incredibly compact, line-voltage halogen capsule that delivers high-intensity light without the need for a bulky transformer. Producing 820 initial lumens, this 60W T4 lamp is designed with innovative pinch technology for a robust filament that thrives in modern, slim luminaire designs. It provides a warm 2800K glow with a perfect 100 CRI, making it ideal for brilliant accent lighting in residential and commercial spaces. Featuring an integrated safety fuse function, the lamp complies with IEC 60432-2, ensuring it shuts down reliably at the end of its 2,000-hour rated life.

Product Overview

The Osram Halopin series revolutionized the lighting industry as one of the first halogen lamps to operate directly on 120V power within such a small envelope. The axial filament ensures even light distribution, while the UV-filter glass protects against the fading of illuminated materials. Its G9 plug-in base allows for quick, tool-free replacement in wall sconces, pendants, and furniture luminaires. Because it does not require a transformer, it reduces both fixture size and potential points of electrical failure. This lamp is fully dimmable, allowing users to transition from bright task lighting to a soft, warm ambiance with ease.

• No Transformer Required: Operates directly on standard 120V household or commercial circuits.
• Safe Operation: Approved for use in open luminaires (IEC 60598-1) with a built-in fuse for reliable shutdown.
• Superior Rendering: CRI 100 ensures that colors appear vibrant and natural, exactly as they would under sunlight.
• Innovative Design: Lower thermal output than standard halogen capsules allows for more creative luminaire designs.

Technical Specifications

• Brand: Osram / Sylvania
• Model: Halopin 66760 (HSGST/C/UB-60-120-G9-26.5)
• Wattage: 60W
• Voltage: 120V
• Luminous Flux: 820 Lumens
• Color Temperature: 2800K (Warm White)
• CRI: 100 / Ra 100
• Rated Average Life: 2,000 Hours
• Base Type: G9 (2-Pin / 9mm Spacing)
• Bulb Shape: T4 Capsule
• Dimensions: 43mm (MOL) x 14mm (Diameter)

Handling & Safety Tips

• Skin Oils: Do not touch the bulb glass with your fingers. Use a clean tissue or glove. Skin oils can cause the quartz to heat unevenly and crack the bulb during operation.
• Voltage Match: Ensure your fixture is rated for 120V. This is not a low-voltage lamp; connecting it to a 12V transformer will result in negligible light output.
• Dimming: Compatible with all standard incandescent/halogen dimmers.
• Replacement: If the integrated fuse trips, the lamp must be replaced. This is a safety feature that prevents the glass from shattering at the end of life.
