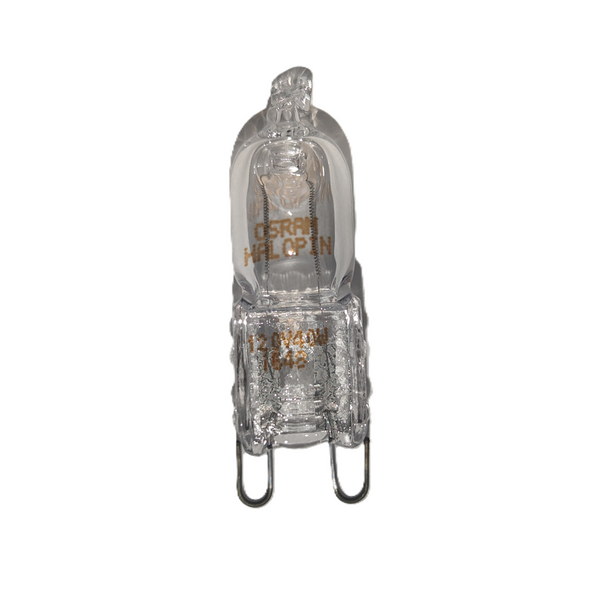

OSRAM HALOPIN | 40W G9 | 120V Clear Halogen Capsule

The Osram Halopin (64494) is a revolutionary compact halogen lamp that operates directly on mains voltage (120V) without the need for a transformer. This 40W capsule features a G9 plug-in base for simple handling and a unique bulb pinch technology that ensures a robust filament design. With a perfect CRI of 100 and a warm 2700K glow, it provides brilliant accent lighting while maintaining incredibly small dimensions. Built for safety, it includes an integrated fuse function (IEC 60432-2) and is UV-filtered and approved for use in open luminaires, allowing for sleek and minimalist fixture designs.

Product Overview

The Osram Halopin series redefined modern lighting by eliminating the bulky transformer from compact luminaires. Its T4 clear capsule design is exceptionally small, opening up "revolutionary" design options for slim chandeliers, wall sconces, and furniture lighting. The lamp produces a sparkling light that enhances the ambiance of any room, while its lower thermal output (compared to standard reference products) reduces heat stress on fixture components. Additionally, the integrated fuse function ensures the lamp shuts down safely at the end of its life, preventing damage to the socket or surrounding fixture.

• No Transformer Required: Direct connection to 120V mains power simplifies installation and reduces fixture cost.
• Advanced Pinch Technology: Provides a more robust filament structure for increased vibration resistance.
• Universal Burn Position: Can be operated in any orientation, providing total flexibility for fixture designers.
• Fully Dimmable: Seamlessly adjust light levels from 0 to 100% to create the perfect mood.

Technical Specifications

• Brand: Osram
• Series: Halopin
• Wattage: 40W
• Voltage: 120V
• Base Type: G9 (Plug-In Bi-Pin)
• Color Temperature: 2700K (Warm White)
• Color Rendering Index (CRI): 100 / Ra 100
• Initial Lumens: 490 lm
• Rated Average Life: 2,000 Hours
• Dimensions: 43mm (MOL) x 14mm (Diameter)
• Bulb Shape: T4 / Capsule
• Safety Standards: IEC 60432-2 (Fuse), IEC 60598-1 (Open Luminaire)
• ILCOS Code: HSGST/C/UB-40-120-G9-22

Installation & Safety Guide

• No Bare Hands: Do not touch the glass capsule with your fingers. Skin oils can cause the quartz to weaken and fail prematurely. Use a clean cloth or gloves during installation.
• Direct Fit: Simply push the G9 base into the socket. No twisting or screwing is required.
• Voltage Warning: Ensure the power is off before replacement. This is a mains voltage (120V) component.
• Fixture Rating: Approved for use in open luminaires, but always verify your fixture's maximum wattage rating before installing a 40W lamp.

Primary Applications

• Residential: Chandeliers, pendants, wall sconces, and bathroom vanity lights.
• Hospitality: Ambient and decorative lighting in hotels, bars, and restaurants.
• Furniture: Internal cabinet lighting, shelf displays, and task lighting.
• Retail: High-quality accent lighting for boutique displays.
