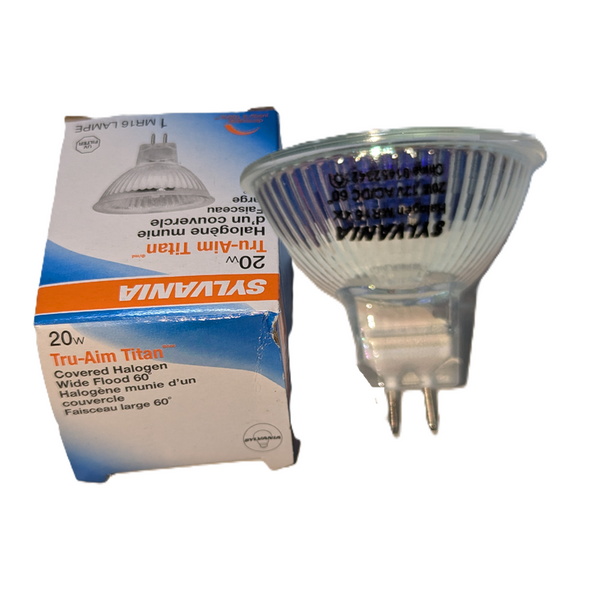

Sylvania 58302 20MR16/T/WFL60/C

The Sylvania Tru-Aim Titan® 58302 (20MR16/T/WFL60/C) Lamp is a professional-grade, low-voltage tungsten halogen reflector spot engineered for heat-sensitive retail display cases, museum artifact framing, hospitality accent tracks, and premium residential downlights. Delivering a wide, beautifully uniform 60° wide flood beam spread, this high-performance MR16 capsule provides a smooth 350 center beam candlepower (CBCP) of crisp 3000K warm white light. Outfitted with an industry-standard GU5.3 bi-pin base and an integrated clear protective glass cover lens, it features Sylvania's proprietary Titan long-life filament core to yield an extended 4,000-hour rated average service life.

ADL Supply Expert Application & Replacement Guide

The Sylvania 58302 low-voltage MR16 wide flood bulb is a premium facility maintenance standard specified heavily by luxury hotel engineers, retail visual curators, and electrical contractors. Featuring an advanced 60-degree broad-angle spread pattern, this module is engineered to eliminate narrow visual hot spots, delivering smooth area accents, wall washing uniform distributions, wall-cove lighting, and ambient downlighting highlights inside compact low-voltage tracks and directional spotlight housings.

Critical Dichroic Reflector Thermodynamics and Venting Notices: Unlike block-aluminum reflector lamps that drive heat forward onto targeted objects, Sylvania's Tru-Aim Titan modules incorporate a specialized **dichroic (interference) glass coating formulation**. This geometric coating filters infrared light, forcing approximately **66% of generated filament thermal energy backward through the rear of the lamp shell**, while casting only clean, cold visible light forward out the front cover lens. This thermal channel provides absolute protection for heat-sensitive retail stock, including fine chocolates, luxury cosmetics, clothing leathers, and valuable museum gallery canvases.

However, maintenance crews must ensure that track spot canisters and recessed housings incorporate open backend venting channels to safely vent this backward convective load. Trapping heat inside un-vented, closed cylinders will roast the internal GU5.3 ceramic socket base clips and cause early lead-wire shorts.

Detailed Product Specifications

• Brand: Sylvania (OSRAM Sylvania Group / Tru-Aim Titan® Series)
• Product Series Line: Low-Voltage Dichroic Reflector MR16 Enhanced Long Life Series
• Sylvania Order Code Catalog SKU: 58302
• Manufacturer Nomenclature Model: 20MR16/T/WFL60/C
• Ordering Component Reference: 20MR16WFL60-Titan
• Trade Industry ANSI Identification Code: BAB Certified Standard Match
• UPC / GTIN-12 Barcode Reference: 046135583025
• Core Technology Class: Low-Voltage Miniature Tungsten-Halogen Reflector
• Operational Wattage: 20 Watts
• Nominal Input Voltage Requirement: 12 Volts AC/DC (Step-down transformer circuit required)
• Initial Luminous Flux: 270 Lumens
• Center Beam Luminous Intensity: 350 Candelas (cd)
• Beam Spread Profile: 60° Wide Flood (WFL60 Class Grid)
• Color Temperature Configuration: 3000K Warm White Halogen Balance
• Color Rendering Index (CRI): 100 Ra (Absolute Light Quality Representation)
• Reflector Envelope Construction: Dichroic Interference Glass Facets (Backend Thermal Transmitting)
• Front Lens Treatment: Integrated Sealed Clear Protective Safety Glass Lens
• Base Type Configuration: GU5.3 Miniature Plug-In Bi-Pin Base (2-Pin Setup)
• Pin Spacing Pitch Metric: Exactly 5.3mm Pin Center-to-Center
• Maximum Overall Length (MOL): 1.75" Inches (44.5mm actual from base pins to lens apex)
• Bulb Nominal Diameter (DIA): 2.00" Inches Nominal MR16 (50.0mm actual reflector face width)
• Rated Average Lifespan: 4,000 Hours (Double the service life of standard standard 2,000-hr capsules)
• Chassis Burn Position Limit: Universal — Operates reliably in any mounting angle

Operation, Safety & Mounting Compliance

Low-Voltage Transformer and Dimming Controls

This 20-watt capsule operates strictly on low-voltage 12V lines driven by high-quality electronic or magnetic core-and-coil step-down transformers. Check your transformer nameplate under load to confirm total available wattage parameters safely accommodate the 20W continuous load draw. This module is 100% dimmable to low light levels—to prevent filament buzzing or flicker loops across the system, ensure that your wall dimmers are specifically certified for low-voltage lighting control (electronic low-voltage ELV or magnetic low-voltage MLV tracking, matching your transformer's internal circuit framework).

Handling Rules and Casing Maintenance

Never handle the outer glass casing or base plate with bare hands during installation sweeps. Human fingers automatically deposit microscopic alkaline body oils that fuse chemically to the quartz lens during rapid heating cycles. This containment creates localized hot spots, prompting envelope clouding, micro-fracturing, and accelerated pressure breakdown. Installers must execute re-lamping sweeps using clean cotton tech gloves, a microfiber lint-free wipe, or its protective cardboard wrapper sleeve. Meticulously wipe the bulb with isopropyl alcohol if skin tracking occurs. Let the track head cool down for 15 minutes before servicing components to prevent contact skin burns.

Commercial Equipment Industry Cross-References

• Philips : 20MR16/VWFL60 Clear / Heritage Long-Life Match
• Osram: 41860 VWFL / Decostar 51 20W 12V GU5.3 Wide Flood
• Ushio 1000004 BAB/60/FG
