Sylvania 58531 20MR16/IR/SP10/C – 20W | 12V | 3000K Warm White | 10° Spot (10) | GU5.3 Bi-Pin

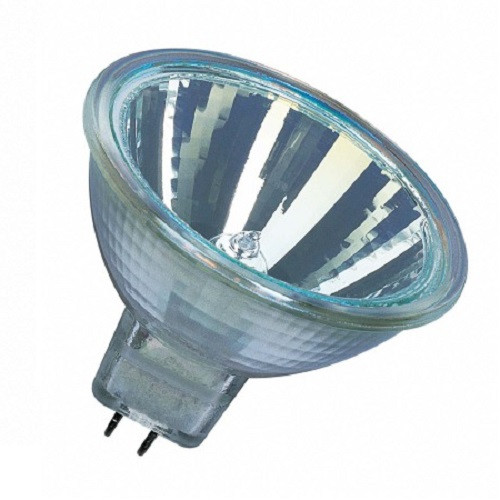

The Sylvania 58531 20MR16/IR/SP10/C is a 20W 12V 3000K Warm White MR16 halogen lamp in the Sylvania Tru-Aim IR (Infrared Reflecting) series with a 10° Spot (10) beam angle, GU5.3 Bi-Pin base, 5,000 hours rated life. Requires a compatible 12V low-voltage transformer — do not connect directly to line voltage.

Quick Specs

• Brand: Sylvania
• Series: Tru-Aim IR — Infrared Reflecting
• Sylvania Order Code: 58531
• Lamp Type: MR16 Halogen Reflector — Low Voltage
• Wattage: 20W
• Operating Voltage: 12V (Low Voltage — requires 12V transformer)
• Color Temperature: 3000K Warm White
• Initial Lumens: 200 lm
• Rated Average Life: 5,000 hours
• Base Type: GU5.3 Bi-Pin (2-Pin, 5.3mm spacing)
• Beam Angle: 10° Spot (10)
• Overall Diameter / MOL: 50mm diameter × 44.5mm (MOL)
• Burn / Operating Position: Universal
• Front Glass: Covered

Product Overview

The Sylvania 58531 20MR16/IR/SP10/C is a 20W 12V MR16 halogen lamp delivering 3000K Warm White output with a 10° Spot (10) beam pattern. The IR (Infrared Reflecting) series uses a dichroic filter coating that reflects infrared energy back through the filament, reducing heat at the beam face while maintaining the same lumen output at lower wattage compared to standard lamps. Ideal for heat-sensitive merchandise, food display, and retail accent applications. A narrow spot beam provides high-intensity, focused illumination for precise accent and display highlighting.

Transformer required: This is a low-voltage (12V) lamp. It requires a compatible magnetic or electronic 12V transformer. Do not connect directly to 120V or 240V line voltage.

Applications

• Accent and display lighting – Precision accent lighting for artwork, sculpture, jewelry showcases, and architectural feature highlighting.
• IR technology — heat-sensitive merchandise – Infrared reflecting technology reduces heat at the beam face — ideal for food display, floral, and heat-sensitive merchandise.
• Retrofit replacement – Drop-in replacement for MR16 GU5.3 fixtures. Confirm beam angle and wattage before ordering.

Safety and Installation

• 12V transformer required. This lamp operates at 12V only. Connecting to 120V or 240V line voltage will destroy the lamp and may cause fire or injury.
• Do not touch the lamp envelope with bare hands. Skin oils cause hot spots leading to premature failure. Use clean gloves or a lint-free cloth.
• Allow 15-minute cool-down before handling.
• Use only in enclosed or open fixtures rated for MR16 lamps.

Ordering Information

• Brand: Sylvania
• Series: Tru-Aim IR
• Sylvania Order Code: 58531
• ANSI Code: —
• UPC: —
• Wattage / Voltage: 20W / 12V
• Beam Angle: 10° Spot (10)
• Base: GU5.3 Bi-Pin
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Compliance

• Halogen lamp — no mercury content. Standard electronic waste disposal applies.
• Verify RoHS compliance with Sylvania specification sheet.

ADL Supply recommends confirming all specifications with the Sylvania product data sheet prior to installation.
