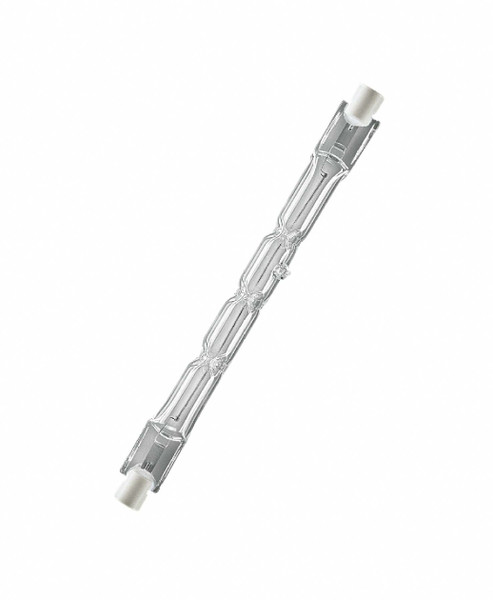

OSRAM HALOLINE ECO | 400W R7s | 230V Double-Ended Halogen

The Osram 64702 ECO (Haloline) is a high-performance, double-ended halogen lamp designed for powerful general and accent lighting. Delivering a massive 9,000 lumens, this 400W energy-saving lamp is a direct, more efficient replacement for the standard 500W Osram 64706. It features an R7s recessed single contact base and a compact 114.2mm length, making it ideal for large-scale illumination in floodlights, prestigious hotel lobbies, and public buildings. With its perfect 100 CRI and warm 2950K glow, it ensures absolute color accuracy and a welcoming atmosphere, all while reducing CO2 emissions and thermal output compared to traditional reference products.

Product Overview

The Osram Haloline ECO series provides brilliant "ECO" accent lighting without the need for a transformer. By optimizing the halogen cycle, this 400W bulb achieves the light output of traditional 500W lamps while consuming less energy. Its clear T12 bulb finish and linear design are perfect for outdoor floodlights, shop windows, and high-ceiling hospitality environments. Unlike LED alternatives, this halogen source is 100% dimmable across its entire range and maintains an ideal CRI of 100, ensuring that architectural details and products are showcased with natural, vibrant clarity. Furthermore, it contains no mercury, allowing for safe and convenient disposal.

• Direct Replacement: Seamlessly replaces the standard Osram 64706 lamp.
• Eco-Efficiency: Reduced CO2 emissions and lower thermal output for sustainable operation.
• Instant Brightness: Reaches 100% light output immediately upon being switched on.
• Versatile Use: Suitable for indoor prestigious applications and rugged outdoor garden or pathway lighting.

Technical Specifications

• Brand: Osram
• Model: 64702 ECO (Haloline)
• Wattage: 400W
• Voltage: 230V
• Base: R7s (Recessed Single Contact)
• Luminous Flux: 9,000 Lumens
• Color Temperature: 2950K (Warm White)
• CRI: 100 / Ra 100
• Rated Average Life: 2,000 Hours
• Dimensions: 114.2mm (MOL) x 12.0mm (Diameter)
• Finish: Clear
• Energy Efficiency Class: C

Installation & Safety Guide

• Voltage Match: Ensure your fixture is rated for 230V operation; no external transformer is required for this line-voltage lamp.
• Quartz Care: Do not touch the glass with bare hands. Skin oils can cause the quartz to weaken and lead to premature failure. Use a clean cloth or gloves during installation.
• Alignment: Ensure the R7s pins are properly seated in the spring-loaded sockets to prevent arcing.
• Heat Management: Operates at high temperatures; allow the lamp to cool completely before replacement or cleaning.

Primary Applications

• Commercial: Entrance halls, restaurants, hotels, and retail shops.
• Public Spaces: Offices, public buildings, and traffic areas.
• Outdoor: High-powered garden lighting, pathway illumination, and security floodlights.
• Residential: Prestigious indoor accent lighting and large-area floor lamps.
