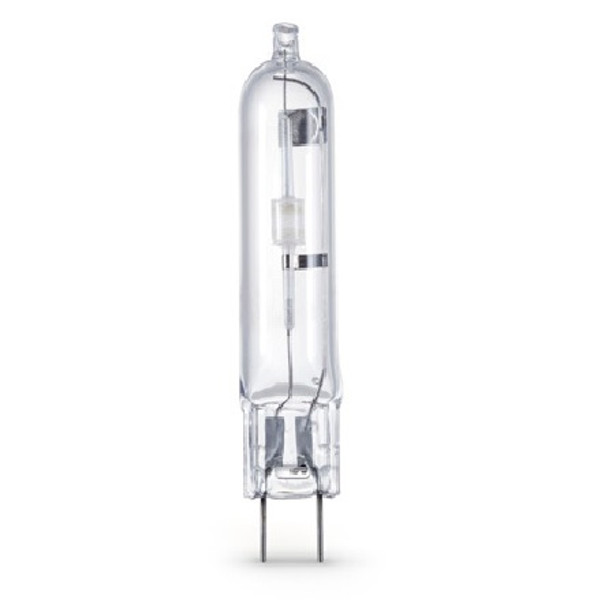

GE 26348 CMH35/T/UVC/942/G8.5

Product Details

• Lamp Wattage 35W.
• Bulb Designation T4.5

• Base Type G8.5 Bi-Pin

• Burn Position Universal
• Rated Life 15,000
• Initial Lumens 3200

• Color Temp CCT 4200K

• UV Control
• CRI 88 (+)

• Volts 90
• Max. Base Temp. 250º
• Max. Bulb Temp. 400º
• LCL 30mm ± 2mm
• MOL 3.37in x DIA 0.56
• UPC #043168926966
• Universal Burn Position

• Fixture Requirement Enclosed
• Max. Fixture Voltage-Rise 5 Volts
• Ballast Requirement ANSI M130


Additional Information

• Highly efficient Reduce energy costs by $33.00-$260.00 per lamp*

• 4 times more lumens per watt than comparable incandescent or halogen lamps

• Color uniformity lamp-to-lamp ConstantColor CMH-GU6.5 lamps provide a consistent "white look"
• for color-critical applications such as retail display Excellent color rendering Up to 90 CRI

• for setting the desired look for the application.

• Long life Up to 12,000 hour rated life provides for extended relamp cycles and reduced maintenance costs

• Point source of light Compact quartz envelope allows for terrific fixture optics to maximize system efficiency

• Replacement Ballast & G8.5 Sockets Available

• Recommend Ballast GE #63044 GEMH39-MSJ-MV Or GE #63045 GEMH39-MSF-MV


Cross Refernence

• Philips MasterColor CDM-TC 35W/942 G8.5
• Osram HCI-TC 35/942 NDL PB G8.5

• ILCOS MT/UB-35/42/1B-H/E-G8.5-13/57


R Warning:

This lamp can cause serious skin burn and eye inflammation from shortwave ultraviolet radiation
if outer envelope of the lamp is broken or punctured, and the arc tube continues to operate.
Do not use where people will remain for more than a few minutes unless adequate shielding
or other safety precautions are used. Certain types of lamps that will automatically
extinguish when the outer envelope is broken or punctured are commercially available.
