GE 19264-LU70-SBY-XL

Product Overview

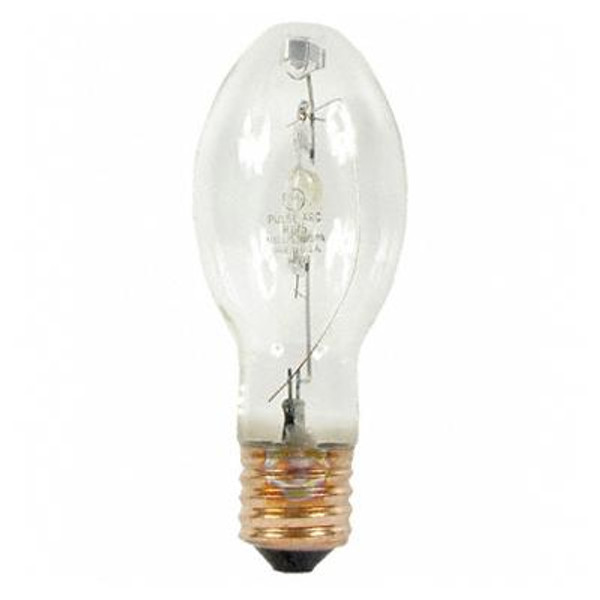

GE 19264 LU70/SBY/XL — 70W Standby Longlife HPS Lamp, E39 Base

The GE 19264 LU70/SBY/XL is a 70-watt Standby Longlife Lucalox® HPS lamp with dual arc tubes with a ED23.5 bulb and E39 Mogul Screw base, designed for HPS ballast circuits rated ANSI S62. It delivers 6,400 initial lumens at 2000K and is rated for 40,000 hours.

WATTAGE

70W

HPS / HID

LUMENS

6,400 lm

Mean: 5,050 lm

CCT

2000K

Warm Amber

BASE

E39

Mogul Screw

RATED LIFE

40,000 hrs

Average Life

Technical Specifications

GE Order Code	19264
GE Model / Description	LU70/SBY/XL
Lamp Type	High Pressure Sodium (HPS) — Lucalox
Bulb Shape	ED23.5
Base Type	E39 Mogul Screw
Burning Position	U — Universal (any burning position)
Fixture Enclosure Rating	O — Open or enclosed fixture (per GE datasheet)
Maximum Overall Length (MOL)	7.75"
Light Center Length (LCL)	5.00"
Wattage	70W
ANSI Ballast Type	S62
Case Quantity	12
Rated Life	40,000 hours
Initial Lumens	6,400 lm
Mean Lumens	5,050 lm
Color Temperature	2000K
CRI	22
Lamp Finish / Additional Info	Clear, Standby Longlife, Dual Arc Tube
UPC / EAN	43168192644
Mercury Content	Contains mercury — dispose per local regulations.

Product Overview

The GE LU70/SBY/XL is a 70-watt Standby Longlife Lucalox® HPS lamp with dual arc tubes. It ships with a ED23.5 bulb envelope on a E39 Mogul Screw base and is built to operate on an HPS ballast rated ANSI S62. Output is 6,400 initial lumens (5,050 mean lumens) at 2000K and 22 CRI, with a warm amber HPS color.

Standby Longlife lamps contain an extra arc tube that provides light instantly after a momentary power interruption and returns to 80% light output in 1–2 minutes. They operate on standard HPS ballasts and auxiliary equipment.

Not recommended for: retail displays, color-critical inspection environments, or any application requiring CRI above 22.

Compatible Applications

Typical uses (per GE): Industrial, roadway, security, and hard-to-reach sockets.
Fixtures wired for an HPS ballast rated ANSI S62 with a E39 Mogul Screw socket.
Direct replacement for existing 70W HPS lamps with the same base and ballast rating. Verify ballast compatibility before ordering.
Burning position: U (Universal — any burning position).

Before Ordering — Verify

ANSI / Ballast Code: Confirm the existing lamp or ballast label matches S62.
Wattage: Confirm the fixture is rated for 70W.
Base Type: Confirm the socket matches E39 Mogul Screw.
Ballast Compatibility: This lamp requires an HPS-rated ballast and ignitor. It will not operate on a metal halide or mercury vapor ballast.
Burn Position: HPS lamps are not position-sensitive — no orientation restriction.
Physical Fit: Confirm lamp shape (ED23.5), length (7.75" MOL), and clearance against the existing lamp or fixture manual.
Confirm order code 19264 (GE LU70/SBY/XL) exactly matches the lamp or ballast label on your existing fixture before purchasing a replacement.
Case pack quantity is 12; confirm this meets your order needs.

Safety and Handling Guidelines

Correct Ballast Required: Use only with an HPS-compatible ballast and ignitor rated for this lamp. An incompatible ballast can cause lamp failure or fixture damage.
Vacuum Jacket: This is a vacuum jacket lamp and may implode if broken. Wear safety glasses and gloves when installing or removing the lamp, and allow it to cool fully first.
Sodium Content: The lamp contains sodium — avoid skin contact with broken pieces (chemical burn risk).
Warm-Up / Restrike: Per GE, HPS lamps take about 3–4 minutes to reach 90% light output after starting, and about 1 minute after a brief power interruption.
Approved Fixtures Only: Install only in fixtures rated for the listed lamp type, wattage, and operating position; do not use if the outer glass is scratched or broken.
Mercury Content: Contains mercury. Do not dispose of in regular trash; recycle through an approved lamp recycling program in accordance with federal, state, and local regulations.

Compliance

Contains mercury — subject to applicable lamp recycling and disposal regulations. California, Washington, and other states may have mandatory take-back or handling fee requirements.
Verify additional certifications (UL, Title 20, Prop 65) with the GE specification sheet prior to use in regulated installations.
